| Prod Model: |
XB-OTS-209A |
| Usage: |
Paper Testing Instrument, Bursting Tester |
| Design Criteria: |
JIS-L1004, L1018, L1031, K6328, P8131, P8112 |
| Accuracy: |
< 0.5% |
| Pressure Range: |
250~5600kpa |
| Oil: |
100% Silicon Oil |
| Opening In Upper Clamp: |
31.5 +- 0.05 mm Diameter |
| Material Of The Ring: |
Stainless Steel SUS304 |
| Sensing Method: |
Pressure Transmitter |
| Speed Of Compression: |
High Pressure 170+- 10ml/Min |
| Unit (Sitchable): |
Kpa, Psi, Kg/Cm^2 |
| Type: |
Strength Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description

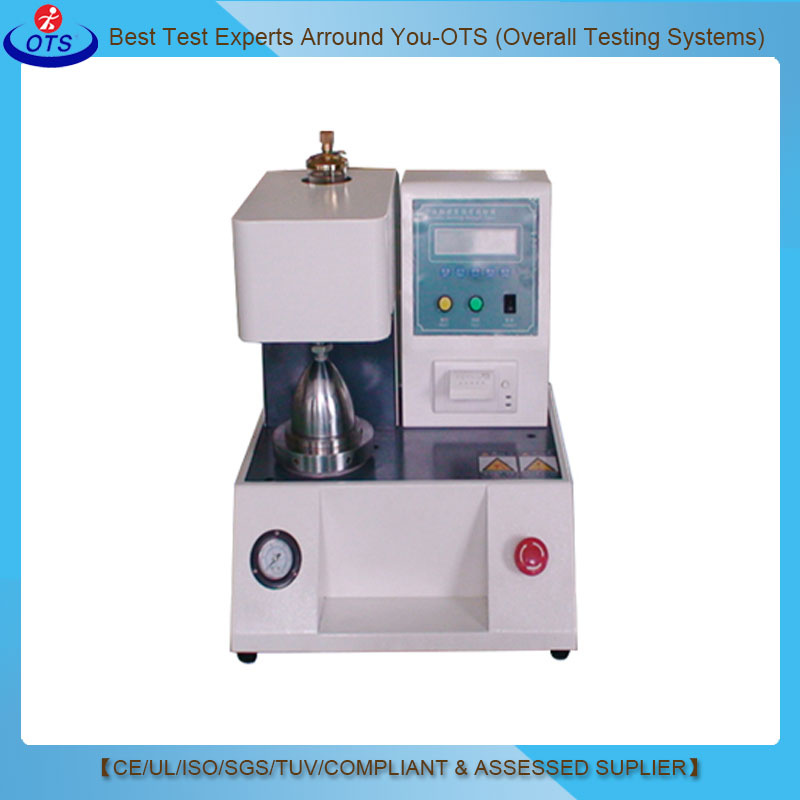

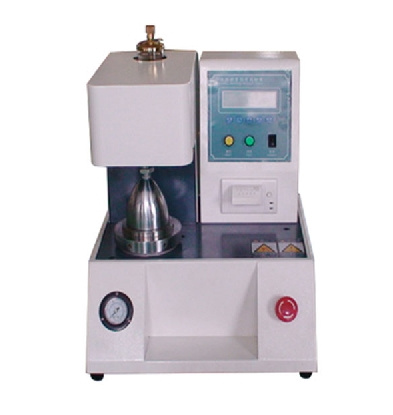

Electronic Digital Automatic Fabric Bursting Strength Tester
1. One year free after-sale service
2. High quality with reasonable priceModel: XB-OTS-209A Introductions: Paper Bursting Strength Test Machineis fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box;The type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.Features of Bursting Strength Testing Machine1. Very fast testing cycle gives fast feedback to the production
2. With automatic test grip instead manual hold the sample
3. Improvement of the operational safety regulations >> equipped a cover between plants to protectthe operator's hand during testing
4.Built-in LED light on the cover
5. It is applicable to test bursting strength for paperboard.
6. Power protection ensure automatic record when power cut off.
Design standards: JIS-L1004, L1018, L1031, K6328, P8131, P8112 Technical Parameters:| Capacity (Optional) | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
| Unit (switchable) | Kpa, psi, kg/cm^2 |
| Accuracy | ± 0.5% |
| Pressure Range | 250~5600kpa |
| Load Resolution | 0.001 kgf/cm2 |
| Speed of Compression | High Pressure 170± 10ml/min |
| Specimen Clamping Force | >690kpa |
| Oil | 100% silicon oil |
| Sensing method | Pressure Transmitter |
| Indicating Method & Display | LCD |
| Material of the Ring | Stainless Steel SUS304 |
| Opening in Upper Clamp | 31.5 ± 0.05 mm Diameter |
| Opening in Lower Clamp | 31.5 ± 0.05 mm Diameter |
| Motor | Anti-vibration Motor 1/8 HP |
| Operation Method | Automatic |
| Dimension (L*W*H) | 445*425*525 mm |
| Weight | Approx. 70 kg |
| Power | AC220± 10%, 50 Hz (customer specific) |
| Power Capacity | 120W |
| Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets |
| Optional Configuration | Printer, Air Pump |
| Accessories | Rubber membrane
Piece wrench
Aluminum calibration foils
Silicone oil |
General maintenance:
1. Clean: Maintain the machine cleanliness at any time, wipe the machine with cotton to keep it clean before and after each use.
2. Antirust:Spraying the rust oil on the surface of metal part of the machine weekly (2 hours after injection wipe)
3. Lubricating oil: Endorsement lubrication oil on transmission components in machines (such as Screw) monthly ( use an ordinary oil can).
4. Check the gear reducer oil should fill or replaced each half year.
5. Glycerol should be completely replaced every half year.
