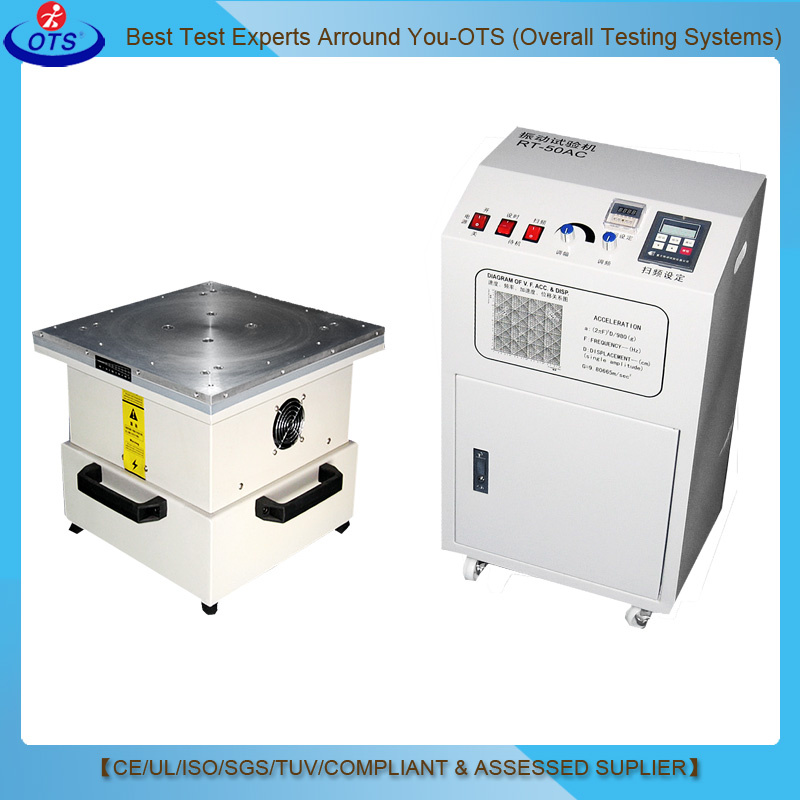

High Freguenuy Vibration Test Table

Prod Model:	XB-OTS-EV
Max.Load(Kg):	40kg
Max.Acceleration(G):	17
Amplitude(mm):	0~5
Direction Of Vibration:	Vertical or Leve
Warranty:	One Year
Certificate:	Ce ISO
Type:	Vibration Testing Machine
Weight:	0-100Kg
Power Source:	AC220V

Product Description

High Freguenuy Vibration Test Table


Applicable Industries:
Universal Vibration Test Machine  is widely applicable to the defense, aerospace, communications, electronics, automobiles, household appliances and other industries. The type of equipment used to detect early failure, to simulate the actual condition assessment and structural strength test, and a wide range of applications, applicable wide test results significantly reliable.

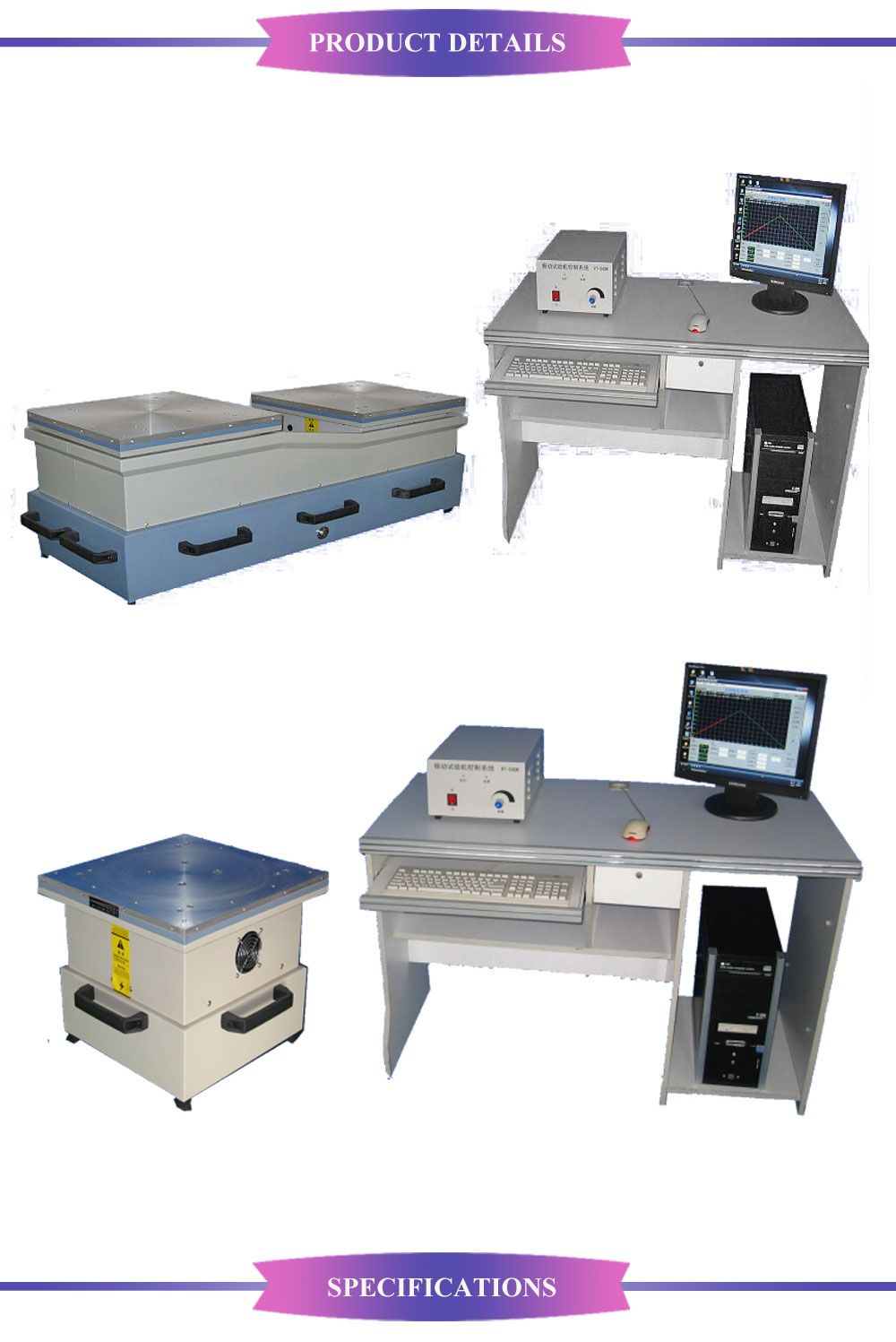

Vibration test machine:
1. User-friendly operation and control, using professional monitoring and control software manipulation to make the equipment work more stable, more reliable.
2. Machine using quality stainless steel for body, installation is simple, smooth running, large load.
3. Sweep and fixed-frequency mode of operation, to meet the testing requirements of different industries.
4. Ability of anti-magnetic interference.
5. Safe and reliable protection function

Features :
1. Digital instrument display the vibration frequency synchronization squelch belt drive the test fixture using rail,easy of operation,safety,the machine base is made of heavy duty channel with damping pads     easy installation,smooth running,without having to install anchor bolts,DC motor speed,smooth running  load capability,the rotary vibration(commonly known as the Happy Valley-type),in line with European    standards for the transport.
 2.Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control software, test of the whole process of handling and output.
 3.Display functions: dynamic display test curves, multi-Dan, on the number of data.
 4. Curve recorder features:  real- time record of the test data, test data automatically, the test results can be stored, printed.


Specification :

Model Number		XB-OTS-S60
Power:		AC 220V/50Hz   ±2%
Operating ambient temp:		0~+45ºC
performance	Max.Load(kg):	40kg
	Frequency range(Hz):	3~200Hz
	Sweep-frequency range(Hz):	3~200Hz
	Amplitude(mm):	0~5mm
	Vibration direction:	vertical and horizontal
	Set time range(s):	1~350000 s
	Working table size L.W.H(mm)	450×450×43mm
	Machine size L.W.H(mm):	1300×570×450mm
	Control chamber size L.W.H(mm:	420×300×750mm
	Power(KVA):	2.8
	Remark

 Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control software,test of the whole process of handling and output.
Display functions: dynamic display test curves, multi-Dan, on the number of data.

Curve recorder features:real-time record of the test data,test data automatically,the test results can be stored, printed

Corresponding Standard:
IEC 68-2-6(FC),GB2423, JJG189-97, GB/T13309-91


Packing & Shipping

1.Strong standard wood case, inner plastic films wrapped for Vibration Testing Machine

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDECustomer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair


FAQ


1. How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do   and the required specification.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working   days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your   request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange   hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,   Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so   on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts   change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing   machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging   - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
