ISO Ots Digital Simulation Standard Transport Vibration Table

Prod Model:	XB-OTS-208A
Time Setting:	0-999hours
Rotation Speed:	150-300rpm
Vibration Model:	Rotary Vibration (Vertical and Horizontal)
Amplitude Range:	25.4mm(1 Inch) Meet Ista/En71
Max .Load:	60kg (Can Be Customized)
Transmit Approach:	60~300rpm Cycle/Min (Adjustable)
Design Criteria:	25 ~ 40km / H
Standard:	En71,ANSI,UL,ASTM Ista
Delivery Time:	15 Days After Receive The Deposit
Type:	Vibration Testing Machine
Weight:	100-500Kg
Power Source:	AC220V

Product Description

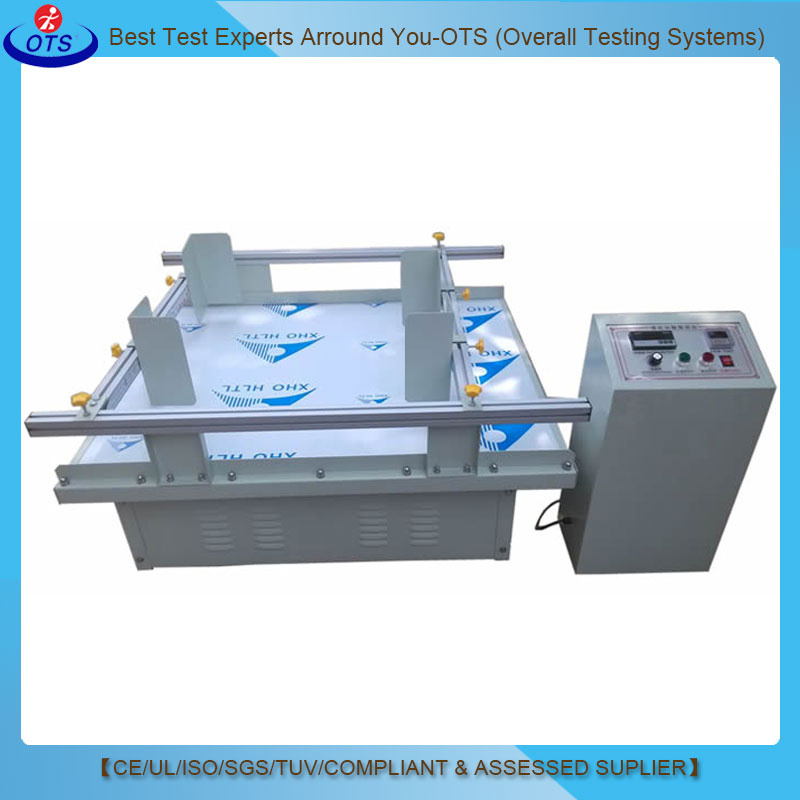

ISO OTS Digital Simulation Standard Transport Vibration Table

Model: XB-OTS-208A

Introductions:
This product is for a variety of packaging materials, PC boards, electrical products .
as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.... simulate the  transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.



Features:
1. Low price, the price is only 10% of similar products in the United States;
2. Digital instrument display vibration frequency;
3. Synchronous mute belt drive;
4. The specimen is clamped with rail, easy to operate, safe;
5. The base of the machine adopts heavy-duty trench with damping pad, easy installation, smooth operation, no need to install the foot screw;
6. DC motor speed, smooth operation, strong load capacity;
7. Rotary vibration (commonly known as racing), in line with European and American transport standards;



Design standards: EN71 ANSI, UL, ASTM ISTA



Analog Transport Vibration Test Bench Test Standard Requirements for Equipment:
1. ISTA test standard is the American Transportation Association standard
2. ASTM test standards are American Materials Association standards



Two standard requirements for simulated transport vibration are:
1. Amplitude is 25.4mm (1 inch, fixed)
2. Frequency 1.5-5Hz (or 100-300 r / min adjustable)
3. The test basis is: T = 14200 / CPM (based on the total number of vibration is 14200 times)



 ISTA / ASTM standards related test methods table:

Test Speed (CPM)	Corresponding frequency (Hz)	testing time (M)
150	2.5	95
180	3.0	79
210	3.5	66
240	4.0	60
270	4.5	53
300	5.0	48

 Technical Parameters:

Frequency range	60~300RPM cycle/min (Adjustable)
Vibration mode	Rotary vibration (Vertical and horizontal)
Amplitude range	25.4mm(1 inch)   meet ISTA/EN71
Max .Load	60KG
Accuracy Grade	0.5
Simulation speed	25 ~ 40km / h
Working Table size(L*W)(mm)	1000*1200 mm
Digital speed	Accuracy is not greater than ± 3 rev / min
Work time setting range	0~999H99M
Speed display accuracy	1RPM cycle/min
Motor Power	1HP
Max.current	5A
Power	1 phase 220V 50Hz/60Hz
Overall dimensions	1255*1070*660 mm
Machine weight	125kg
Environmental conditions	temperature: 5 ~ 40 ºC, relative humidity ≤ 85%
Speed control mode	DC speed control or AC frequency control
*** Standard:  EN71,ANSI,UL,ASTM ISTA




Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for Transportation Vibration Testing Machine

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer



Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .
