| Prod Model: |
YTH-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Circulation: |
Sirocco Fan |
| Material: |
Stainless Steel |
| Insulation: |
PU&Fiberglass Wool |
| Internal Size: |
1000*1000*800 Mm |
| Humidity Range: |
20%-98%Rh |
| Certificatio: |
CE |
| Cooling: |
Imported Compressor |
| Temperature Range: |
-70°c~+150°c |
| Warranty: |
12 Months |
| Service: |
Customization |
| Type: |
Universal Testing Machine |
| Control: |
Controller |
| Power Source: |
AC220V; AC380V |
| Oil Cylinder Position: |
N/a |
Product Description

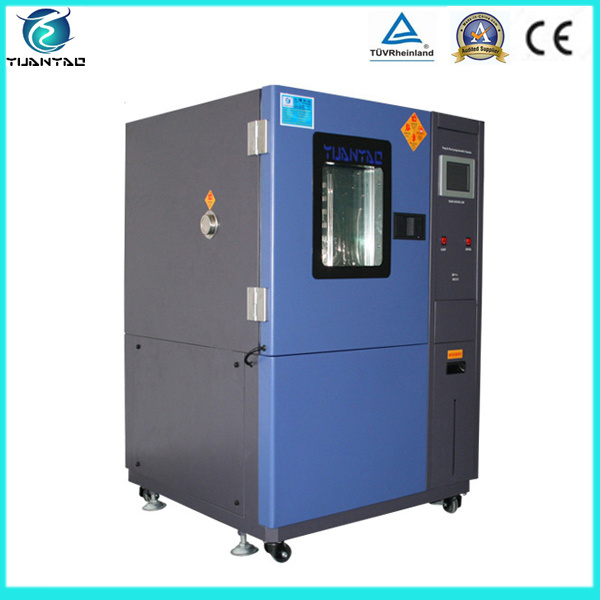

Temperature ang Humidity test chamber
Application
To test the fiber, LCD crystal, inductor, PCB, batteries, computers, mobile phones and other products whether can suit high temperature resistance, low temperature and moisture.
Package and Delivery
Package: Wooden cases, suitable for a long distance sipment
Delivery: In 15-20 working days after order confirmation
Specifation
1. Humidity range: 20%-98%RH
2. Circulation: Sirocco fan
3. Heating: High Speed Heater
4. Excellent performance, reasonable price
Feature
1. PID + SSR micro-computer control, operation easy and steady.
2. It could sign in 10patterns*100 steps. Each pattern can be executed up to 999 times, the maximum execution time of each steps reaches 99 hours and 59 minutes.
3. Adopt the liquid-crystal 3.1' controller, English display.
4. Equipped with 10 years memory device in case of power failure. There are 3 modes-hot, cold and stop for restarting the machine.
5. Can display temperature, humidity, current program and transferred into curves immediately.
If you are interested in the item, please contact me. Look forward to serving you.
| Model | YTH-080 | YTH-150 | YTH-225 |
| Internal Dim.(mm) W×H×D | 400×500×400 | 500×600×500 | 500×750×600 |
| External Dim.(mm) W×H×D | 900×900×1500 | 950×1500×1050 | 950×1650×1150 |
| Temperature Range | -70°C~+150°C |
| Humidity Range | 20%RH ~98%RH |
| Performance | Temp.&Humi.Constancy | ±0.2°C ±2.5%RH |
| Temp.&Humi.Uniformity | ±0.5°C;±4.0%RH |
| Indication resolution | 0.01°C;0.01%RH |
| Heat-at Time(20°C-HT) | °C | 100 150 | 100 150 | 100 150 |
| min | 30 40 | 30 40 | 30 45 |
| Pull-down Time(20°C-LT) | °C | 0 -20 -40 -60 -70 | 0 -20 -40 -60 -70 | 0 -20 -40 -60 -70 |
| min | 25 40 50 80 90 | 25 40 50 80 90 | 25 40 50 80 90 |
| Material | Exterior | Stainless steel plate+Powder Coated |

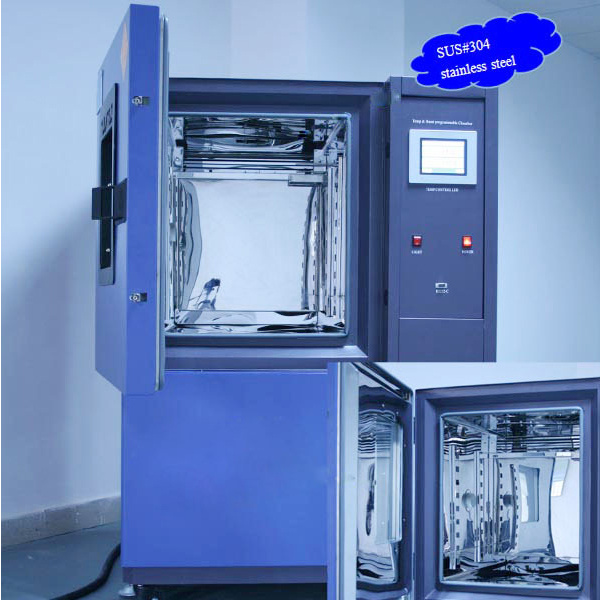

| Interior | SUS#304 stainless steel plate |
| Insulation | PU & Fiberglass wool |
| System | Circulation | Siroco fan |
| Heating | SUS#304 stainless steel high-speed heater |
| Humidifying | Surface evaporating system |
| Cooling | Airtight compressor+vaporator fins+air-cooling condenser |
| Dehumidifying | ADP Critical dewpoint cooling/dehumidifying method |
| Controller | Digital electronic indicatrs+S.S.R.With PIDautomatic calculation capabilty |
| Other Components | Vacuum glass inspectin window,cable port( 60mm),control status indicator lights,chamber
lamp,experment separation shelves (freely adjustable 2pcs) |
|
| Safety Devices | Ocerheating prevention circuit-breaker,compressor overload protection,control system overload protection,
humidifying system overheading drying out prevention,breakdown indicator light |
|
| Power Source(K.W.) | AC 1Ψ 220V;3Ψ380V 60/50Hz |
| 3.0 4.0 6.0 6.0 6.0 | 2.5 4.0 5.0 8.0 9.0 | 2.5 4.0 5.0 8.0 9.0 |
Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.

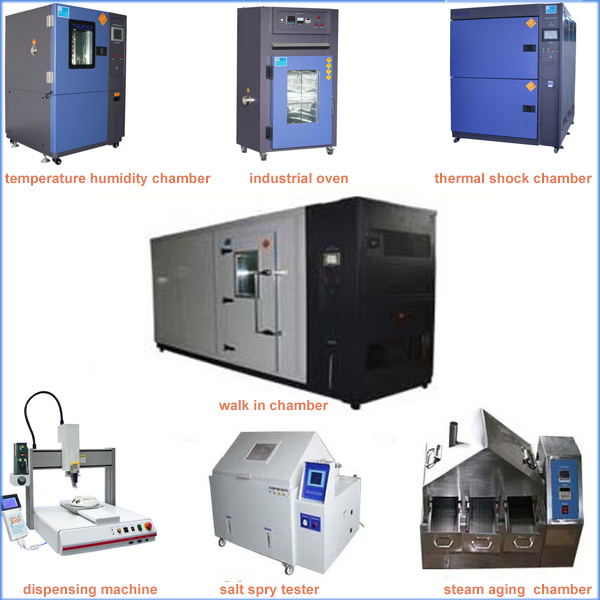

Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.
We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.
We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.
Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
