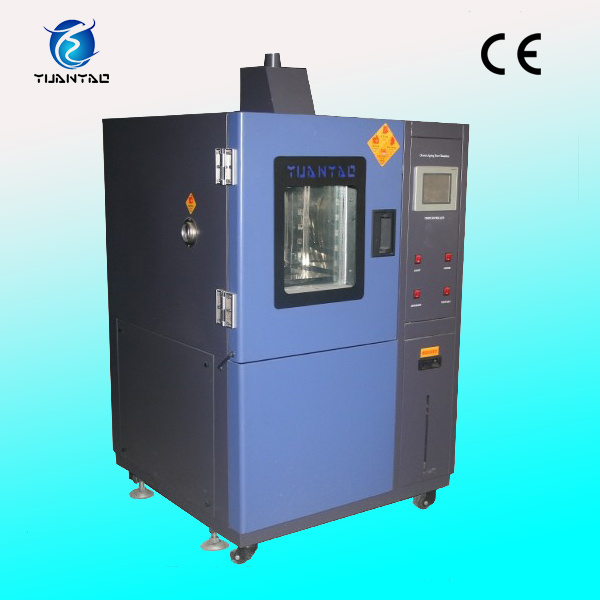

Ozone Aging Resistance Test Cabinet for Plastic

Prod Model:	YOT-225
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Size:	500*700*600mm
Ozone Generator:	Silent Discharge Ozone Generator
Volume:	225 Liters
Temp. Range:	Rt to 80degrees
Humi. Range:	45%Rh--98%Rh
Temp.&Humi. Fluctuation:	+/-0.2degree, +/-0.5%Rh
Temp.&Humi. Uniformity:	+/-1.5degree, +/-2.5%Rh
Ozone Concentration:	0 to 1000pphm or 500ppm
Interior Chamber Material:	SUS#304 Stainless Steel Plate
Exterior Chamber Material:	Stainless Steel Plate + Powder Coated
Type:	Universal Testing Machine
Weight:	100-500Kg
Power Source:	AC380V
Maxcapacity:	N/a
Load Way:	N/a
Loading Method:	N/a
Control:	Controller
Oil Cylinder Position:	N/a

Product Description

Ozone aging resistance test cabinet for plastic

Rubbers are particularly prone to ozone attack and exposure can cause a crazing effect on uncovered surfaces, eventually leading to cracking and facture. Ozone attack can also bring additives to the surface and cause the rubber compounds to separate.

Features

1.7'' Touch panel controller, simple and friendly menu
2. Unprecedented uniform exposure of all specimens using a rotating carousel
3. Closed-loop servo control ensures highly stable ozone concentration levels
4. Integrated ozone destructor with built-in safety interlocks
5. Ozone resistant wetted materials
6. With castors
7 Best after sales service: One year free parts maintenance.
8 Meet international test standards.
9 Customization is available & welcomed.

Technical parameters


Model			YOT-080	YOT-150	YOT225	YOT-408	YOT-800	YOT-1000
Internal Dim.W×H×D(mm)			400×500×400	500×600×500	500×750×600	600×850×800	1000×1000×800	1000×1000×1000
External Dim.W×H×D(mm)			900×1450×950	950×1500×1050	950×1650×1150	1050×1750×1350	1450×1900×1350	1450×1900×1550
Temperature Range			RT to 80ºC
Humidity Range			45%HR -- 98%HR
Performance	Temp.&Humi fluctuation		±0.2ºC,±0.5%RH
	Temp.&Humi uniformity		±1.5ºC,±2.5%RH when RH is ≤75%, ±4%RH when RH is over 75%(tested with empty chamber, 30mins after stabilization)
	Indication Resolution		0.01ºC,0.01%RH
	Ozone concentration		0--1000PPHM or 500ppm
	Ozone control accuracy		±10%
	Ozone way		Static emissions
	Sample rotating speed		1 times/minute
Material	Exterior		Stainless steel plate+Powder Coated
	Interior		SUS#304 stainless steel plate
	Insulation		PU & Fiberglass wool
	Ozone analyzer		Imported ozone density analyzer
	Ozone generator		Silent discharge type ozone generator
Systems	Circulation		Sirocco fan
	Heating		SUS#304 stainless steel high-speed heater
	Humidifying		Surface evaporating system
	Cooling		Imported compressor+finned vaporator+air-cooling condenser
	Dehumidifying		ADP Critical dewpoint cooling/dehumidifying method
	Controller		Digital electronic indicatrs+S.S.R.With PID automatic calculation capabilty
Accessories			Vacuum glass inspection window, cable port(50mm), control status indicator lights, chamber lamp, loading shelves(2pcs for free)
Safety devices			Overheating circuit-breaker, compressor overload protection, control system overload protection, humidifying system overheating protection, breakdown indicator light.
Power(K.W.)			AC 1Ψ 220V,3Ψ380V 60/50Hz
Customization			Customization of inner chamber size,temperature&humidity range,etc.
