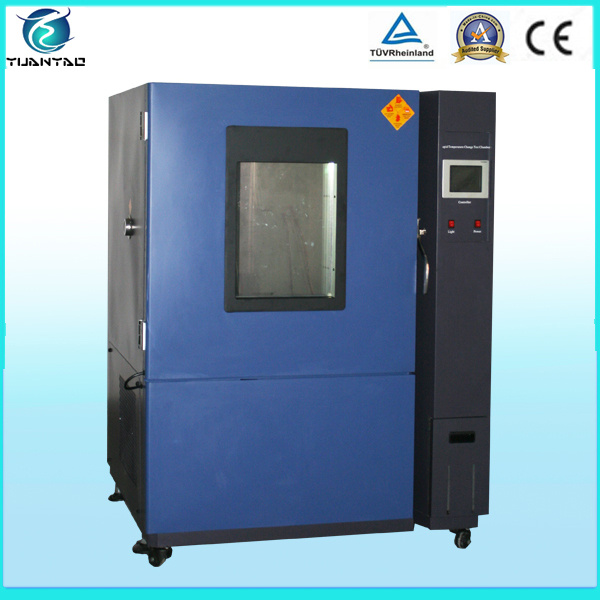

Fast Change Rate Temperature Cycling Test Cabinet

Prod Model:	YICT-225
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Size:	500*750*600mm
External Size:	1600*2030*1750mm
Volume:	408 Liters
Temp. Range:	-40degrees---+150degrees(Ks)
Temp. Rapid Change Range:	-40degrs--+85degrs
Heating&Cooling Rate:	3degrees/Min
Temp. Fluctuation:	+/- 2 Degree
Temp. Uniformity:	+/-1.5degrees
Interior Chamber Material:	SUS#304 Stainless Steel Plate
Exterior Chamber Material:	Stainless Steel Plate + Powder Coated
Weight:	500-1000Kg
Power Source:	AC380V
Type:	Fast Temperature Freezing Heating Test Equipment
Control:	Controller

Product Description

Fast change rate temperature cycling test cabinet

Application:

Fast change rate temperature cycling test cabinet simulates the changed environment of test temperature with rapid change rate based on linear or non linear, which is used to detect the resistance ability of electronic, automobile, rubber, plastics, aerospace science and technology, military technology and advanced communication equipment and other products in the heat and cold conditon, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.

Feature:

1 New design, easy operation.

2 Imported LCD touch controller.

3 Uniform air supply cycle system.

4 Long axis motor is vertically installed on the top.

5 Bright and spacious observation window.

6 Advanced security protection device

7 Rapid heating-up and heating-down temperature

8 Best after sales service: One year free parts maintenance.

9 Meet international test standards.

10 Customization is available & welcomed.


Welcome to enquire and purchase!

Specification
Model				YICT-225	YICT-306	YICT-408	YICT-800	YICT-1000
Internal Dim.W×H×D(mm)				500×750×600	600×850×600	500×850×800	1000×1000×800	1000×1000×1000
Temperature Range				-70ºC--  -150ºC(KS); -40ºC--   -150ºC(KL); +20ºC--  -150ºC(KR)
Rapid Changes Temp.Range				-70ºC;-50ºC-- +85ºC(KS),-40ºC; -20ºC--  +85ºC(KL),-20ºC; 0ºC-- +85ºC(KR)
Heating & cooling rate				3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min
Ferformance		Temp.Constancy		±2.0ºC
		Temp.Constancy		±1.5ºC
		Indication Resolution		0.01ºC
		Heat-up Time		-70ºC--  -150ºC in 60min;  -40ºC--  -150ºC in 50min;   +20ºC--  -150ºC in 35min
		Pull-down Time		+20ºC--  -70ºC in 70min;  +20ºC--  -40ºC in 55min;   +20ºC--  -20ºC in 35min
Material		Exterior		Stainless steel piate+powder Coated
		Interior		SUS#304 stainless steel piate
		Insulation		PU & Fiberglass wool
Systems		Cirulation		Siroco fan
		Heating		Heater;stainless-gang Fin-type heat pipe heat pipe heating mode of air circulation
		Cooling		Airtight compressor+vaporator fins+air-cooling condenser
Other Components				Vacuum glass inspection window, cable port(ø 60mm),control status indicator lights,chamber lamp, experiment separation shelves(freely adjustable 2pcs)
Sevey Devices				No fuse overload protection, the compressor overheating,over-current, over-pressure,dry heat, inside the over-temperature warning system
Power Source[K.W.]				AC 3Ψ 380V 60/50Hz

Except fast change rate temperature cycling test cabinet, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
