| Prod Model: |
YBT-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Capacity: |
500L |
| Lamp: Bunsen Lamp: |
ID 9.5mm+/-0.5mm, About 100mm to Air Inlet Port |
| Bunsen Lamp Shape: |
Round Lamp Socket/S,S.S Fish Tail Lamp Socket |
| Lamp Tilt Angle: |
0/20/45/90degrees |
| Ignition And Buring Time: |
1s-999.9s |
| Repeate Ignition Times: |
1-9999times |
| Flame Height: |
20-175mm |
| Control Type: |
Button Type |
| Customization: |
Available |
| Power Supply: |
AC 1 Phase 220V 50Hz |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Type: |
Veritical Flame Test Cabinet |
| Oil Cylinder Position: |
N/a |
Product Description
Introduction and application:

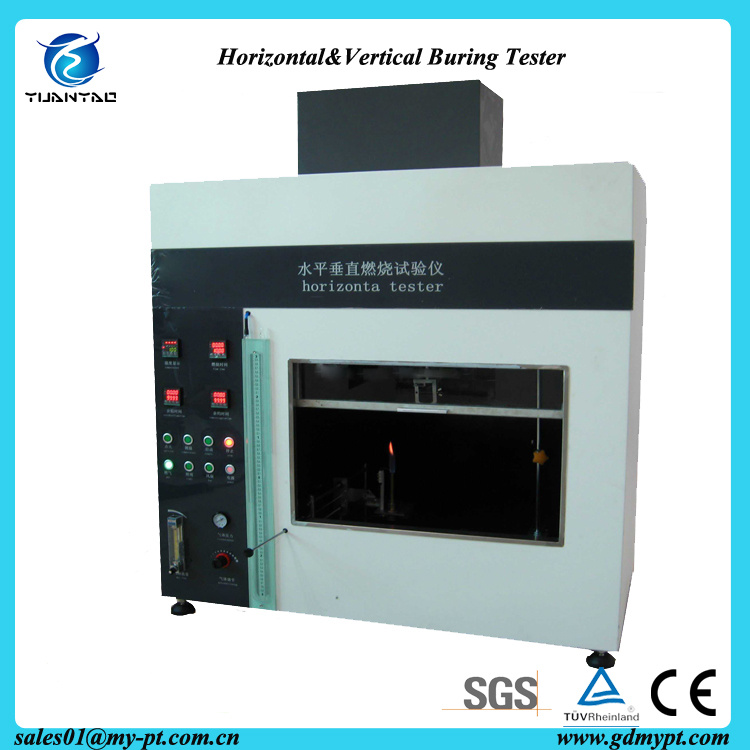

Veritical flame test cabinet for fireproofing materials is used to ignite light source the specimen in horizontal and vertical direction placed, and evaluate the combusion performance of the specimen according to measure the linear combustion speed(horizontal method) or flaming and flameless combusion time(vertical method).
Features:
1. Lamp: Bunsen lamp, ID 9.5mm+/-0.5mm, about 100mm to air inlet port
2. Bunsen lamp shape: round lamp socket or stainless steel fish tail shape lamp socket(changeable)
3. Lamp tilt angle: 0°, 20°,45°, can fast fix, max. stroke can reach 15cm
4. Ignition and buring time: 1s-999.9s
5. Repeate ignition times:1-9999times(digital display and set)
6. Test area volume: 0.5m3, black background
7. Flame height: 20-175mm
8. Power supply: AC 1 phase 220V 50/60Hz 500W
Test standard
IEC 60950:1999,UL 94, IEC 707, IEC 695-2-2 , ISO1210:1992, ISO9772-2001,UL746C and other equivalent test standard.
Any be interested, please direct contact MS Angela Cheng for help, I will be here waiting for you!
Many thanks for your attention!
