| Prod Model: |
YSA-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test Basket Size: |
100*540*260mm with 4 Drawers |
| External Size: |
760*540*340mm |
| Temp. Range: |
R.T. +10 Degrees to 98 Degrees |
| Temp. Accuracy: |
+/-0.3degree |
| Temp.Resolution: |
+/-0.1degree |
| Heat Up Time: |
45 Mins |
| Insulation: |
PU&Fiberglass Wool |
| Color: |
Stainless Steel |
| Interior Chamber Material: |
SUS#304 Stainless Steel Plate |
| Exterior Chamber Material: |
Stainless Steel Plate + Powder Coated |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Steam Ageing Endurance Cabinet |
| Oil Cylinder Position: |
N/a |
Product Description

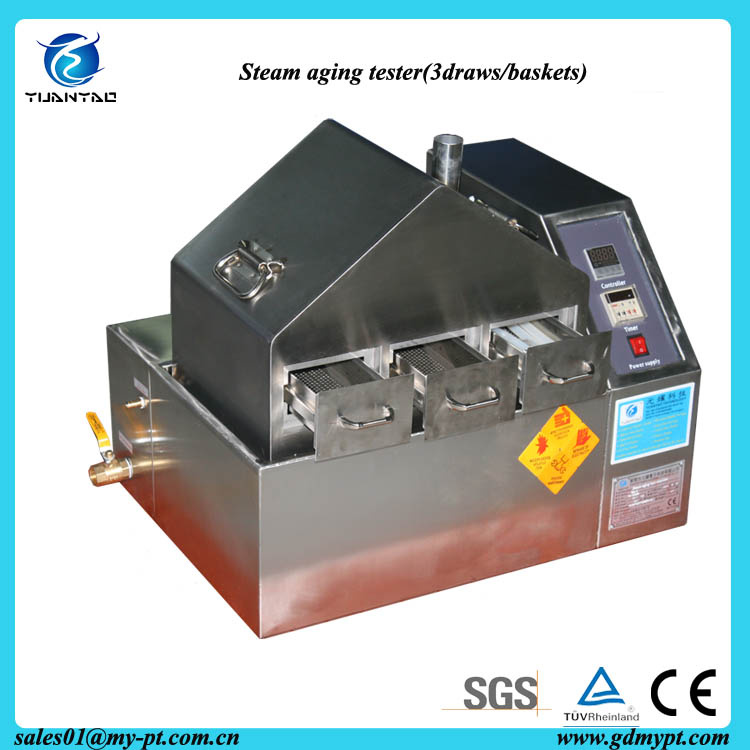

Steam Ageing endurance cabinet
Introduction&Application:
Steam Ageing endurance cabinet simulates the environment of high temperature high humidity, which is used to detect the resistance ability of metal plating, plastic plating, metal products, metal products, electronic appliances, electronic hardware, hardware plastic, chemical coating, painting, auto accessories, auto parts, bicycle, sanitary ware, plumbing equipment, screw, fasteners, magnetic materials, locks, metal furniture, sports equipment and other industries under the extremely high temperature high moisture climate, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.
Feature:
1 Stainless steel SUS#304 made, easy setting operation.
2 Microcomputer digital LED. Control with time function.
3 Max. Setting time is 9990 Hrs.
4 Safety device.
5 Test the temperature of spare parts, connector passive component and
Semiconductor.
6 Temperature controller: Digital electronic indicators + S. S. R. With P. I. D & timer(Max. 9990 Hrs).
7 Best after sales service: One year free parts maintenance.
8 Meet international test standards.
9 Customization is available & welcomed.
Technical parameters, please see the label.
| Specification |
| MODEL | YSA-3 | YSA-4 |
| Test basket.W×H×D(mm) | 100×54×260,3Sets | 100×54×260,4Sets |
| External Dim.W×H×D(mm) | 610×540×340 | 760×540×340 |
| Ferformance | Temp.Range | R.T+10ºC-- +98ºC |
| Temp.Constancy | ±0.3ºC |
| Temp.Resolution | ±0.1ºC |
| Heat-up( min ) | 45mins |
| Material | Exterior | SUS#304 stainless steel piate |
| Interior | SUS#304 stainless steel piate |
| Insulation | PU & Fiberglass wool |
| SYSTEMS | Heating | Chrome Steel Strip Wire Heater |
| Controller | Digital electronic indicators controller+S.S.R.With P.I.D & timer max 9,990mins |
| Safety Devices | Overheating prevention pretector, |
| Water shortage protector, steam outlet hole, no fuse breaker. |
| Power Source[K.W.] | AC 1Ψ 220V 60/50Hz |
| 1.1 | 2.5 |
More details about the specification, please contact Angela Cheng, thanks for your attention.
