| Prod Model: |
YPO-270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Size: |
600*900*500 Mm |
| External Size: |
1200*1700*840mm |
| Volume: |
480 Liters |
| Temp. Fluctuation: |
+/-0.3 Degree |
| Color: |
Ivory |
| Interior Chamber Material: |
SUS#304 Stainless Steel Plate |
| Exterior Chamber Material: |
Stainless Steel Plate + Powder Coated |
| Circulation System: |
Circle Fan |
| Indication Resolution: |
0.1degree / 1 Degree |
| Heat Up Time: |
60 Mins |
| Type: |
Material Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC380V |
Product Description

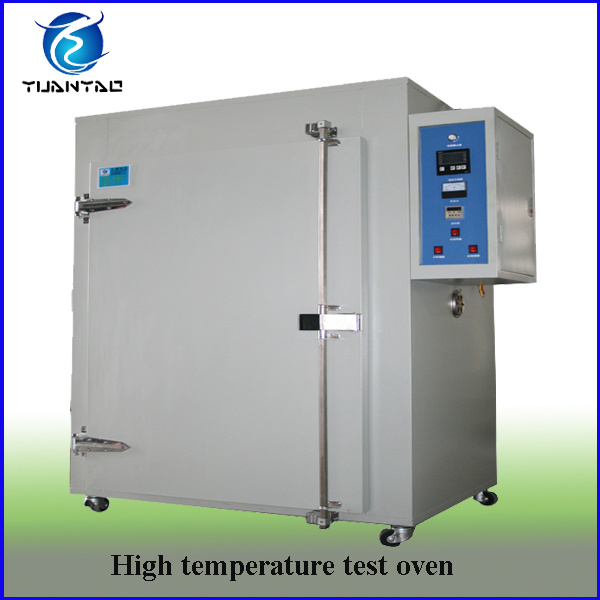

High Temp. Test Cabinet
Introduction&Application:
High Temp. Test Cabinet is used to test materials performance in high temperature test condition. It is widely applied to Circuit boards, electronic component, photoelectric device, electroplating metal, plastic chemical industry, printing industry, processing coating, ceramic glass and transformer, inductance coil, motor coil baking, drying, aging, etc
Feature:1 Microcomputer electronic digital control, precision&reliability.
2 High temperature endurance&non-aging.
3 Observation view window, easy operation.
4 Forced circulation air, the temperature rise fast, even distribution.
5 PID control, double overheating protection, safety and reliability.
6 Two groups of moving plates can be adjusted height. 9 Best after sales service: One year free parts maintenance.
7 Meet international test standards.
8 Customization is available & welcomed.
Technical parameters: See the label.Except
High Temp. Test Cabinet, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
|
Specification |
|
MODEL |
YPO-072 |
YPO-270 |
YPO-480 |
YOP-600 |
YPO-720 |
|
Internal Sim.WHD(mm) |
400×450×400 |
600×900×500 |
800×1000×600 |
1000×1000×600 |
1200×1000×600 |
|
External Dim.W×H×D(mm) |
750×1100×550 |
1050×1650×740 |
1200×1700×840 |
1400×1750×840 |
1750×1750×840 |
|
Temp.Range |
Room Temp.+10ºC---+200ºC(300ºC) |
|
Ferformance |
Temp.&Humi,Constancy |
±0.3ºC |
|
Temp.&Humi,Constancy |
±0.1ºC AT 200ºC;±1.5% AT 300ºC |
|
Indication Resolution |
0.1ºC/1ºC |
|
Heat-up Time( min.) |
Approx.60min. |
|
Material |
Exterior |
Iron Sheet+Baked Enamel |
|
Interior |
SUS#304 stainless steel piate |
|
Insulation |
Fiberglass Wool |
|
SYSTEMS |
Cirulation |
Circle Fen |
|
Heating |
Chrome Steel Strip Wire Heater |
|
Controller |
Electric Digital Control+S.S.R. |
|
door |
Single-Wing |
Double-Wing |
|
Other Components |
Environmental Control Indicator Lights, |
|
Experiment Separation Shelves(2 pcs). |
|
Sevey Devices |
Overheating Prevention Circuit breaker, |
|
Control System,Breakdown Indicator Light. |
|
Power Source[K.W.] |
AC 1Ψ 220V ; 3Ψ 380V 60/50Hz |
|
Any requested size and TEMP. range(max.1200ºC)will be considered. |
Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.
Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.
We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.
We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.
Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
