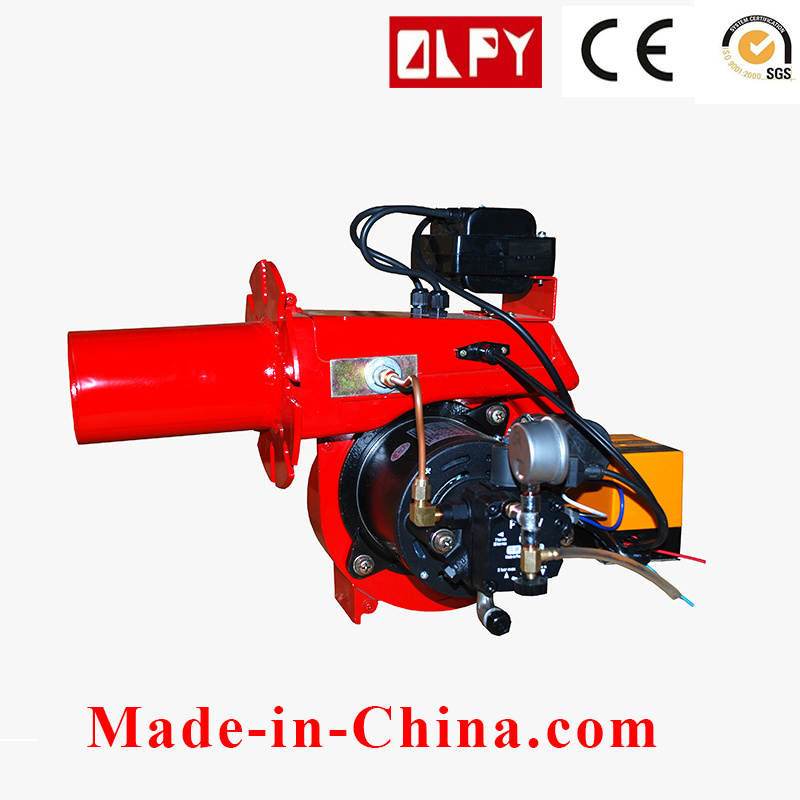

Mini Diesel Burner Applied in Small Boiler or Drying Equipment
| Price: |
US $ 300/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
OM-4 |
| Name: |
Om-4 Diesel Burner |
| Output: |
200000-400000kcal |
| Motor Power: |
0.4kw |
| Power Source(50Hz): |
380V |
| Control Type: |
on-off or Two-Stage |
| Fuel Quantity(Kg/H): |
15-34 Kg/Hr |
| Flame Monitor: |
Photosensitive Resistor |
| Application: |
Industry, Station, Hotels Resaurant |
| Color: |
Red or Blue |
Product Description
OM Series Fuel Diesel BurnerFEATURE:-FULLY AUTOMATIC RUNNING-SAFELY FLAME MONITORING SYSTEM-HIGH P-Q Characteristic-EASY WITH DAILY CHECK & MAINTAINENCE-STEADY PERFORMANCE. SPECIFICATION PARAMETER:| SPECIFICATIONS | OM-0NH | OM-0N | OM-1N | OM-2N | OM-3N | OM-4N |
OUTPUT
POWER | 104kcal/h | 3-7 | 3-5 | 5-10 | 10-20 | 15-30 | 20-40 |
| Kw/h | 35-80 | 35-58 | 58-116 | 116-233 | 174-349 | 233-465 |
| OIL USE | Kg/h | 3-7 | 3-5 | 5-12 | 8-18 | 12-25 | 15-34 |
| MOTOR | kw | 0.1 | 0.1 | 0.15 | 0.25 | 0.25 | 0.4 |
ELECTRI
POWER | MAIN | 220V/50HZ | 380V/50HZ |
| CONTROL | 220V/50HZ |
| CONTROL WAY | FULLY AUTOMATIC ONE STAGE (TWO STAGES) |
| FUEL | LIGHT DIESEL |
| ATMIZING PRESSURE | DYNAMIC PRESSURE 1.0-1.2MPA(10-12kgf/cm2) |
| FLAME MONITOR | PHOTOSENSITIVE RESISTOR |
| DAMPER ADJUST | HAND ADJUST (DAMPER MOTOR AUTOMTIC RUN) |
| FLANGE SETTING | FIXED FLANGE USED ( MOVABLE FLANGE OPTIONAL) |
Technical Support1)3D video guide
2)Manual book in English
3)Technical drawing
4)Experienced engineers guidance
