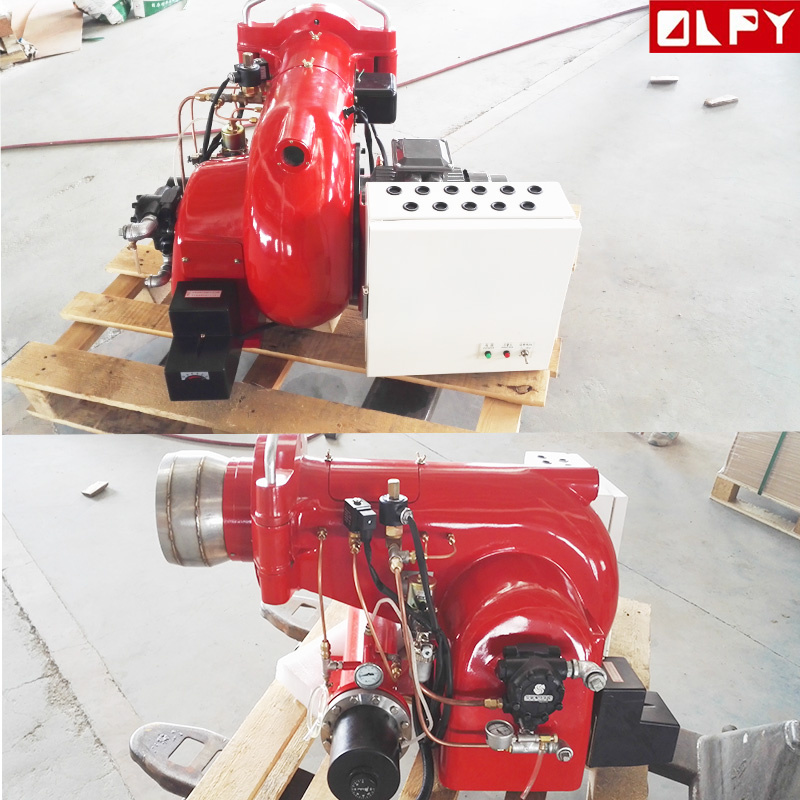

Crude Oil Heavy Oil Burner with Ce Certificate
| Price: |
US $ 2100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LB-200 |
| Model: |
Lb-200(W) |
| Weight: |
50kg |
| Size(mm): |
932*582*800 |
| Output Heat: |
800000-1600000 Kal/H |
| Output Power: |
930-1861 Kw/H |
| Pre-Heat Parts: |
8.0kw |
| Main Power: |
380V/50Hz |
| Flame Monitor: |
Photosensitive Resistor |
| Fuel Used: |
Heavy Oil, Crude Oil |
| Ignition Type: |
with Auxiliary Ignition |
Product Description
LB SERIES HEAVY OIL BURNER: Characteristics:- Fully automatic control
- Stable performance, Reliable operation
- High P-Q feature, good applicable ability
- Safe & reliable ignition system, flame monitor system
- Unique booster plate suitable for half pressure or full pressure furnace
Technical parameters: | SIZE/SPECIFICATION | LB-51(W) | LB-61(W) | LB-81 | LB-120 | LB-150 | LB-200 | LB-250 | LB-301 | LB-401 |
| OUTPUT POWER | 104kcal/h | 20-40 | 25-50 | 30-60 | 50-100 | 60-120 | 80-160 | 100-200 | 120-240 | 160-320 |
| Kw/h | 233-465 | 291-582 | 349-698 | 582-1163 | 698-1396 | 930-1861 | 1163-2326 | 1396-2791 | 1861-3722 |
| Motor | kw | 0.4 | 0.75 | 1.5 | 1.5 | 4.0 | 4.0 | 5.5 | 5.5 | 7.5 |
| Pre-heater | kw | 4.0 | 4.0 | 6.0 | 6.0 | 6.0 | 8.0 | 8.0 | 8+4 | 8+6 |
| Power supply | Main | 380V/50HZ |
| Control | 220V/50HZ |
| Control mode | One or two stages. Proportion type accepted |
| Fuel used | Heavy oil, crude oil (50ºCmax viscosity 500mm2/s) |
| Atomizing pressure | Dynamic pressure 1.8-2.2MPa (18-22kgf/cm) |
| Ignition | Light diesel auxiliary ignition(can also be canceled or use gas auxiliary ignition) |
| Structure type | Gun type |
| Protect grade | IP40 |
| Flame monitor | Photosensitive resistor | UV tube |
| Damper | Hand/automatic | Damper motor automatic adjusted |
| Flange setting | Rotate type flange |
| |

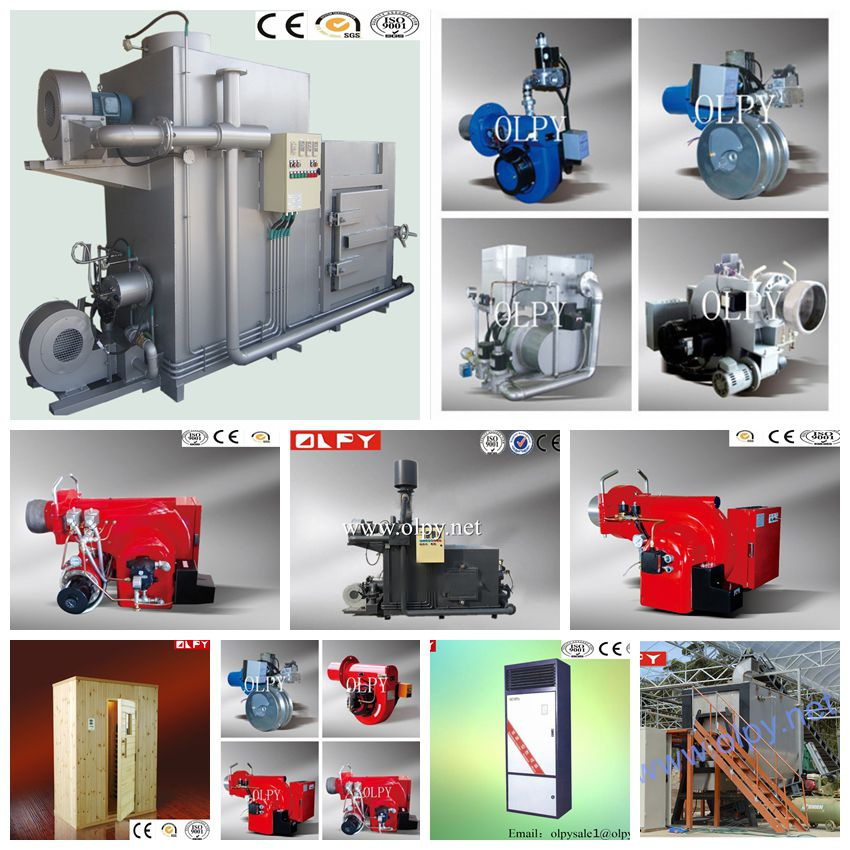

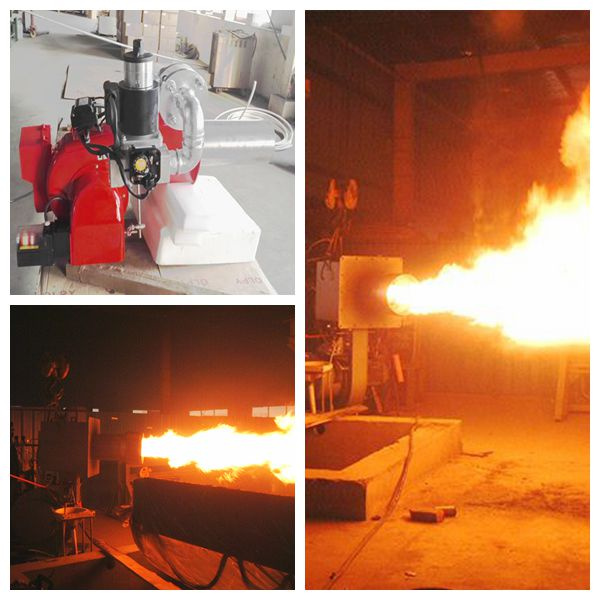

Some Item photoes:
