| Prod Model: |
YWER-B3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Size: |
4.5*2.7*2.4m |
| Temp. Range: |
-40 Degrees---70degrees |
| Humidity Range: |
30% Rh--90%Rh |
| Temp. Fluctuation: |
+/-0.3 Degree |
| Humi. Fluctuation: |
+/-2.5%Rh |
| Color: |
Ivory |
| Interior Chamber Material: |
SUS#304 Stainless Steel Plate |
| Exterior Chamber Material: |
Stainless Steel Plate + Powder Coated |
| Insulation System: |
PU&Fiberglass Wool |
| Wind Circulation System: |
Siroco Fan |
| Type: |
Material Testing Machine |
| Weight: |
1000-2000Kg |
| Power Source: |
AC380V |
| Oil Cylinder Position: |
N/a |
Product Description

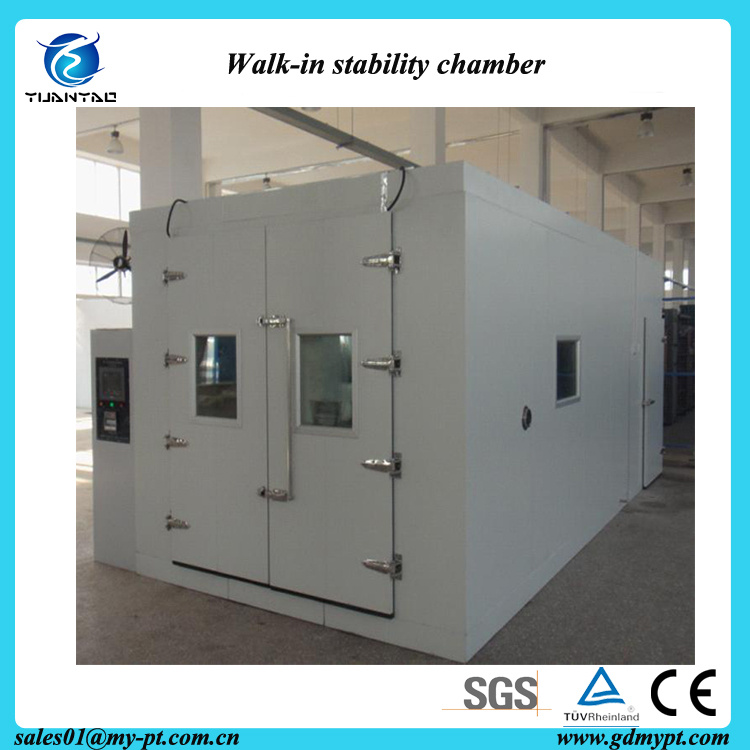

Low temperature humidity environment tesing cabinet(YWER-B3)
Introduction&Application:
Low temperature humidity environment tesing cabinet( climatic/ climate/ environment/environmental test chambers) simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from -60° C to 70° C and relative humidity ranges between 30% and 90% are available. A climate test chamber can also be used when constant climate conditions (temperature and/or humidity) are needed for product testing.
Feature:
1 Internal volume is designed according to customer's requirement.
2 Vertical forced draught mode design can evenly control any temperature and humidity conditions.
3 Stainless steel and baked enamel materials, solid structure, water-proof and good appearance.
4 Touch screen controller
5 Best after sales service: One year free parts maintenance.
6 Meet international test standards.
7 Customization is available & welcomed.
Technical parameters, please read the attached label.
More details about the specification, please contact Angela Cheng, thanks for your attention.
Except Low temperature humidity environment tesing cabinet, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Automatic dispenser robot, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
| Model | YWER |
| Internal Dim.W×H×D(mm) | Please refer to size chart |
| External Dim.W×H×D(mm) |
| Temperature Range | 0ºC;-20ºC;-40ºC;-60ºC-- +70ºC(+80ºC) |
| Humidity Range | 30--90%RH |
| Ferformance | Temp.&Humi,Constancy | ±0.3ºC;±2.5%RH |
| Temp.&Humi,Constancy | ±0.1ºC;±5%RH |
| Indication Resolution | 0.1ºC;0.1%RH/0.01;0.1%RH |
| Heat-at | ºC | 80 |
| Time | min | 50 |
| Pull-down | ºC | 0 | -20 | -40 |
| Time | min | 55 | 70 | 100 |
| Material | Exterior | SUS#304 Stainless steel/PVC+Powder Coated |
| Interior | USU#304 stainless steel piate |
| Insulation | Ployurethane foam 100mm (75mm) (50mm) |
| Systems | Cirulation | Siroco fan |
| Heating | SUS#304 stainless steel high-speed heater |
| Humidifying | Surface evaporating system |
| Cooling | Airtight compressor+vaporator fins+air-cooling |
| (or water-cooling)condenser |
| Dehumidifying | ADP Critical dewpoint cooling/dehumidifying method |
| Controller | Digital electronic indicators+S.S.R.With PID |
| Other Components | Airtight compressor+evaporator fins+air-cooling |
| (or water-cooling)condenser |
| Sevey Devices | Overheating prevention ciruit-breaker, compressor overload protection,control system overload,humidifying system |
| overheating & drying out prevention, breakdown indicator light. |
| Power Source[K.W.] | 3Ψ 380V 60/50Hz |
| Comply with ASTM D2436,JIS K7212,DIN 50011,BS 2648,IEC-540. |
Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.
Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.
We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.
We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.
Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
