| Prod Model: |
YSRT-1728 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size(mm): |
1200*1200*1200 |
| Test Specimen Frame: |
17rpm |
| Flow Rate Of The Water: |
0.07L/Min |
| Material: |
SUS#304 |
| Water Temp.: |
Normal |
| Warranty: |
12 Months |
| IP Class: |
Ipx1~Ipx8 |
| Other Components: |
Chamber Lamp.Wiper, Casters with Adjusters |
| Application: |
Electric Industry |
| Service: |
Customization |
| Type: |
Material Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
N/a |
| Control: |
Controller |
| Oil Cylinder Position: |
N/a |
Product Description

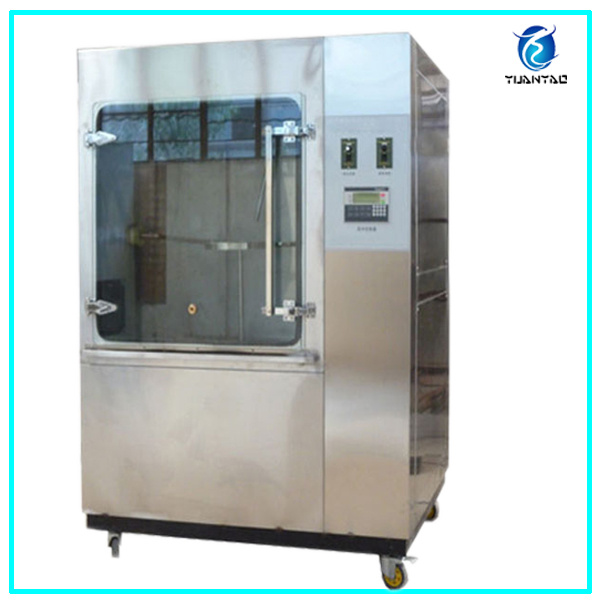

ip protection rain spray cabinet for LED lamp
Mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices for rain resistance test.
Features
1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.
4. To test water-proofing properly of automobile and electronic parts.
| Model | YSRT-1728-A | YSRT-1728-E(IEC-529)(CNS14165) |
| Internal Dim.W×H×D(mm) | 1200×1200×1200 | 1200×1200×1200 |
| External Dim.W×H×D(mm) | 1750×1850×1300 | 1750×1850×1300 |
| Water Temp. | Normal | Normal |
| Spray Type | Total Water Flow(L/min) | R1 | 1.8 | IP×1 | With in 1~1.5mm/min(In drip box) |
| R2 | 3.2 | IP×2 | With in 3~3.5mm/min(In drip box) |
| S1 | 24.5 | IP×3 | angle±600,R:400mm,1.1L/min |
| S2 | 39.2 | IP×4 | angle±1800,R:400mm,1.8L/min |
| Pressure of spray nozzle(kgf/cm*2) | R1 | 0.1 | 1.Flow rate of the water=0.07L/min
2.1P×3,Radius:400mm,16Number or open
holes=16,total water flow:1:1L/min.
3.1P×4,Radius:400mm,25Number or open
holes=25,total water flow:1:8L/min.
*Radius:200mm,R400mm.
(For 1P×3,1P×4 only) |
| R2 | 0.3 |
| S1 | 1 |
| S2 | 3 |
|
| (RPM)Test Specimen Frame | 17RMP | 1RPM |
| Spray Nozzle Rotation Speed | 23RPM | Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote
Swing 60 ° from vertical for 4 seconds at one time
Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round
Swing 180 ° from vertical for 12 seconds at one time |
|
|
|
|
|
| Material | Interior | SUS#304 |
| Exterior |
| Other Components | Chamber lamp.Wiper
casters with Adjusters | Chamber lamp.Wiper,casters with Adjusters |
|
| Power Source(K.W.) | AC 1Ψ 220V 60/50Hz 4KW |
Except rain spray test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
If you are interested in the items, please contact me soon.
