| Prod Model: |
PR8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cold-Rolled Sheet Steel |
| Surface Finish: |
Epoxy Thermosetting Powder Coating |
| Lock: |
Avaliable on Request |
| Whether The OEM: |
OEM |
| Color: |
Ral7032/Ral7035/Customize |
| Thickness: |
1.5mm&2.0mm |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Application Range: |
Electrical Distribution |
| Brand: |
Prota |
Product Description

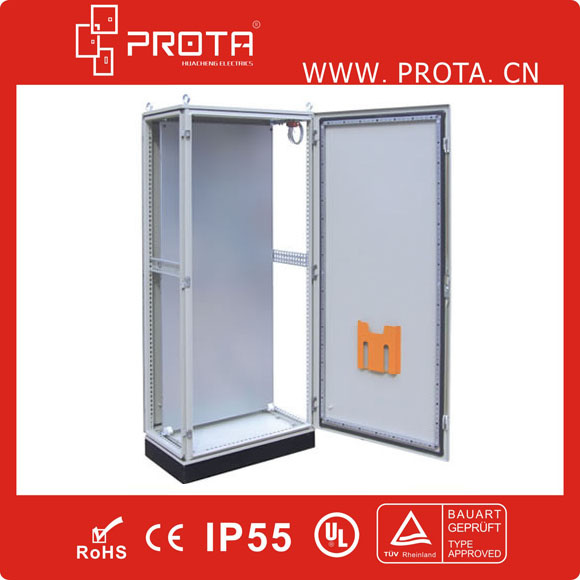

Industral Power Control / Power Distribution Cabinet
Standard Configuration1. Standard Configuration:
One-piece complete cabinet
The strengthening section bar is installed inside the door
Standard front door (with strengthening strip)
Galvanized mounting plate (contains fixing accessories)
4pcs of eyebolt rings
1pc of back panel
A4 plastic plan pocket
2. Protection degree: IP 55
3. Surface: The whole cabinet is phosphate coated and the exterior is epoxy thermosetting textured powder-coated.
4. Material and thickness
The cabinet body is cold-rolled sheet steel, the mounting plate is galvanized.
Front Door: 2.0mm
Body: 1.5mm
Mounting plate: 2.5 mm
5. Color: RAL7032 RAL 7035
FEATURES OF CRAFTSMANSHIP:1. Independent power supply unit, not applicable for paralleled cabinets
2. The front door is 25MM above the floor, which ensures the good performance in the door opening.
3. The main structure is welded with overall section bars, which ensures not only the high intensity, but also the protection level of IP55.

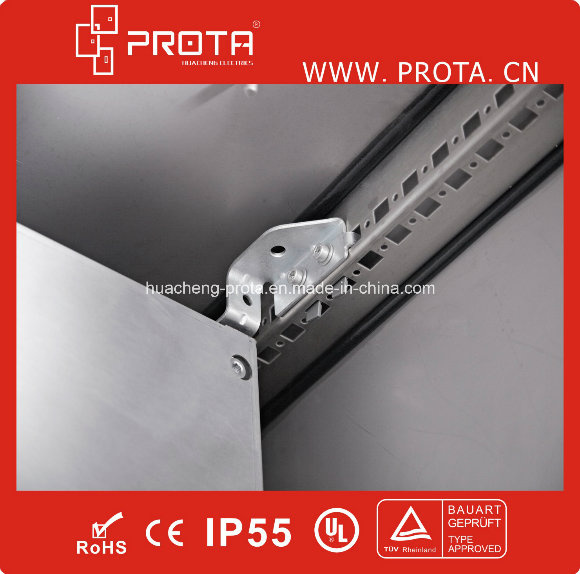

4. Special tube inside the front door strengthens the system, can be fixed with screws and removed easily.
5. The modular holes with the distance of 25mm, makes sure the flexibility and the generality of the installation
6. Galvanized mounting plate can be pushed directly into the cabinet from the front side. Moreover, the installation is much more durable and delivered easily with U typed folding design in the both sides.Selection table:| Model No. | H | W | D |
| (mm) | (mm) | (mm) |
| PR8 126/4 | 1200 | 600 | 400 |
| PR8 126/8 | 1200 | 600 | 800 |
| PR8 128/4 | 1200 | 800 | 400 |
| PR8 128/8 | 1200 | 800 | 800 |
| PR8 146/4 | 1400 | 600 | 400 |
| PR8 146/8 | 1400 | 600 | 800 |
| PR8 148/4 | 1400 | 800 | 400 |
| PR8 148/8 | 1400 | 800 | 800 |
| PR8 166/4 | 1600 | 600 | 400 |
| PR8 166/8 | 1600 | 600 | 800 |
| PR8 168/4 | 1600 | 800 | 400 |
| PR8 168/5 | 1600 | 800 | 500 |
| PR8 168/6 | 1600 | 1000 | 600 |
| PR8 168/8 | 1600 | 800 | 800 |
| PR8 186/4 | 1800 | 600 | 400 |
| PR8 186/5 | 1800 | 600 | 500 |
| PR8 186/6 | 1800 | 600 | 600 |
| PR8 186/8 | 1800 | 600 | 800 |
| PR8 188/4 | 1800 | 800 | 400 |
| PR8 188/5 | 1800 | 800 | 500 |
| PR8 188/6 | 1800 | 800 | 600 |
| PR8 188/8 | 1800 | 800 | 800 |
| PR8 203/4 | 2000 | 300 | 400 |
| PR8 203/5 | 2000 | 300 | 500 |
| PR8 203/6 | 2000 | 300 | 600 |
| PR8 203/8 | 2000 | 300 | 800 |
| PR8 204/4 | 2000 | 400 | 400 |
| PR8 204/5 | 2000 | 400 | 500 |
| PR8 204/6 | 2000 | 400 | 600 |
| PR8 206/4 | 2000 | 600 | 400 |
| PR8 206/5 | 2000 | 600 | 500 |
| PR8 206/6 | 2000 | 600 | 600 |
| PR8 206/8 | 2000 | 600 | 800 |
| PR8 208/4 | 2000 | 800 | 400 |
| PR8 208/5 | 2000 | 800 | 500 |
| PR8 208/6 | 2000 | 800 | 600 |
| PR8 208/8 | 2000 | 800 | 800 |
| PR8 226/4 | 2200 | 600 | 400 |
| PR8 226/5 | 2200 | 600 | 500 |
| PR8 226/6 | 2200 | 600 | 600 |
| PR8 226/8 | 2200 | 600 | 800 |
| PR8 228/4 | 2200 | 800 | 400 |
| PR8 228/5 | 2200 | 800 | 500 |
| PR8 228/6 | 2200 | 800 | 600 |
| PR8 228/8 | 2200 | 800 | 800 |
Cut-outs and drilled holes to your specifications. Should you have any questions or problems, ple4se contact with us.
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

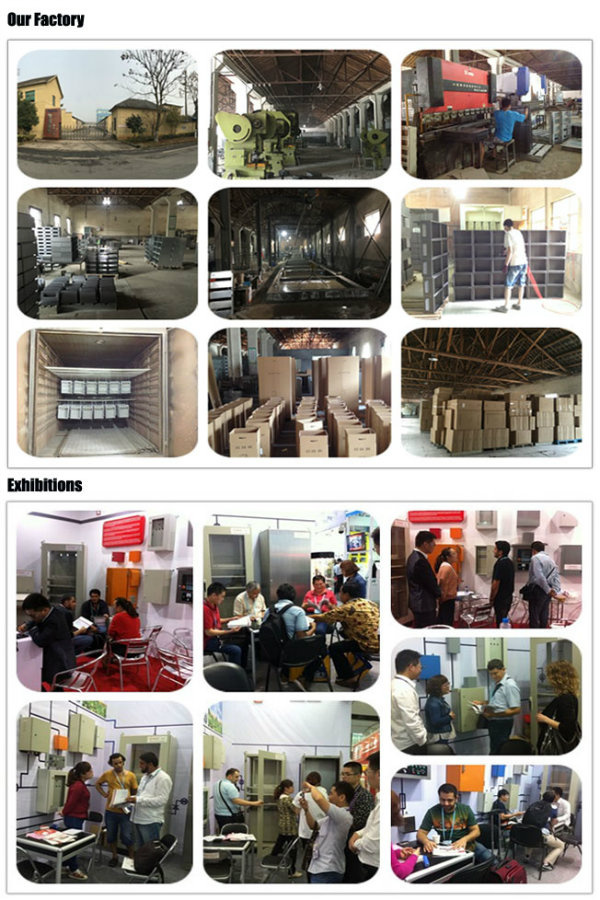

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
