Knock-Down Type Power Distribution Cabinet Electric Cabinet
| Price: |
US $ 300-800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PR9K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cold-Rolled Sheet Steel |
| Color: |
Ral7032/Ral7035/Customize |
| Surface Finish: |
Epoxy Thermosetting Powder Coating |
| Thickness: |
2.0mm/2.5mm |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Application Range: |
Electrical Distribution |
| Brand: |
Porta |
Product Description
Knock-Down Type Power Distribution Cabinet Electric Cabinet
PR9K Metal knock-down type floor standing cabinets comprise the 9-folded profiles structure, un-welded at the top cover and bottom base, with the removable screws in vertical profiles to strengthen and be versatile to the cabinets. Thermosetting expoxy polyester powder coating in textured RAL 7032 or RAL 7035.

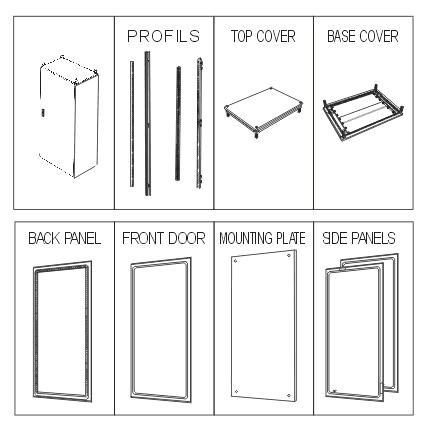

1. Prolfiles components/(model:F):hinged uprights, panel mounts and locking elements assembled, 9-folded material, 1.5mm THK.
2. Top cover and base/ (Model: TCB):welded top frame & base, 1.5mm THK, with mounting plate fixing supporters, W/T galvanized T-joints.
3. Back panel and front door (Model: FBD):plain door, 2mm THK, with 3-point locking system & A4 plastic plan pocket, plain back panel fastening by screws.
4. Mounting Plate(Model: MP)Galvanized/Orange painted mounting plate, 2.5mm THK.
5. Side Panels(Model: PRSP):2pcs side panels with fixing accessories, 1.5mm THK.Selection Table:
CODE NO. | H | W | D |
PROFILE | TOP COVER
&
BASE COVER
| FRONT
DOOR | BACK
PANEL | MOUNTING
PLATE | SIDE
PANELS |
| PRK1264 | 1200 | 600 | 400 | F12 | TCB64 | FD126 | BP126 | MP126 | PRSP126 |
| PRK1286 | 1200 | 800 | 600 | F12 | TCB86 | FD128 | BP128 | MP128 | PRSP128 |
| PRK1288 | 1200 | 800 | 800 | F12 | TCB88 | FD128 | BP128 | MP128 | PRSP128 |
| PRK1464 | 1400 | 600 | 400 | F14 | TCB64 | FD146 | BP146 | MP146 | PRSP146 |
| PRK1486 | 1400 | 800 | 600 | F14 | TCB86 | FD148 | BP148 | MP148 | PRSP148 |
| PRK1488 | 1400 | 800 | 800 | F14 | TCB88 | FD148 | BP148 | MP148 | PRSP148 |
| PRK1864 | 1800 | 600 | 400 | F18 | TCB64 | FD186 | BP186 | MP186 | PRSP186 |
| PRK1886 | 1800 | 800 | 600 | F18 | TCB86 | FD188 | BP188 | MP188 | PRSP188 |
| PRK1888 | 1800 | 800 | 800 | F18 | TCB88 | FD188 | BP188 | MP188 | PRSP188 |
| PRK2064 | 2000 | 600 | 400 | F20 | TCB64 | FD206 | BP206 | MP206 | PRSP206 |
| PRK2086 | 2000 | 800 | 600 | F20 | TCB86 | FD208 | BP208 | MP208 | PRSP208 |
| PRK2088 | 2000 | 800 | 800 | F20 | TCB88 | FD208 | BP208 | MP208 | PRSP208 |
| PRK2264 | 2200 | 600 | 400 | F22 | TCB64 | FD226 | BP226 | MP226 | PRSP226 |
| PRK2286 | 2200 | 800 | 600 | F22 | TCB86 | FD228 | BP228 | MP228 | PRSP228 |
| PRK2288 | 2200 | 800 | 800 | F22 | TCB88 | FD228 | BP228 | MP228 | PRSP228 |

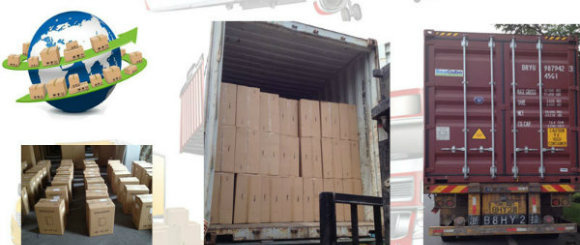

Packing and Shipping

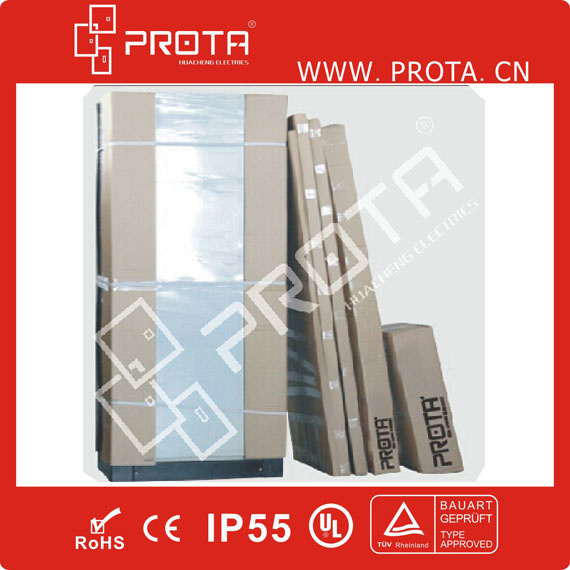

-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service

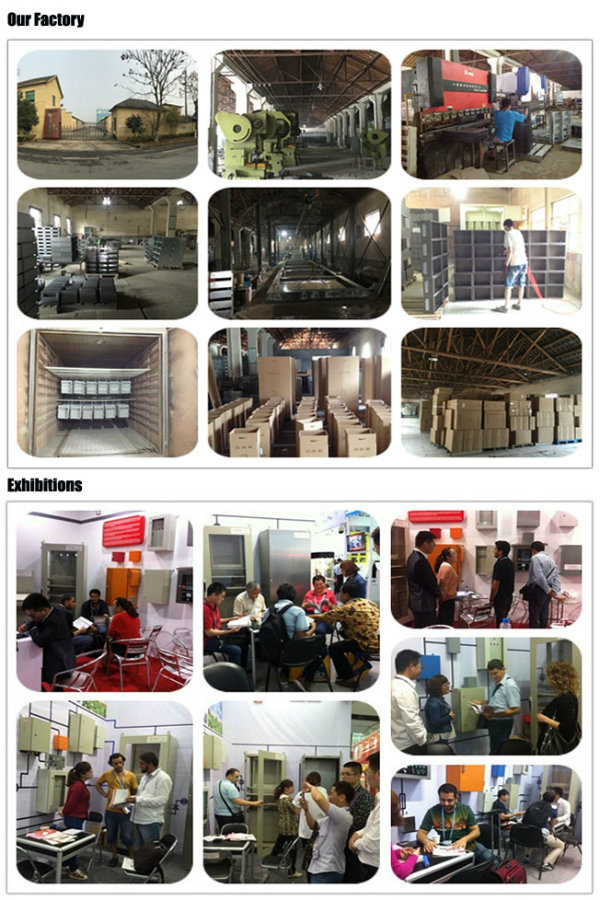

-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
