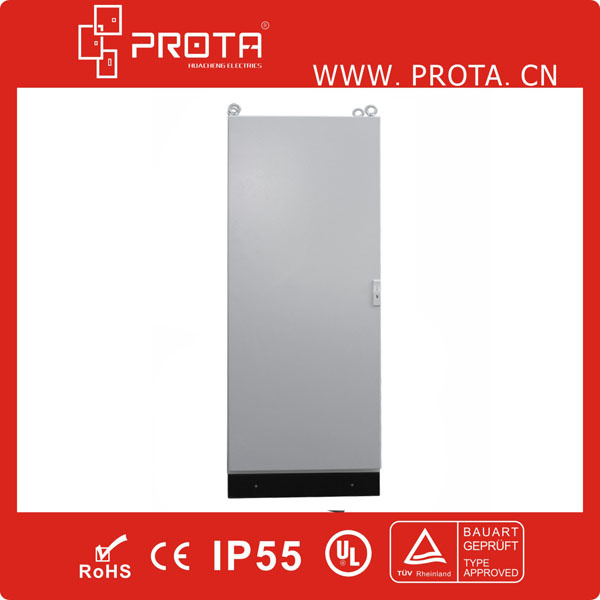

IP55 One-Piece Floor Standing Power Distribution Cabinets

Prod Model:	PR8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cold-Rolled Sheet Steel
Color:	Ral 7032/Ral 7035/Customize
Surface Finish:	Epoxy Thermosetting Powder Coating
Thickness:	1.2mm&1.5mm
Type:	Distribution Metering Box
Structure:	Protection
Certification:	ISO9001:2008
Application Range:	Electrical Distribution
Brand:	Prota

Product Description

IP55 One-Piece Floor Standing Power Distribution Cabinets

Product Description
1. Standard Configuration:
One-piece complete cabinet
The strengthening section bar is installed inside the door
Standard front door (with strengthening strip)
Galvanized mounting plate (contains fixing accessories)
4pcs of eyebolt rings
1pc of back panel
2. Protection degree: IP 55
3. Surface: The whole cabinet is phosphate coated and the exterior is epoxy thermosetting textured powder-coated.
4. Material and thickness
The cabinet body is cold-rolled sheet steel, the mounting plate is galvanized.
Front Door: 2.0mm
Body: 1.5mm
Mounting plate: 2.5 mm
5. Color: RAL7032 RAL 7035

Product Feature:
1. Independent power supply unit, not applicable for paralleled cabinets
2. The front door is 25MM above the floor, which ensures the good performance in the door opening.
3. The main structure is welded with overall section bars, which ensures not only the high intensity, but also the protection level of IP55.
4. Special tube inside the front door strengthens the system, can be fixed with screws and removed easily.
5. The modular holes with the distance of 25mm, makes sure the flexibility and the generality of the installation
6. Galvanized mounting plate can be pushed directly into the cabinet from the front side. Moreover, the installation is much more durable and delivered easily with U typed folding design in the both sides.

Selection table:

Model No.	H mm	W mm	D mm
PR8 1264	1200	600	400
PR8 1266	1200	600	600
PR8 1284	1200	800	400
PR8 1286	1200	800	600
PR8 1288	1200	800	800
PR8 1464	1400	600	400
PR8 1466	1400	600	600
PR8 1484	1400	800	400
PR8 1486	1400	800	600
PR8 1488	1400	800	800
PR8 1664	1600	600	400
PR8 1666	1600	600	600
PR8 1684	1600	800	400
PR8 1686	1600	800	600
PR8 1688	1600	800	800
PR8 1864	1800	600	400
PR8 1866	1800	600	600
PR8 1884	1800	800	400
PR8 1885	1800	800	500
PR8 1886	1800	800	600
PR8 1888	1800	800	800
PR8 2064	2000	600	400
PR8 2066	2000	600	600
PR8 2084	2000	800	400
PR8 2085	2000	800	500
PR8 2086	2000	800	600
PR8 2088	2000	800	800
PR8 2264	2200	600	400
PR8 2286	2200	800	600
PR8 2288	2200	800	800

Other sizes avaliable on request .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, please contact with us.

Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.

Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.

Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.

Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.

we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
