| Prod Model: |
PR6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cold-Rolled Sheet Steel |
| Color: |
Ral7032/Ral7035/Customize |
| Surface Finish: |
Epoxy Thermosetting Powder Coating |
| Thickness: |
1.5mm |
| Lock: |
Plastic Lock or Metal Lock |
| Type: |
Power |
| Structure: |
Protection |
| Application Range: |
Electrical Distribution |
| Brand: |
Porta |
Product Description

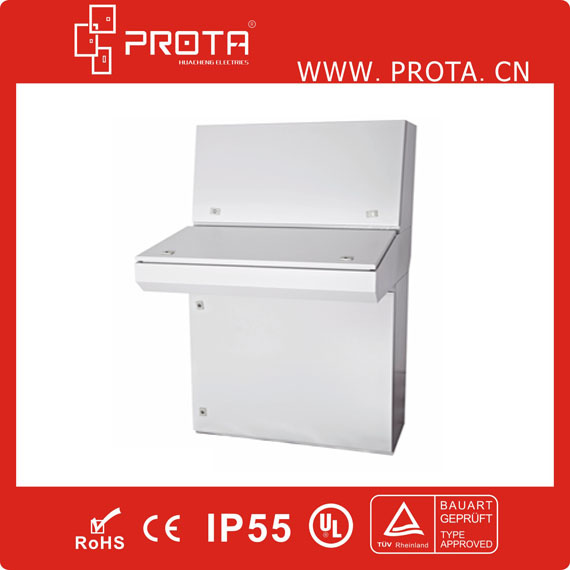

IP55 Electrical Control Cabinet Control DeskStandard configuration:
1. One mounting plate (galvanized)
2. The front and the back doors, the operation board can be opened, with hydraulic support door stays.
3. Color: RAL 7032 or RAL 7035
Material: cold-rolled sheet steel
Door: 2.0mm
Body: 1.5mm
Mounting Plate: 2.5mm
4. Surface: the whole cabinet is phosphate coated and the exterior is epoxy thermosetting textured powder-coated.
5. Protection degree: IP55
Features of craftsmanship
1. The doors of the front and back as well as the operation p
2. The mounting plate can be moved forward and backward, which is anels can be opened, which are very convenient for installation;more flexible for the internal installation
3. The door is installed with panel strips with pilot holes, which is welded to both sides inside the front door and the upper and the down position of the operation cover board. Moreover, it makes the installation of door and cover board more flexible, convenient for cables, via the installation strips
4. The PU foam sealing gasket inside the door ensures the protection degree of the cabinet.
5. The door can be switched by left and right.
6. The original operation panel has the hydraulic support door stays, which greatly improves the class of the cabinets, and embodies the humanized design.Selection table
| ALP series control desk(include:AE,LE,PE) |
|
|
|
|
|
|
| AE(1.5mm) | LE(2.0mm) | PE(1.5mm) |
| MODEL | A | B | C | D | E | F | G | H | I | J | K |
| ALP41 | 600 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP42 | 800 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP43 | 1000 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP44 | 1200 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP45 | 1600 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP51 | 600 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| ALP52 | 800 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| ALP53 | 1000 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| ALP54 | 1200 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| ALP55 | 1600 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| AM series control desk(include:AE,ME) |
|
|
|
| MODEL | AE(1.5mm) | ME(2.0mm) |
| A | B | C | O | L | N | M |
| AM41 | 600 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM42 | 800 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM43 | 1000 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM44 | 1200 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM45 | 1600 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM51 | 600 | 770 | 500 | 275 | 750 | 123 | 712 |
| AM52 | 800 | 770 | 500 | 275 | 750 | 123 | 712 |
| AM53 | 1000 | 770 | 500 | 275 | 750 | 123 | 712 |
| AM54 | 1200 | 770 | 500 | 275 | 750 | 123 | 712 |
| AM55 | 1600 | 770 | 500 | 275 | 750 | 123 | 712 |
Other sizes avaliable on request .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, please contact with us.
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

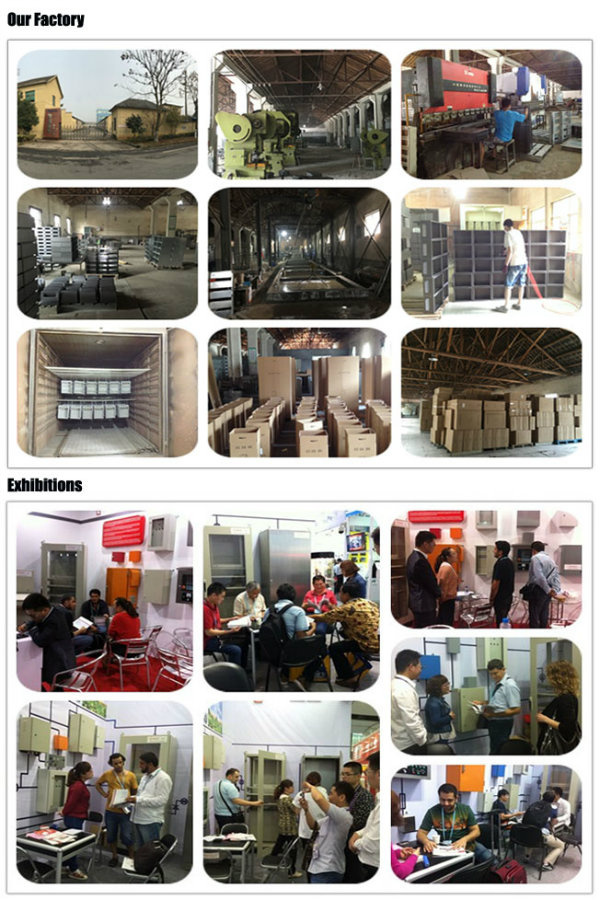

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading. Company Information
