| Name: | Gck Low-Voltage Drawer Type Switchgear Cabinet |
|---|---|
| Reted Frequency: | 50Hz/60Hz |
| Application: | Power Transmission |
| Standard: | ISO9001:2008/IEC Standard |
| Rated Voltage: | 380V |
| Rated Current: | 3150A |
| Switch: | Distribution Box Electrical Box |
| Special Service: | Customized |
| Switchgear: | Hv/LV |
Specifications:

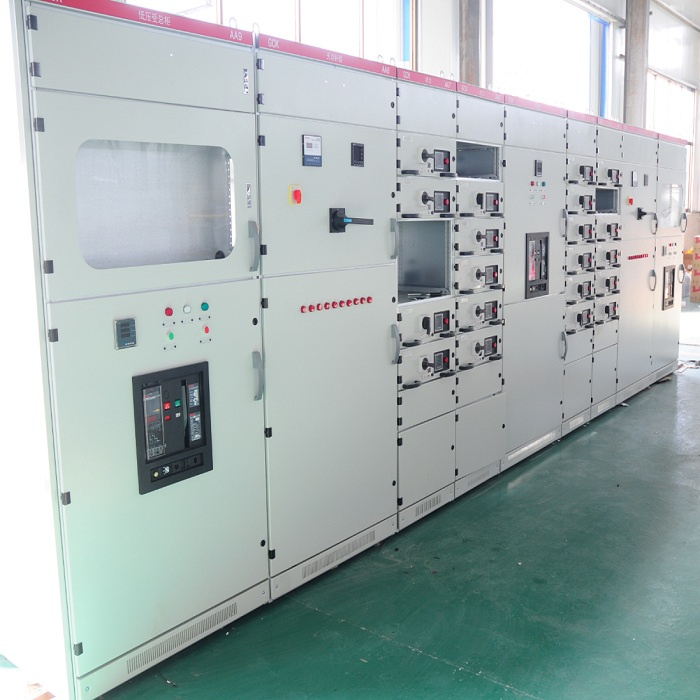

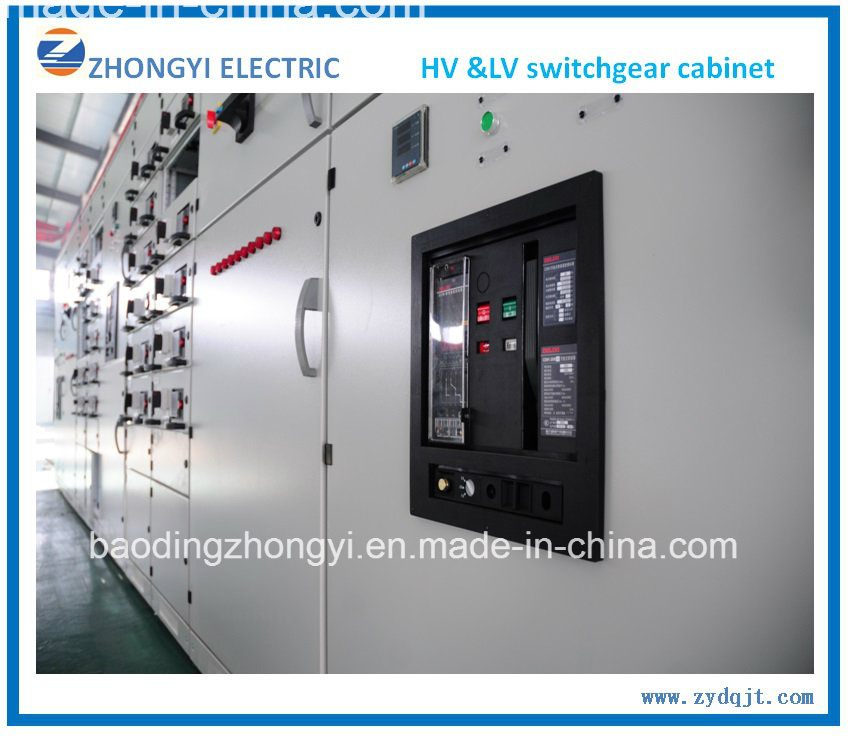

China Factory 380V SIVACON GCK Low Voltage schneider switchgear /Electric Cabinet for Power Distribution Use
Product Description
Application
380V/0.4 AC power distribution cabinet GCK withdrawble low voltage distribution cabinets
GCK low-voltage drawer type distribution cabinet is applicable to rated operating voltage 380V. AC three-phase four-wire and three-phase five-wire system, which can be used as centralized control of power- receiving, power supply, reactive power compensation, calculation of electric energy, illumination and motor in the power plant of power system, industrial and mining enterprises and high-rise building substations.
Standard for GCK switchgear /Electric Cabinet
This product complies with the Standards:
Structure for withdrawble switchgear /Electric Cabinet

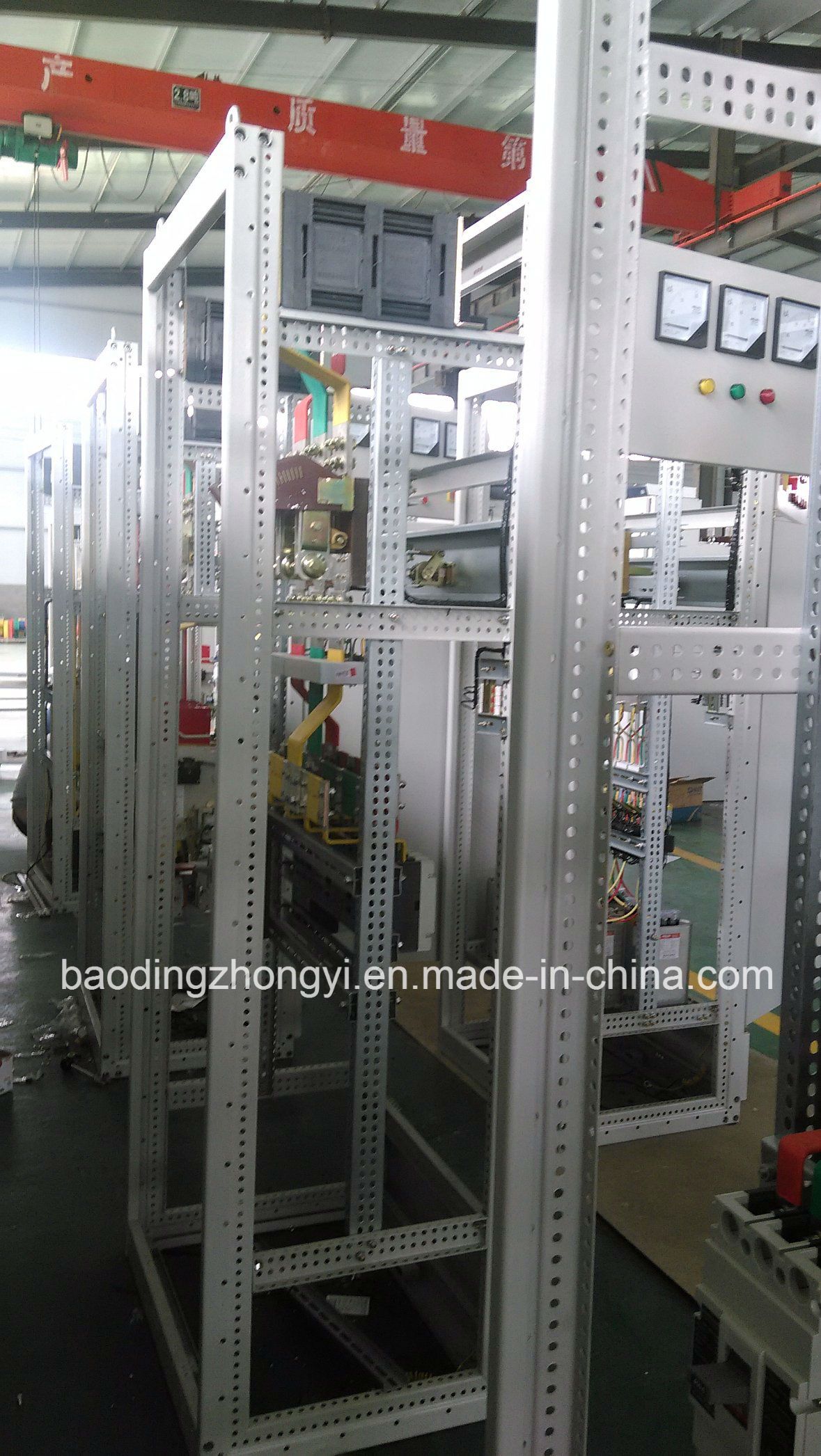

The basic frame of switchgear /Electric Cabinet adopts assembled combined structure and it is manufactured by fastening and connecting the profile steels with bolts, and then it is installed with corresponding door, closing plate, partition plate, installation bracket and bus and function units, etc. into a complete switchgear according to the change of scheme. The structural parts in switchgear are galvanized and adopt modular installation (modulus E=20mm). The switchgear panel is made of high-quality cold-rolled steel plates which are machined and shaped by numerically controlled machine tool, and after pickling and phosphating, the surface undergoes
electrostatic plastic spraying and is resistant to wear and corrosion, so it has solid mechanical strength and reliable ground protection continuity.

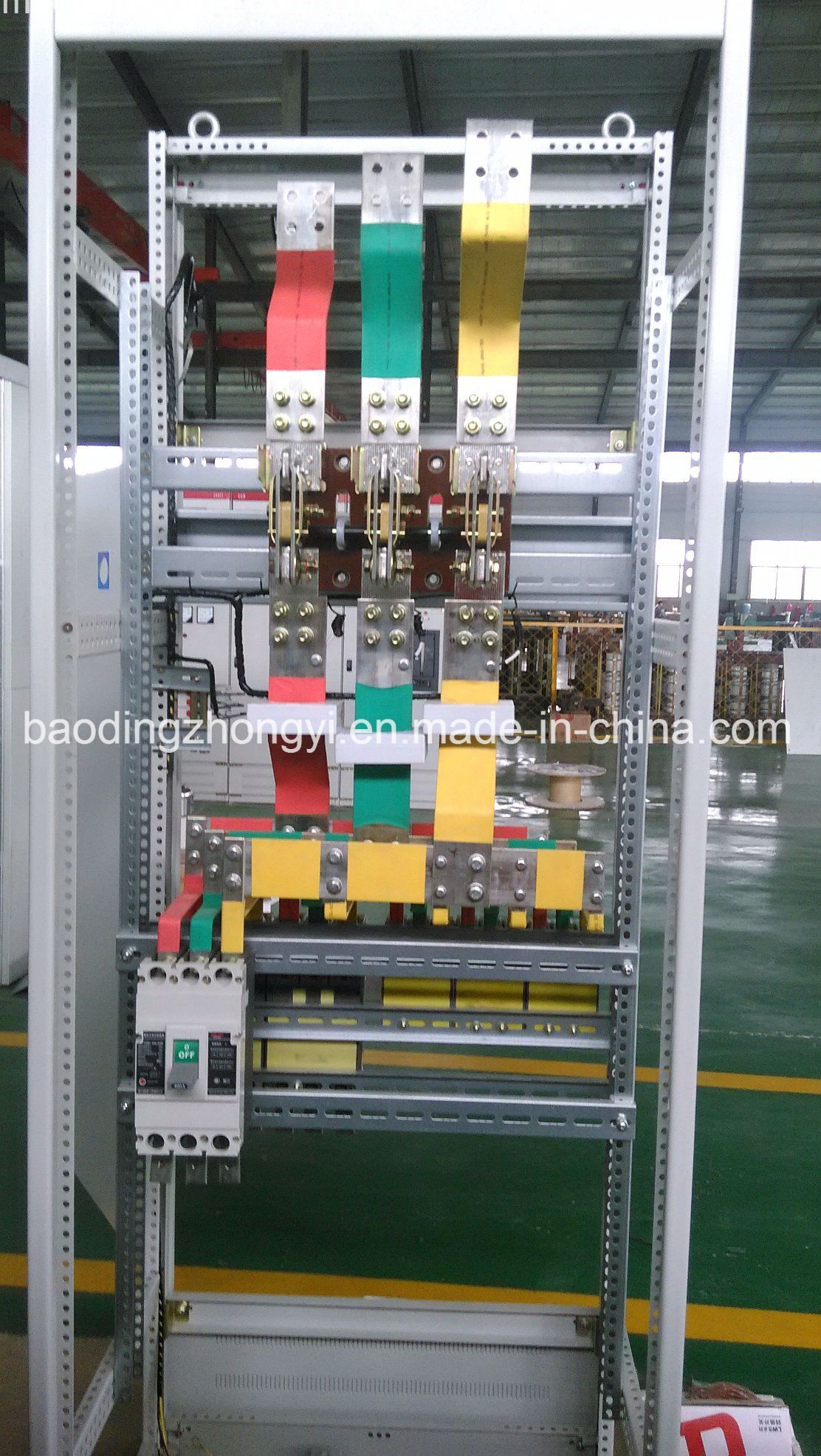

The switchgear /Electric Cabinet compartment is divided into function unit chamber, bus chamber and cable chamber, and the function of each unit is independent of each other and the areas are strictly isolated by continuously grounded metal plate, thus ensuring the safety of use and preventing spreading of accidents.
MCC cabinet drawer has five specifications of 200mm, 300mm, 400mm, 600mm and 200/2mm. The drawer has connected position, test position and separated position. Mechanical interlocking device is equipped between each drawer and switch. Only when the switch is disconnected, can the drawer be drawn out or inserted. When the switch is closed, the drawer may not be drawn out or inserted. To prevent unauthorized operation, the operating mechanism can lock the switch in OFF position with a padlock. The function unit drawers of same specification are interchangeable, and the drawer of each function unit has 20 pairs of auxiliary contacts, to meet the needs of automatic monitoring systems of operation control, electricity metering and computer interface in different place.
1. Metal-enclosed and separately arranged, with high protection Category
2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces
3. Protection Category of enclosure reaches to IP4X,
4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining
| No. | Item | Unit | Parameters |
| 1 | rated voltage | V | 380 |
| 2 | rated frequency | Hz | 50 |
| 3 | size: | MM | 800/1000X600/1000X2200 |
| 4 | material: | type | stainless steel304 |
| 5 | Short time withstand current rating | KA | 50,80 |
| 6 | Earthing switch peak withstand rated current | KA | 105,176 |
| 7 | Protection grades | IP | IP30 |
| 8 | rated current | A | ≤ 4000 |
| 9 | Rated short-circuit duration | sec | 4 |
Details for GCK switchgear /Electric Cabinet for Power Distribution Use
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.

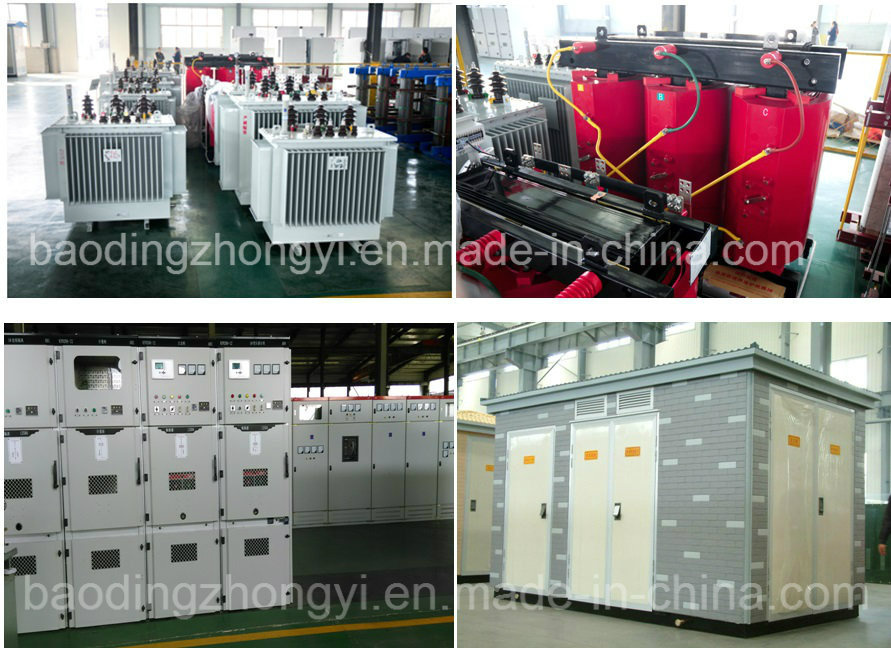

Our main products:
oil-immersed power transformers,
dry-type transformers,
box-type substation,
High voltage/low voltage switchgear /Electric Cabinet for Power Distribution Use
and a variety of special-type transformers.
The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality;

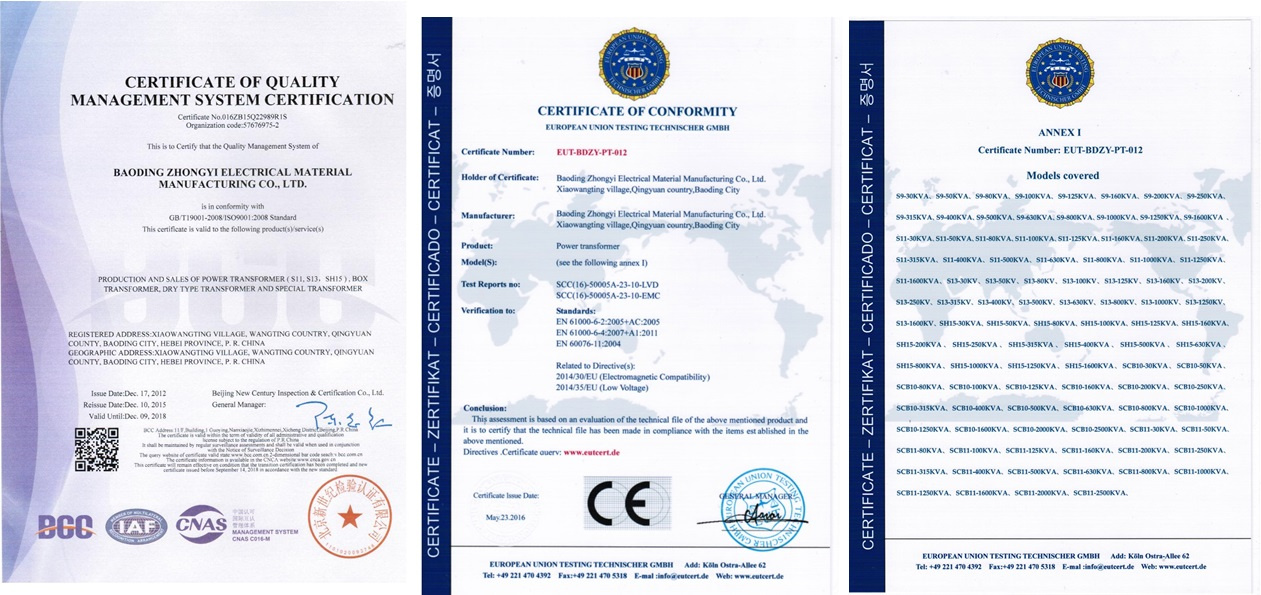

Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .
Packing:
1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.
Delivery details:15-40 days according to order quantities
