| Price: | US $ 50000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | Kyn28 |
|---|
High and Low Voltage Complete Sets of Series Products

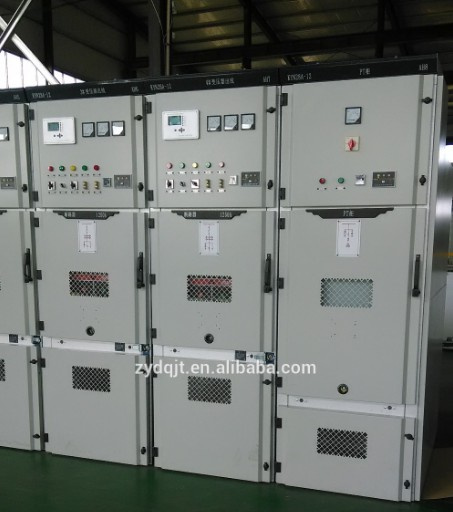

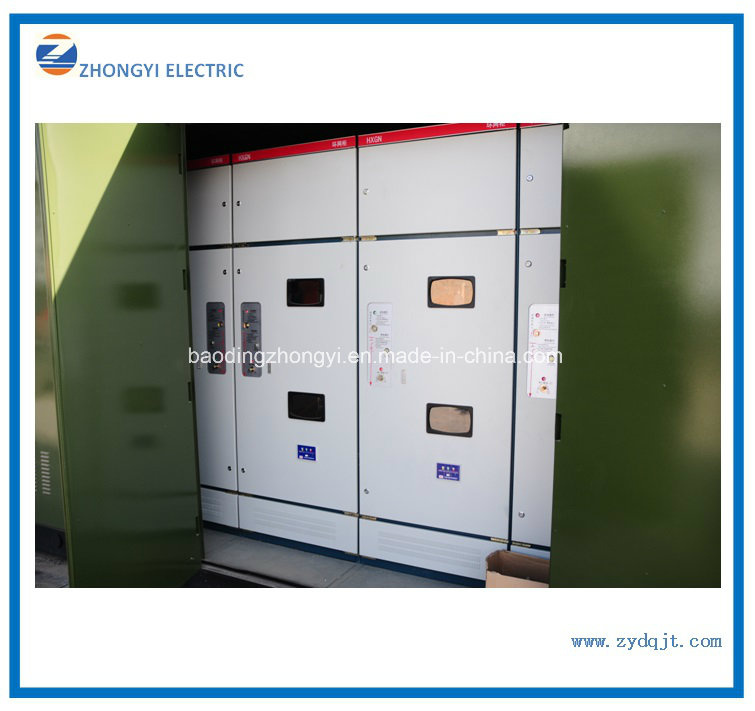

Model KYN28A-12 (GZS1-12)
Indoor AC Metal Clad Intermediate Switchgear Cabinet
KYN28A-12 (GZS1-12) Model Indoor AC Metal Clad Intermediate Switchgear Cabinet. It is suitable for three-phase AC rated voltage 12KV, rated frequency 50Hz power system to receive and distribute the electrical energy and to control, protect and monitor the circuit.
Meet the standard: GB3906-97 3-35KV AC Metal-enclosed Switchgear, GB11022-89 High-voltage Switchgear General Technical Conditions, IEC298 (1990) AC Metal-enclosed Switchgear and Control Equipment With Rated Voltage Above 1kv and 50kv or Below , DL404-97 Order Technical Conditions for Indoor AC High Voltage Switchgear Cabinet.
1. Metal-enclosed and separately arranged, with high protection Category
2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces
3. Protection Category of enclosure reaches to IP4X,
4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining
Environmental Requirement
Normal Operation Conditions
1. Altitude 1000m
2. Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
3. Relative humidity: daily relative humidity 95% on average; monthly relative humidity 90% on average
4. Seismic scale of earthquake 8
5. The switchgear is applicable to category II contaminated environment.
Special Operation Conditions
If the switchgear will be used in conditions that exceed the normal environmental conditions, users shall
negotiate with the manufacturer.
The switchgear is mainly used in power plants, small- and mediumsized power generators, industrial and mining enterprises, and secondary substations of power system for power receiving, power transmission, and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
Our main products:
oil-immersed power transformers,
dry-type transformers,
box-type substation,
medal enclosed ring network power distribution switchgear box
and a variety of special-type transformers.
Certifications
