Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. >> Box Type Seal Metal Power Distribution Cabinet/Electrical Switchgear/Electric Cabinet

Box Type Seal Metal Power Distribution Cabinet/Electrical Switchgear/Electric Cabinet

Box Type Seal Metal Power Distribution Cabinet/Electrical Switchgear/Electric Cabinet
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: KYN28-12
Name: Power Distribution Cabinet/Electrical Switchgear/E
Reted Frequency: 50Hz/60Hz
Application: Industrial, High-Rise Buildings
Standard: ISO9001:2008/IEC Standard
Rated Voltage: 12kv
Room Design: H.V.Transformer and L.V.Room
Switch: Cabinet Box
Special Service: Customized
Switchgear: Hv/LV
Signal: Continuous

Product Description

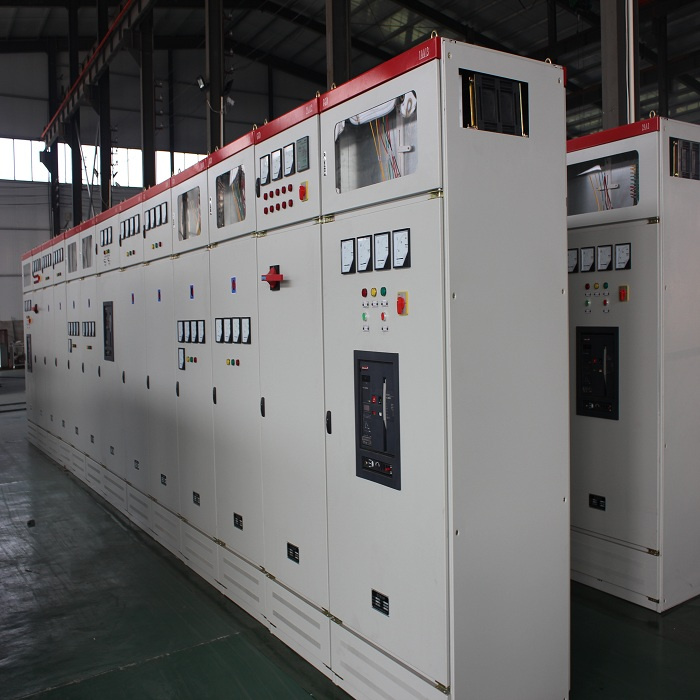

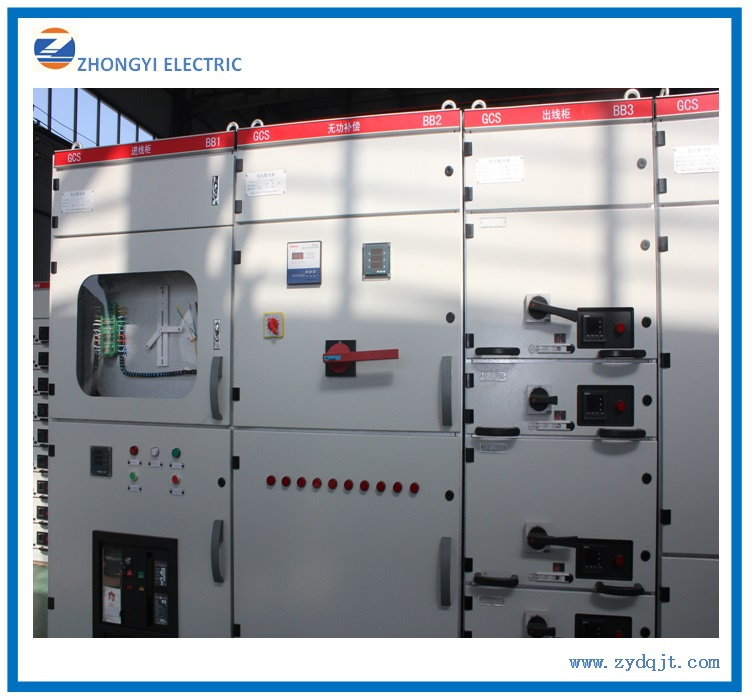

Box Type Seal Metal Power Distribution Cabinet/Electrical Switchgear/Electric Cabinet









Product Description


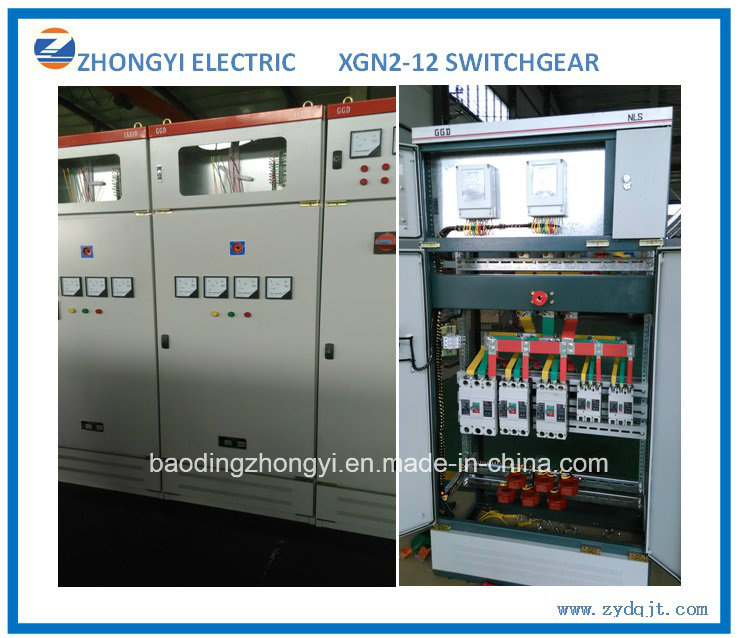

High and Low Voltage Complete Sets of Series Products

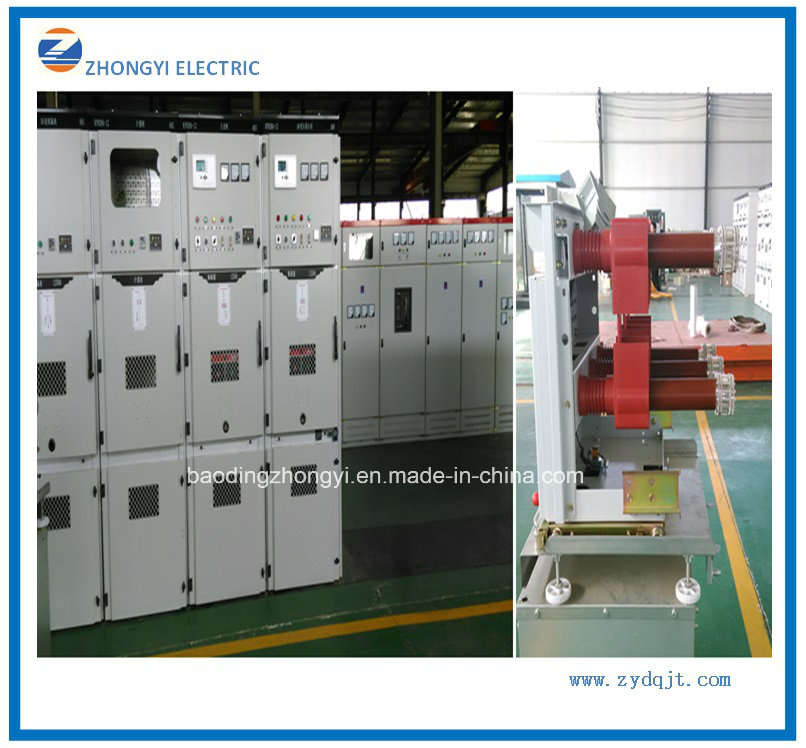

Model KYN28A-12 (GZS1-12)



Indoor AC Metal Clad Intermediate Switchgear Cabinet



KYN28A-12 (GZS1-12) Model Indoor AC Metal Clad Power Distribution Cabinet/Electrical Switchgear/Electric Cabinet. It is suitable for three-phase AC rated voltage 12KV, rated frequency 50Hz power system to receive and distribute the electrical energy and to control, protect and monitor the circuit.



Meet the standard:


GB3906-97 3-35KV AC Metal-enclosed Switchgear,
GB11022-89 High-voltage Switchgear General Technical Conditions,
IEC298 (1990) AC Metal-enclosed Switchgear and Control Equipment With Rated Voltage Above 1kv and 50kv or Below ,
DL404-97 Order Technical Conditions for Indoor AC High Voltage Switchgear Cabinet.



Features:

 1. Metal-enclosed and separately arranged, with high protection Category

2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces

3. Protection Category of enclosure reaches to IP4X,

4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining



Item

Unit

Specification

Rated Working Voltage

kV

7.2,12

1Min Power Frequency Withstand  Voltage

kV

32, 42

Lightning Pressing Voltage (Whole-Band)

kV

60, 75

Rated Frequency

Hz

50

Main Busbar Rated Currenct

A

630, 1250, 1600, 2000, 2500, 3150*

Sub-Busbar Rated Currenct

A

630, 1250, 1600, 2000, 2500, 3150*

3S Thermal Stability Currenct (Effective Data)

kA

16, 20, 25, 31.5, 40, 50

Rated Dynamic Stability Currenct (Peak Value)

kA

40, 50, 63, 80, 100, 125

Protection Categoty



Enclosure:IP4X, CB Compartment open: IP2X






 Environmental Requirement



Normal Operation Conditions
1. Altitude 1000m
2. Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
3. Relative humidity: daily relative humidity 95% on average; monthly relative humidity 90% on average
4. Seismic scale of earthquake 8
5. The switchgear is applicable to category II contaminated environment.



Special Operation Conditions
If the switchgear will be used in conditions that exceed the normal environmental conditions, users shall
negotiate with the manufacturer.



Application

The switchgear is mainly used in power plants, small- and mediumsized power generators, industrial and mining enterprises, and secondary substations of power system for power receiving, power transmission, and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.



Company Information

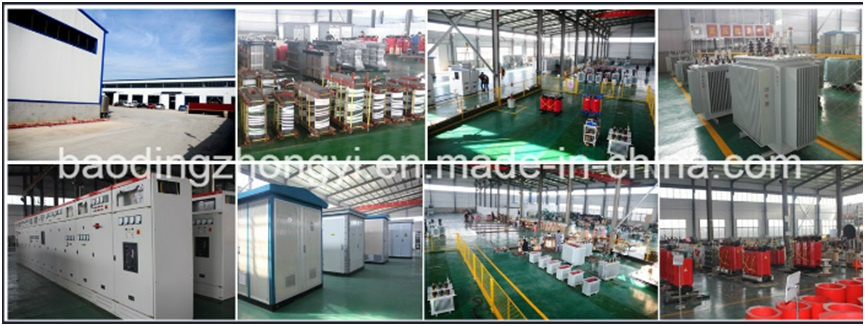

 Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.

Our main products:

oil-immersed power transformers,

dry-type transformers,

box-type substation,

Power Distribution Cabinet/Electrical Switchgear/Electric Cabinet

and a variety of special-type transformers.



The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

 The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .



Certificates:


Packaging and shipping:

 Packing:

1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.

4. Iron shelf

5. Special packaging: According to customer's requirement



Delivery Details : 10-20 days according to order quantities


FAQ:



Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes, we could offer the sample

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shippment.




Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.

The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.

Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.

Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
