12kv AC Sf6 Air Insulated Metal Clad Switchgear Cabinet

12kv AC Sf6 Air Insulated Metal Clad Switchgear Cabinet
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: Kyn28
Name: Air Insulated Metal Clad Switchgear
Reted Frequency: 50Hz/60Hz
Application: Industrial, High-Rise Buildings
Standard: ISO9001:2008/IEC Standard
Rated Voltage: 12kv
Room Design: H.V.Transformer and L.V.Room
Switch: Cabinet Box
Special Service: Customized
Switchgear: High Voltage/Low Voltage
Task: Adjust
Structure: Closed-Loop
Mathematical Model: Linear
Signal: Continuous
Certification: CCC

Product Description

Factory Kyn28 type High Voltage Electrical Switch 12kv AC SF6 Air Insulated Metal Clad Switchgear cabinet









Product Description


High and Low Voltage Complete Sets of Series Products

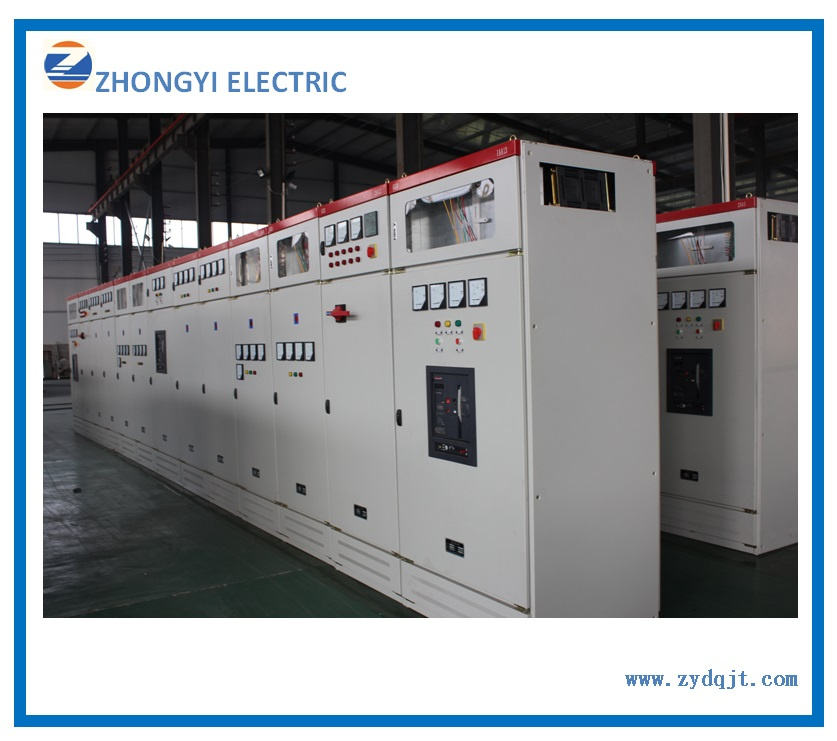

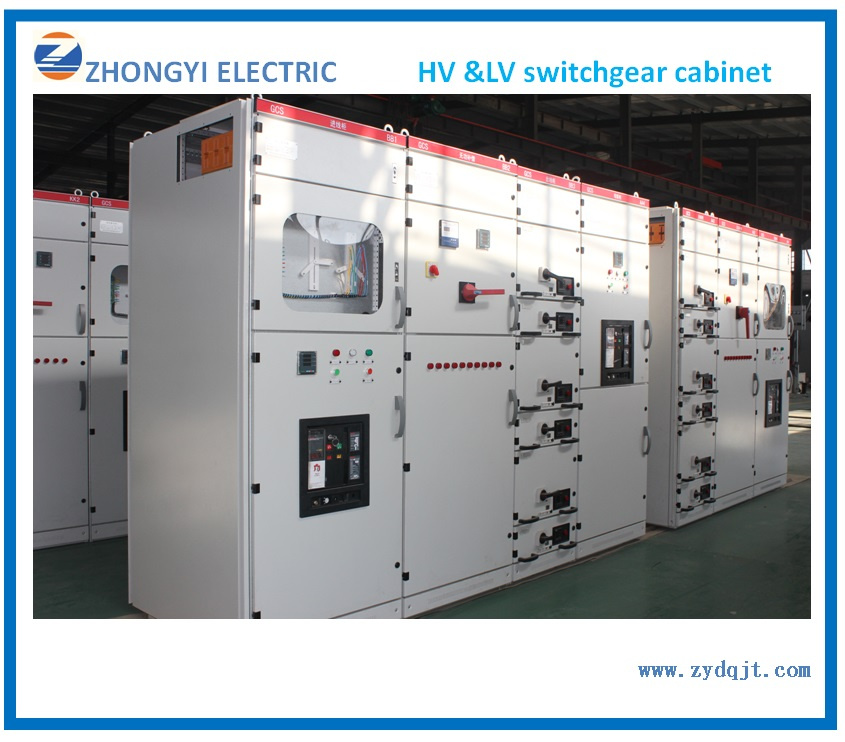

Model KYN28A-12 (GZS1-12)



Indoor AC Metal Clad Intermediate Switchgear Cabinet



KYN28A-12 (GZS1-12) Model 12kv AC SF6 Air Insulated Metal Clad Switchgear cabinet. It is suitable for three-phase AC rated voltage 12KV, rated frequency 50Hz power system to receive and distribute the electrical energy and to control, protect and monitor the circuit.



Meet the standard: GB3906-97 3-35KV AC Metal-enclosed Switchgear,
GB11022-89
 High-voltage Switchgear General Technical Conditions,
IEC298 (1990)
AC Metal-enclosed Switchgear and Control Equipment With Rated Voltage Above 1kv and 50kv or Below ,
DL404-97
Order Technical Conditions for Indoor AC High Voltage Switchgear Cabinet.



Features:

 1. Metal-enclosed and separately arranged, with high protection Category

2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces

3. Protection Category of enclosure reaches to IP4X,

4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining



Item

Unit

Specification

Rated Working Voltage

kV

7.2,12

1Min Power Frequency Withstand  Voltage

kV

32, 42

Lightning Pressing Voltage (Whole-Band)

kV

60, 75

Rated Frequency

Hz

50

Main Busbar Rated Currenct

A

630, 1250, 1600, 2000, 2500, 3150*

Sub-Busbar Rated Currenct

A

630, 1250, 1600, 2000, 2500, 3150*

3S Thermal Stability Currenct (Effective Data)

kA

16, 20, 25, 31.5, 40, 50

Rated Dynamic Stability Currenct (Peak Value)

kA

40, 50, 63, 80, 100, 125

Protection Categoty



Enclosure:IP4X, CB Compartment open: IP2X

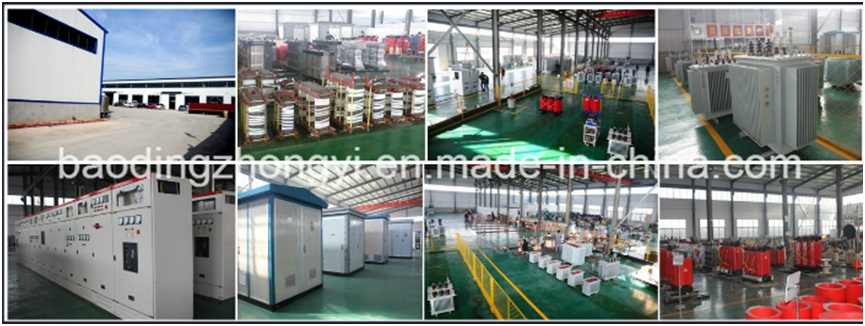

our factory








 Environmental Requirement



Normal Operation Conditions
1. Altitude 1000m
2. Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
3. Relative humidity: daily relative humidity 95% on average; monthly relative humidity 90% on average
4. Seismic scale of earthquake 8
5. The switchgear is applicable to category II contaminated environment.



Special Operation Conditions
If the switchgear will be used in conditions that exceed the normal environmental conditions, users shall
negotiate with the manufacturer.



Application

The switchgear is mainly used in power plants, small- and mediumsized power generators, industrial and mining enterprises, and secondary substations of power system for power receiving, power transmission, and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.



Company Information

 Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.

Our main products:

oil-immersed power transformers,

dry-type transformers,

box-type substation,

12kv AC SF6 Air Insulated Metal Clad Switchgear cabinet

and a variety of special-type transformers.



The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

 The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .

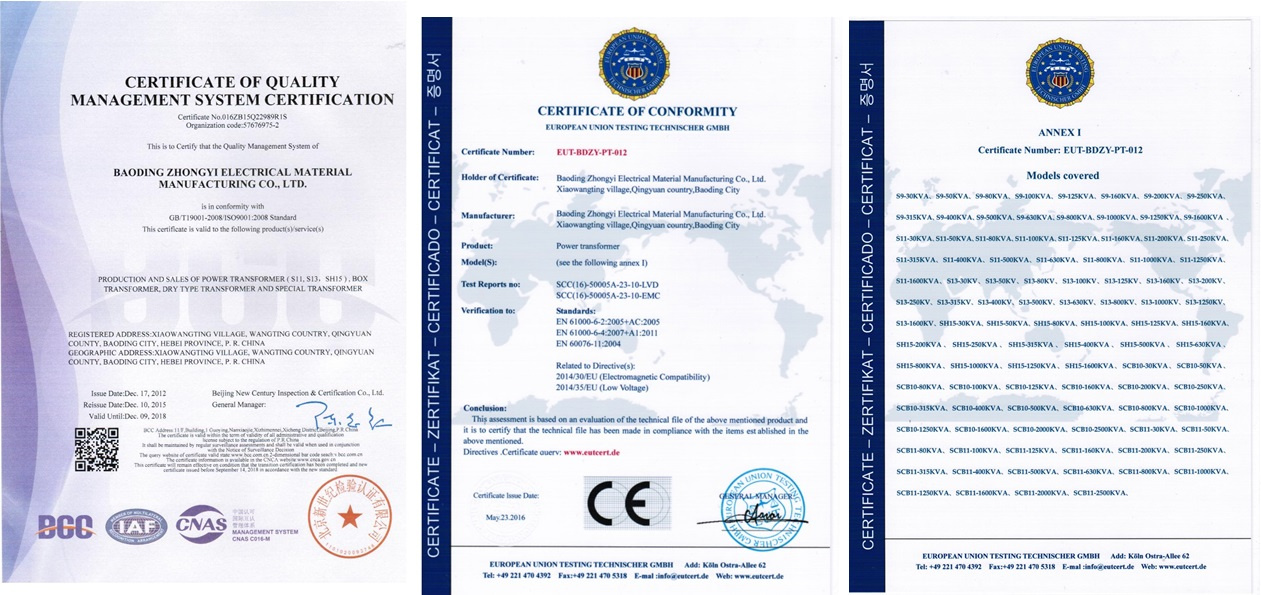

Certificates:
