Efficient Safe Heavy Oil Burner for Industry Boilers and Heaters
| Price: |
US $ 600/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LB-51; LB-61; LB-81 |
| Size(mm): |
617*422*492 |
| Fuel Volume: |
20-40;25-50;35-70 |
| Electric Machinery: |
0.4kw |
| Power Supply: |
380V |
| Electric Heater: |
1.5kw |
| Control Type: |
on-off/Hi-Low |
Product Description

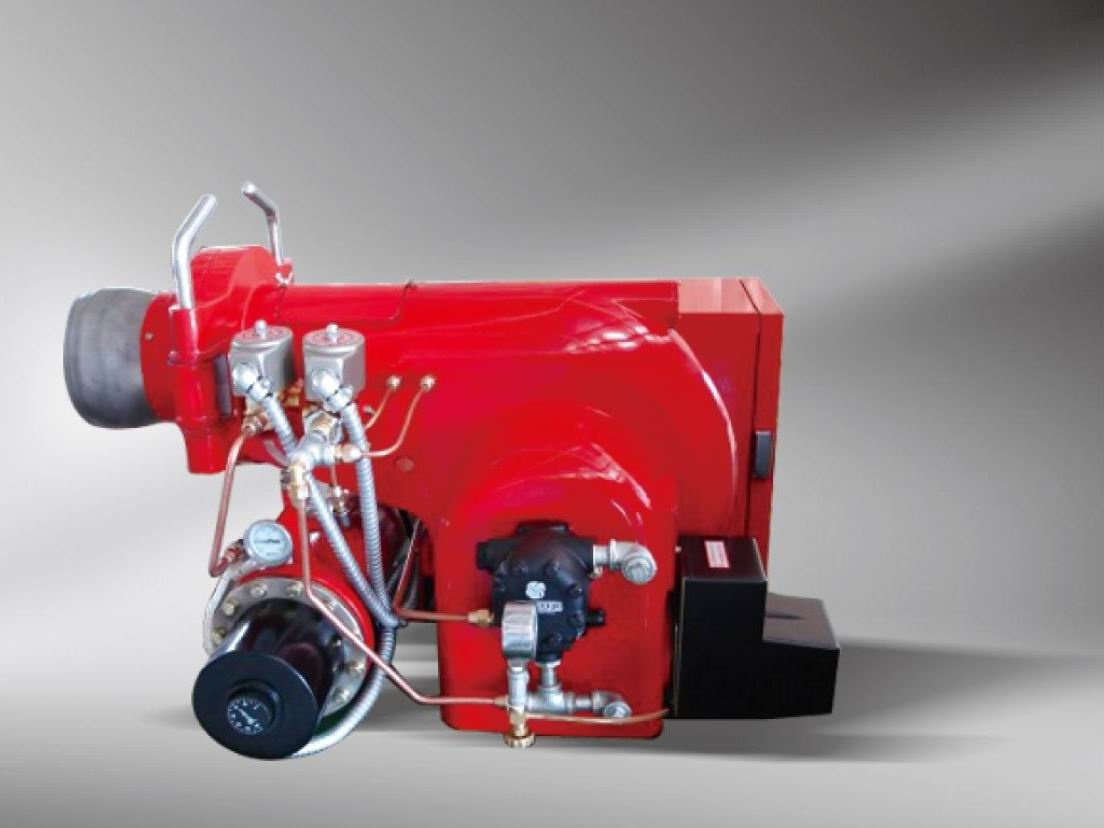

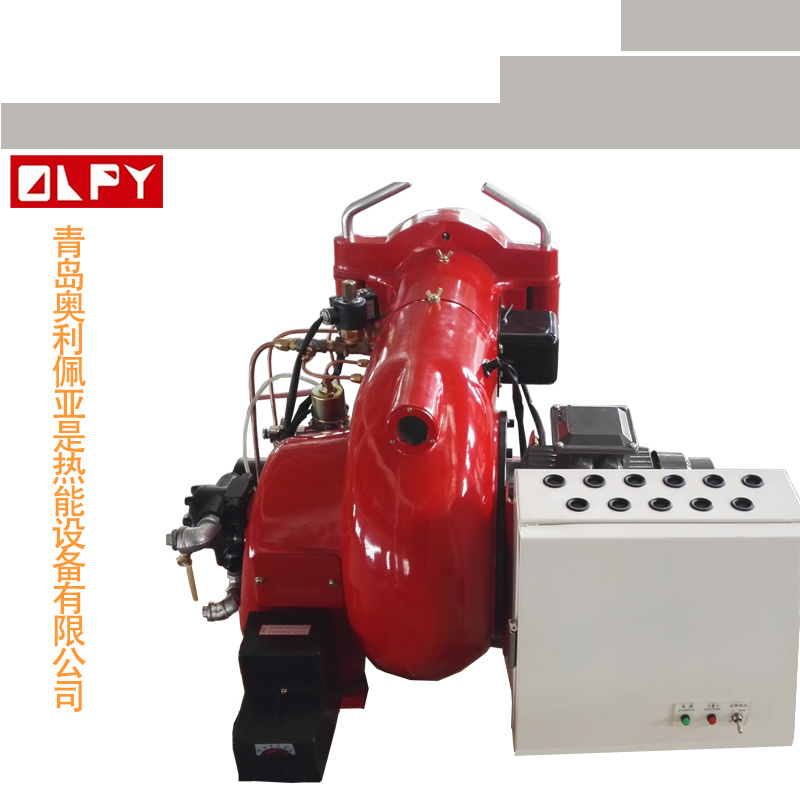

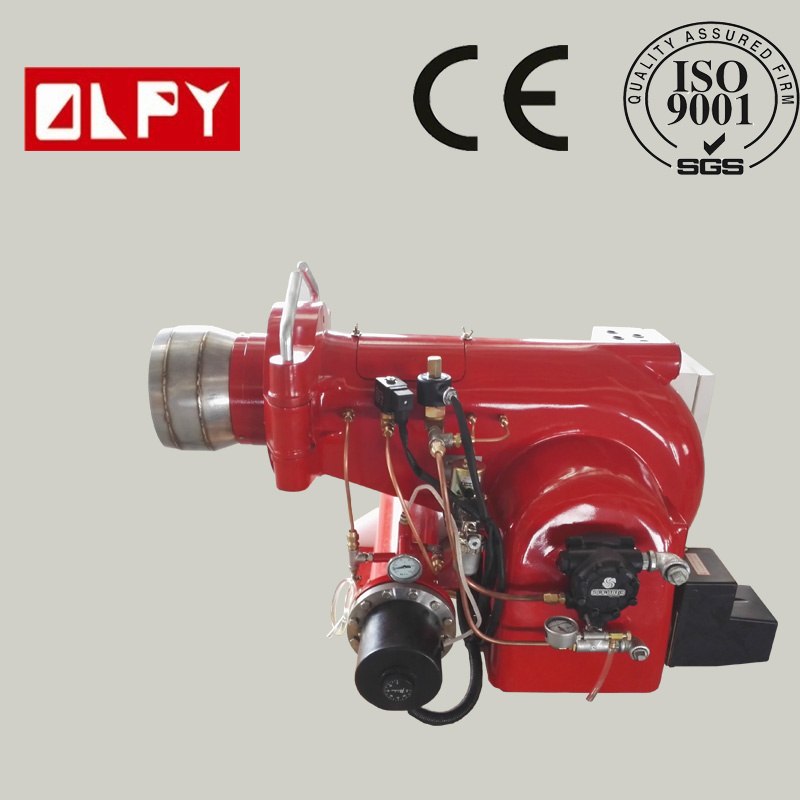

Heavy Oil Burner for Industry Boilers and Heaters
Application scope: Suitable for small and medium hat water,steaming hot furnace type,adopting the rotary flange,convenient to installation,maintenance,belongs to the backbone product.More details:
The Olympia oil burner is offered in a number of models in order to meet different applications and conditions.
The most suitable burner can be chosen according to desired characteristics and the kind of fuel to be used, with products offered for both household and industrial use. LB SERIES OIL BURNERS (HEAVY OIL / TURBO FAN)
The LB Series Oil Burners (heavy oil / turbo fan) include burners of a medium to large size suitable for heavy oil. The fuel is heated while being circulated to the nozzle, thus can provide excellent ignition and stable combustion. This series consists of a medium to large size models, and is equipped with a turbo fan to serve the purpose under a high combustion chamber pressure. SIMPLE CONSTRUCTION AND
EXCELLENT COMBUSTION CHARACTERISTICS
For easy handling and maintenance, the Olympia oil burner is designed to be of simplest possible construction. In addition, our burner is based on a stringent design concept in ignition and combustion characteristics including stable flames, backed up by a thorough test berore release on the market; Thus, it should satisfy need of the customer. GREAT ECONOMY
Each and every component of the Olympia oil burner is elaborated to match the characteristics of an individual model so that the burner can contribute to overall energy economy with the resultant high cost performance. Description of Burners of LB series:1.Reasonable structure:
Compact configuration is adopted in the assembly of the combustion motors,programming controller and safety device etc in the machine.Thus .it is concise and practical.
2.Safety
Olympia gas burners is adapted with external mixing combustion method, thus eliminating the inverse fire danger .At the same time guarantee the stable combustion flame, burning and control device designed to meet the safety requirements of gas cookers.
3.Maintenance and overhaul:
This product design makers for movement and tear open outfit ,therefore, it is more likely to overhaul, clean and other maintenance.Technical parameter: | Type | fuel quantity (KG/H) | motor power | power supply | control type |
|
| LB-51 | 20-40 | 0.4 | 380V | ON-OFF/HIGH-LOW |
|
| LB-61 | 25-50 | 0.75 | 380V | ON-OFF /HIGH-LOW |
|
| LB-200 | 80-160 | 3.7 | 380V | HIGH-LOW/dual fires |
|
2: mannual book in english
3:technical drawing
4:experienced engineers' guidance
