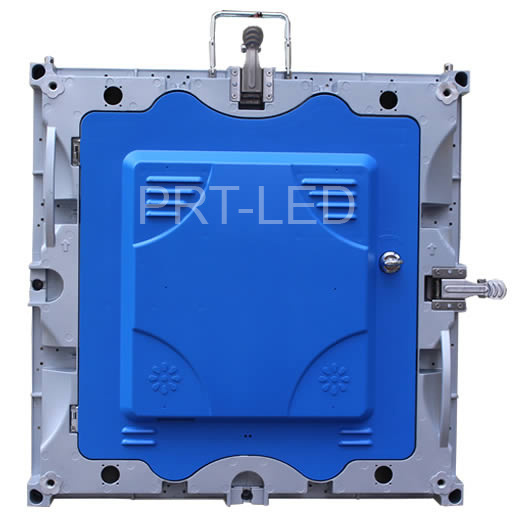

Die-Casting 576mm*576mm Rental LED Billboard Cabinet for Outdoor/Indoor P6
| Price: |
US $ 850-1000/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P6 |
| LED Encapsulation: |
SMD3535 |
| Module Size: |
192X192mm |
| Cabinet Size: |
576X576mm |
| Protection Grade: |
IP65 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777dots/Sq.M |
| Application: |
Advertising, Stage Performance, Rental |
Product Description
Full color P6 Outdoor LED Display Board with size 576x576mm for outdoor permanent install or rental,with high brightness and good waterproof, high resolution and good performanceProduct features:
1.Waterproof IP65,good for outdoor rental,small size is available
2. SMD led encapsulation confirm wide view angle and slim board
3.High brightness up to 6000nits,long view distance, Good uniformity

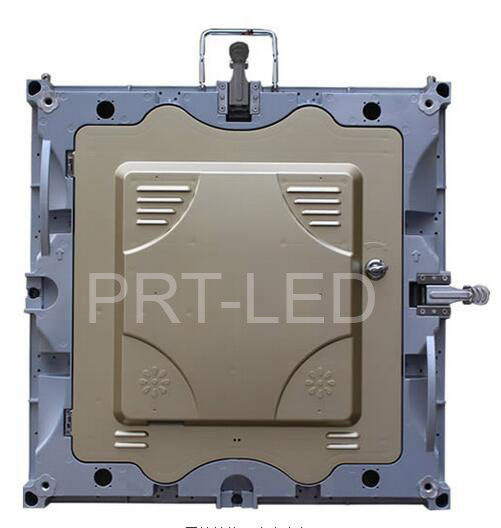

4.With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time
5.Die-casting cabinets confirm the strong configuration and lasting
6.low power consumption, No fans,no noise created, energy-saving and good environment protection
7.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network

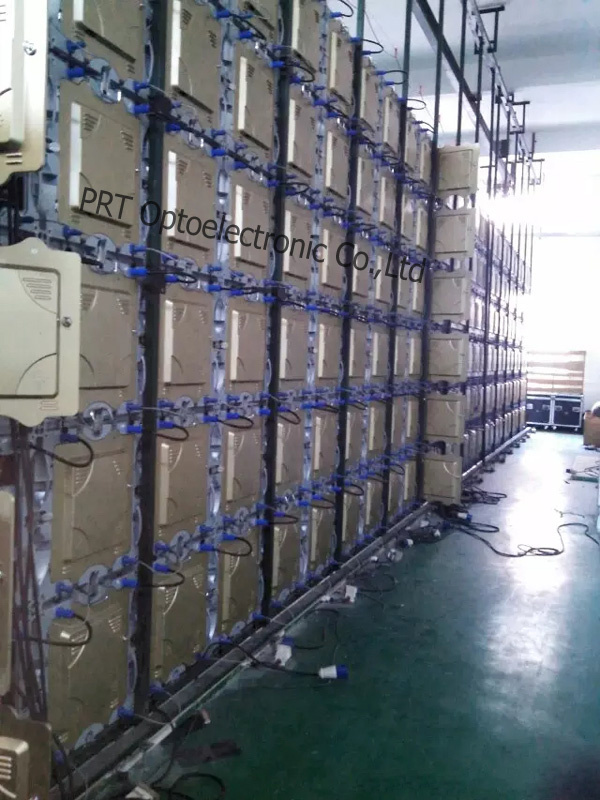

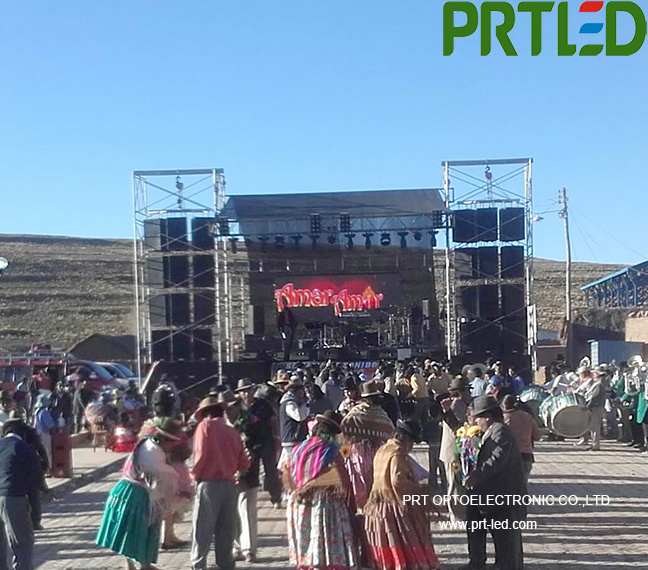

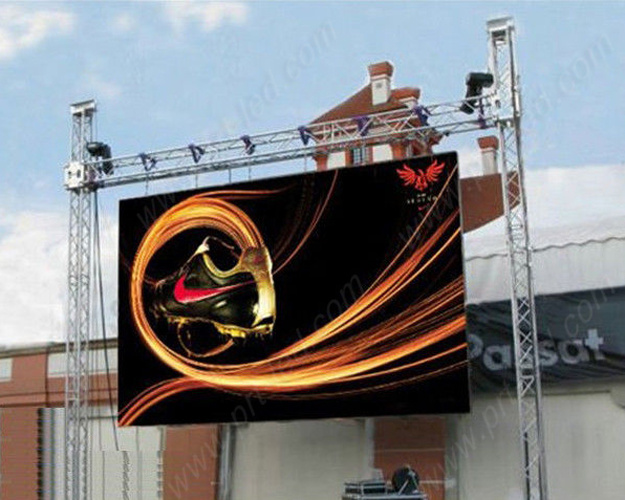

8.Widely used for commercial advertising,stage,show,event background screen,mobile led sign. traffic message board,sports stadium perimeter display etc.More pictures for reference:
| P6 Outdoor full Color LED Screen Specification |
| Pixel pitch | 6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 192mm x 192mm |
| Resolution of module | 32x32dots |
| Size of cabinet | 576mm x 576mm x 65mm |
| Resolution of cabinet | 96x96dots |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 12KGS |
| Brightness | >6000cd/sq.m |
| Density | 27777dots/sq.m |
| Best viewing angle | 140 /140 |
| Best viewing distance | 6-80M |
| Maximum power consumption | <1000W/sq.m |
| Average power consumption | <400W/sq.m |
| Driving method | 1/8 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >2000Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
