| Prod Model: |
P4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
576X576mm |
| Cabinet Material: |
Aluminum Profile |
| Module Size: |
288X288mm |
| Module Resolution: |
144X144dots |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
FCC |
| Pixel Density: |
62500 |
| System Operating Platform: |
Win XP,Win 2000 |
Product Description

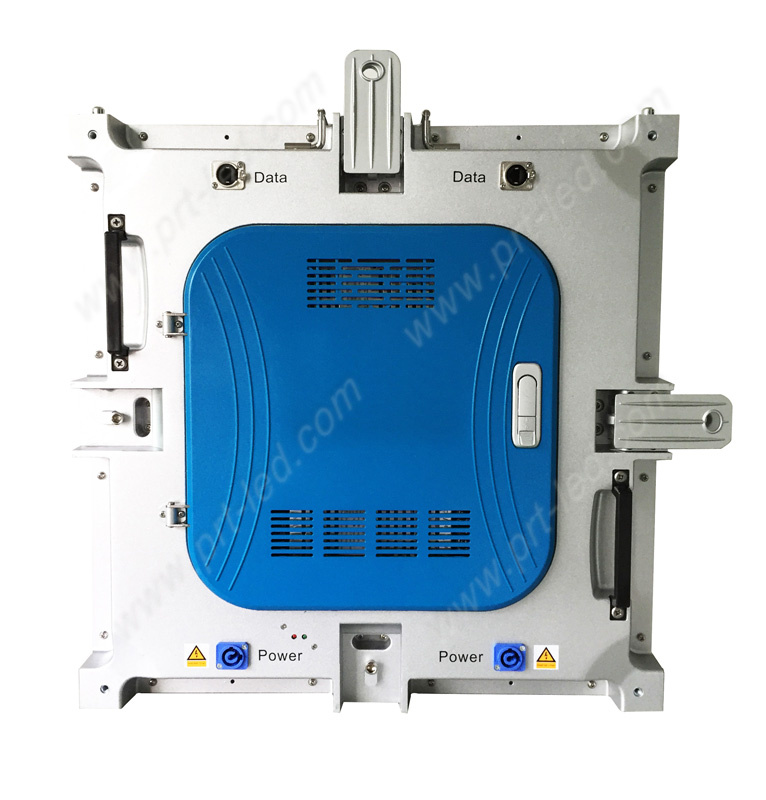

576x576mm Die-cast Aluminum LED Cabinet for indoor rental, suit for P4/P4.8/P5.33/P6
Product features:
1.Die-cast Aluminum material make cabinet structure light weight and lasting
2.Slim and small cabinet size of 576× 576× 60mm, with only 10.5 kgs
3.The cabinet is portable,convenient to transport and collect, and packed with flight cases, can move to any where,
4.Rental design, easy to install and dismantle without any tools, save much time
Can be suspend or fixed installation, Seamless splicing
5.Seamless spliced, good performance
6.Wide view angle, good heat dissipation
7.No fan, Lower noise,lower power consumtion
Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.
Rental P4 Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 4.0 |
| Pixel Density | Dots/sq.m | 62500 |
| Pixel Configuration |
| Black body SMD2121 |
| Cabinet Resolution | dots | 144×144 |
| Refresh Rate | Hz | ≥1200 |
| View Angle(H/V) | ° | 150/120 |
| Brightness | nits | ≥1500 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 43 |
| Power Consumption(Max/Avg) | W/sq.m | 1600/600 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 576×576 |
| Cabinet Material |
| die-cast Aluminum |
| Cabinet Weight | Kg | 10.5 |
| Module Size(W×H) | mm | 288×288 |
| Environment |
| Operation Temperature |
| -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/16 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
