| Prod Model: |
P8-640x640 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Type: |
SMD3535 |
| Module Size: |
320X160mm |
| Module Resolution: |
40X20dots |
| Cabinet Size: |
640X640mm |
| Cabinet Material: |
Die-Casting Aluminum |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Display Type: |
LED Video Display |
| Certification: |
FCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625dots Per Sqm |
| Scanning Mode: |
1/5scan |
| Application: |
Stage Performance, Advertising |
Product Description

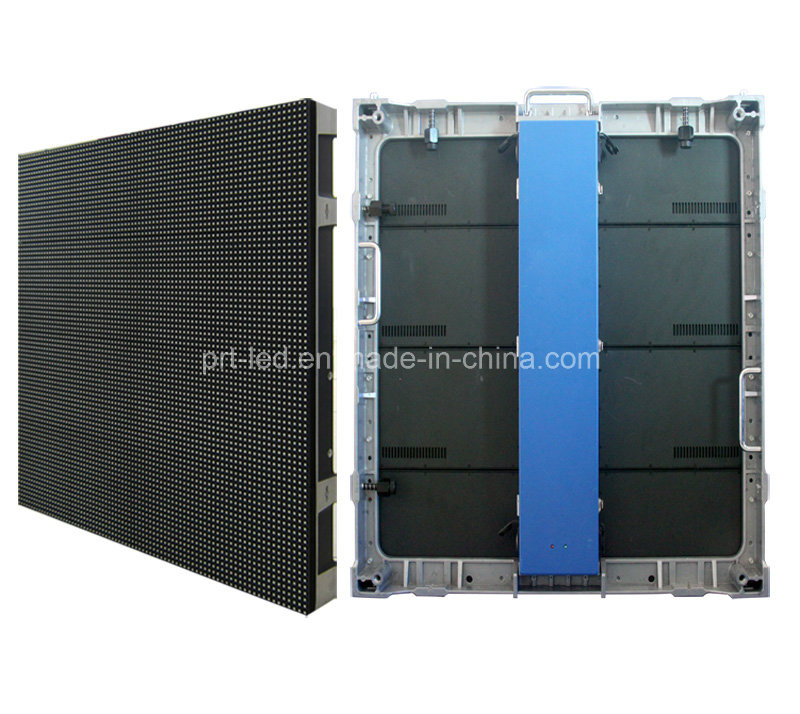

640x640mm Die-cast Aluminum LED Cabinet of P8 for outdoor advertising with SMD3535 LEDS,wide view angle,high brightness and goos waterproof IP65
1. Made with Die-casting aluminum material,high quality and lasting
2. With small panel size of 640X640mm,ensure light weight,is portable by hands, easy to install and convenient to transport
3. Simple configuration,beautiful outlooking
4. High Definition ,high brightness up to 5500nits,close view distance
5. Dot-to-dot maintanance,easy to dismantle the module,and convenient to maintain
6. This cabinet design also suit to outdoor SMDP6.67,SMD P8, SMDP10
| Outdoor P8 Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 8.0 |
| Pixel Density | Dots/sq.m | 15625 |
| Pixel Configuration | | SMD3535 |
| Cabinet Resolution | dots | 80×80 |
| Refresh Rate | Hz | ≥1920 |
| View Angle(H/V) | ° | 140/140 |
| Brightness | nits | ≥5500 |
| Gray Scale | Bit | 16 |
| IP Rating | | 65 |
| Power Consumption(Max/Avg) | W/sq.m | 700/300 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 640×640 |
| Cabinet Material | | Die-casting Aluminum |
| Cabinet Weight | Kg | 10 |
| Module Size(W×H) | mm | 320×160 |
| Environment |
| Operation Temperature | ºC | -10~+50 |
| Operating Humidity | | 10%~90% |
| Driving Mode | | 1/5 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
