576X576mm Aluminum LED Display Panel/Cabinet for Indoor P4.8/P5.33/P6
| Price: |
US $ 900-1000/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P4.8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
576X576mm |
| Cabinet Material: |
Aluminum Profile |
| Module Size: |
288X288mm |
| Module Resolution: |
60X60dots |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
FCC |
| Pixel Pitch: |
4.8mm |
| Pixel Density: |
46402dots/Sq.M |
| Scanning Mode: |
1/15 |
| System Operating Platform: |
Win XP,Win 2000,Win7/8 |
| IP Rating: |
IP31 |
Product Description

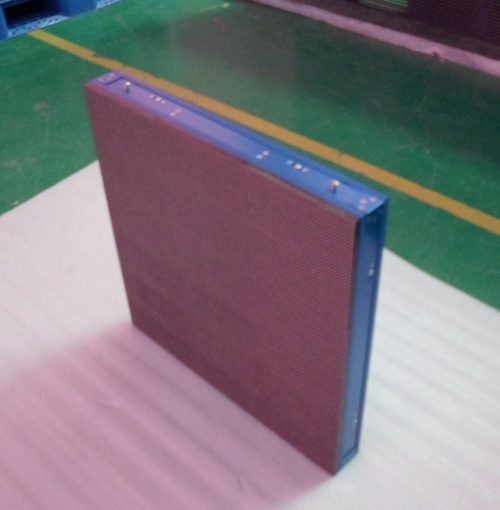

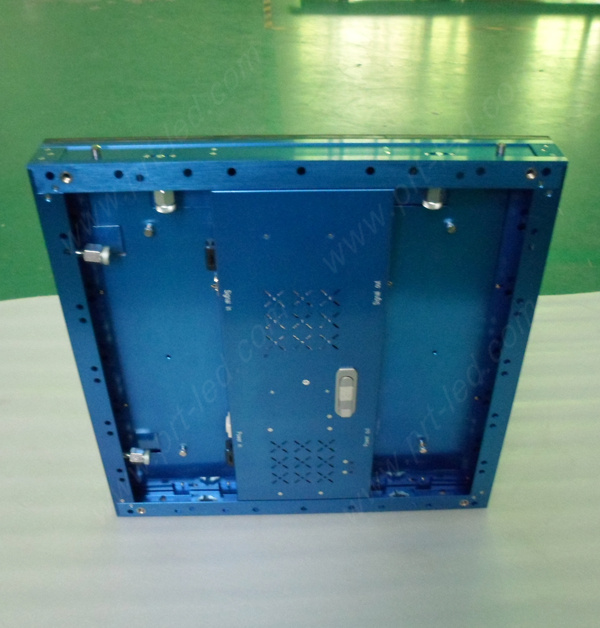

576x576mm Aluminum Profile LED Panel/ abinet for indoor P4.8/P5.33/P6,rental or permanent fixed install,slim thickness,good uniformityProduct features:1.Aluminum material make the cabinet structure light weight and cheaper cost
2.Slim and small cabinet size of 576× 576× 60mm, with only 10kgs

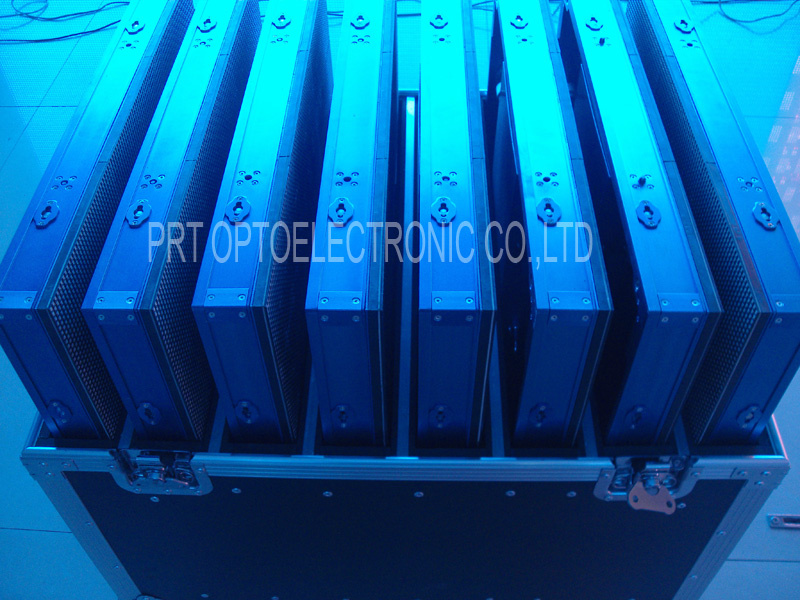

3.The cabinet is portable,convenient to transport and collect, and packed with flight cases, can move to any where,
4.Rental design, easy to install and dismantle without any tools, save much time.Can be suspend or fixed installation, Seamless splicing
5.Wide view angle, good uniformity, true color display
7.No fan, Lower noise,lower power consumtion,good heat dissipation

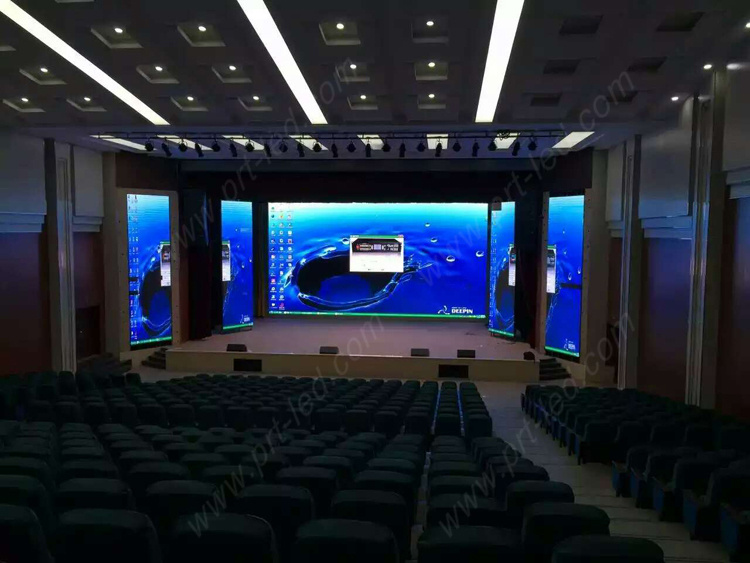

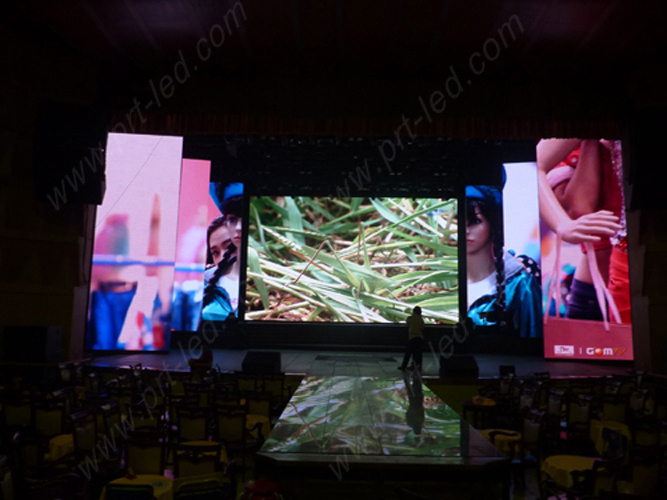

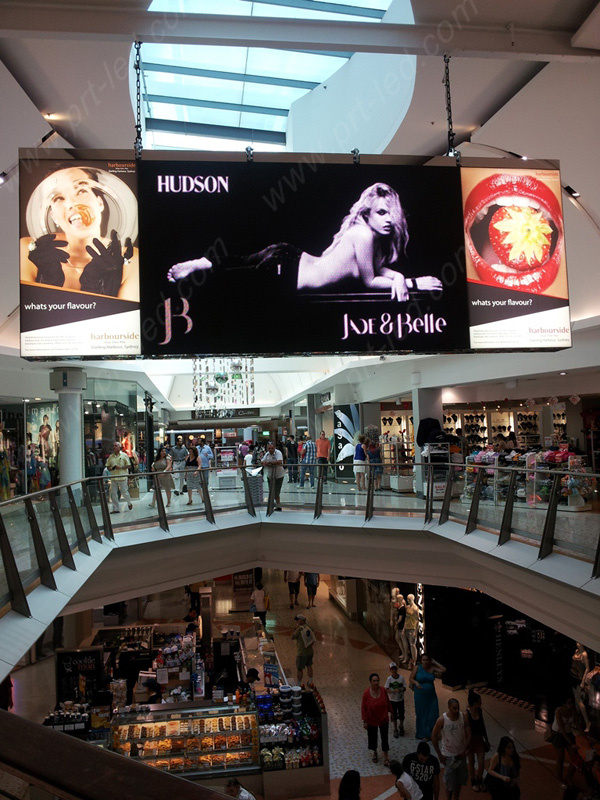

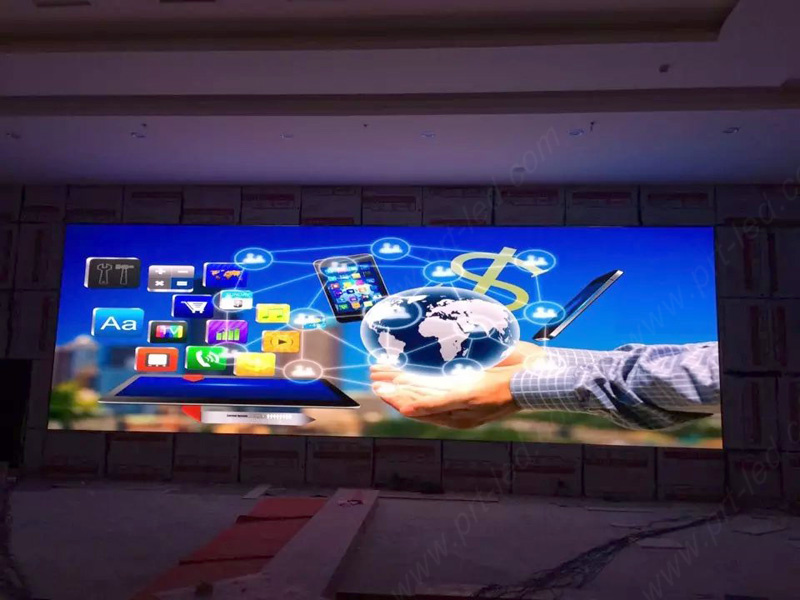

Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.
| P4.8 SMD3528 Indoor full Color LED Screen Specification |
| Pixel pitch | 4.8mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3528 |
| Size of module | 288mm*288mm |
| Resolution of module | 60x60 |
| Size of cabinet | 576mm x 576mm x 60mm |
| Resolution of cabinet | 120x120 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 10.50KGS |
| Brightness | >1500cd/ |
| Density | 43042dots/ |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-50M |
| Maximum power consumption | 1200W/ |
| Average power consumption | 640W/ |
| Driving method | 1/15 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
