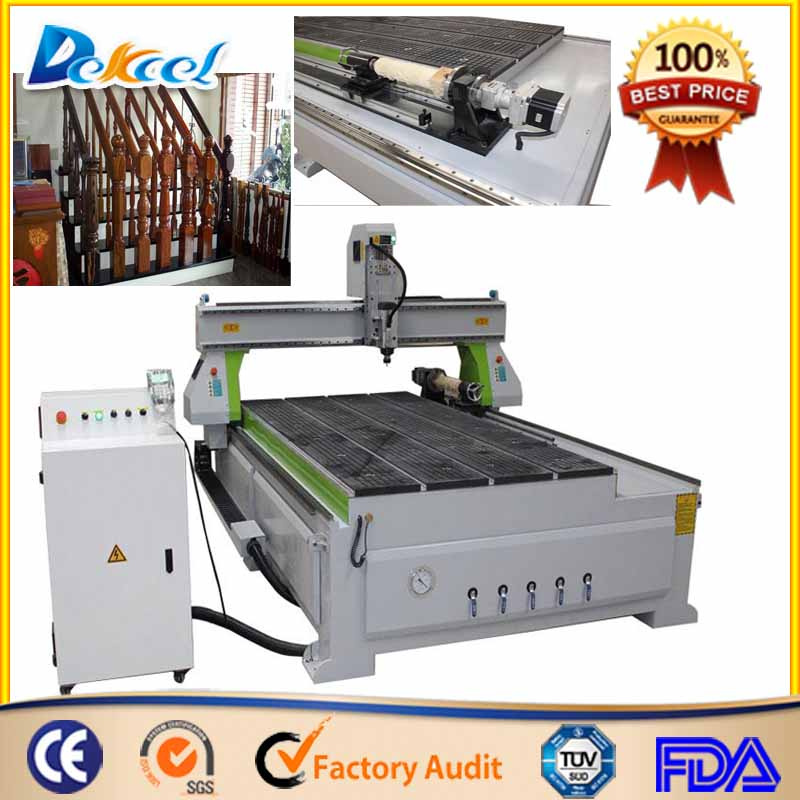

China Factory Wood Engraving CNC Router Machine for Furniture Industry

China Factory Wood Engraving CNC Router Machine for Furniture Industry
Price: US $ 16500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: DEK-1325
Power(W): 4.5kw
Dimension(L*W*H): 3070X1970X1550mm
Weight: 1600kg
Engraving Speed: 12000mm/Min
Spindle: 4.5kw Air Cooling Spindle
Software: Type3, Artcut, Artcam, Ucancam
Table: T-Slot and Vacuum Working Table
Control System: Taiwan Syntec/Weihong Nk300
Lathe Structure: Welding Steel Frame
Type: Engraving Router
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Customized: Customized
Color: Customized

Product Description

Feature of wood engraving cnc router machine:
1.Dek-1325 machine is specially designed for woodworking, metal and advertisement.It has high precision, fast speed, cost-effective.
2.By the way of seamless welding and vibrating treatment, the lathe bed steel structure is firm, durable, strength steel and non-deformation.
3.Computer cabinets and Weihong control system make the machine have good stability and high reliability.
4.Using automatic lubrication system, it's convenient for maintenance.
5.Owns more functions of power-off restoration, continuation on break point, working time anticipation etc.
6.XYZ axis adopt high-precision linear and square rail from Yintai in Taiwan.High-precision and durable  no-learance rolling ball screws for Z axis, it's imported from Yintai brand in Taiwan, rack
Drive for  X Y axis, high-precision, faster and better efficiency.

Application of cnc woodworking router machine
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving
5.Cylindrical object

Techinical parameter of China Factory cnc router machine for wood engraving:

Working area:

1300*2500*300mm

Spindle type:

Water-cooling spindle

Spindle power

4.5KW

Spindle rotating speed

0-18000rpm

Power (except spindle power)

5.8KW (include powers of: motors, drivers, inverters and so on)

Power supply:

AC380±10,  50 HZ

Worktable:

T-slot and vacuum table combined ,4 vacuum zone with clamps

Locating precision:

<0.01mm

Min shaping character:

Character:2x2mm,letter:1x1mm

Operating temperature:

5°C-40°C

Working humidity

30%-75%(without condensed water)

Working precision

±0.03mm

System resolution

±0.001mm

Control configuration:

Weihong control system /Syntec control system

Data transfer interface:

USB

System environment:

windows 7

Graphic format supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible software

ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares.

Cutting thickness:

0-40mm also (depends on different material)

Z tool censor:

 yes

packing

Plywood case (veneer wood case for export)

 Optional parts

 1. Vacuum water pump / Vacuum oil-free pump
 2. Double-head or multi-heads
 3.Air cooled type spindle (China or Italian brand air spindle)
 4.Smaller power spindles
 5.Servo motors (China or Japan brand)
 6.Weihong NC Control system ,Taiwan Syntec or DSP control system
 7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
 8.Mist spay cooling system
 9.Dust collector
10.their features could be customized accordingly

After service
1.1.5 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
About payment
We accept TT or Western Union. Paypal.
Before you pay,we will make Proforma Invoice for you.all items will listed on there.
About shipment
by sea or by air for your optional.

About delivery time:
As the manufacturer ,we pay more attention to the quality .So the machine will be tested well then send it to you.The delivery time is about 7-10 working days .because we must ensure all things are ready,then can send the machine to you.
