| Prod Model: |
DEK-10WF20WF30WF |
| Engraving Depth: |
0.01-0.2mm |
| Control Software: |
Ezcad |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf etc |
| Working Accuracy: |
0.001mm |
| Guaranty: |
24 Month |
| Quality Of Laser Beam: |
M2<1.5 |
| Engraving Speed: |
12000mm/S |
| Laser Length: |
1060nm |
| Minimum Line Width: |
0.01mm |
| Minimum Character: |
0.05mm |
Product Description

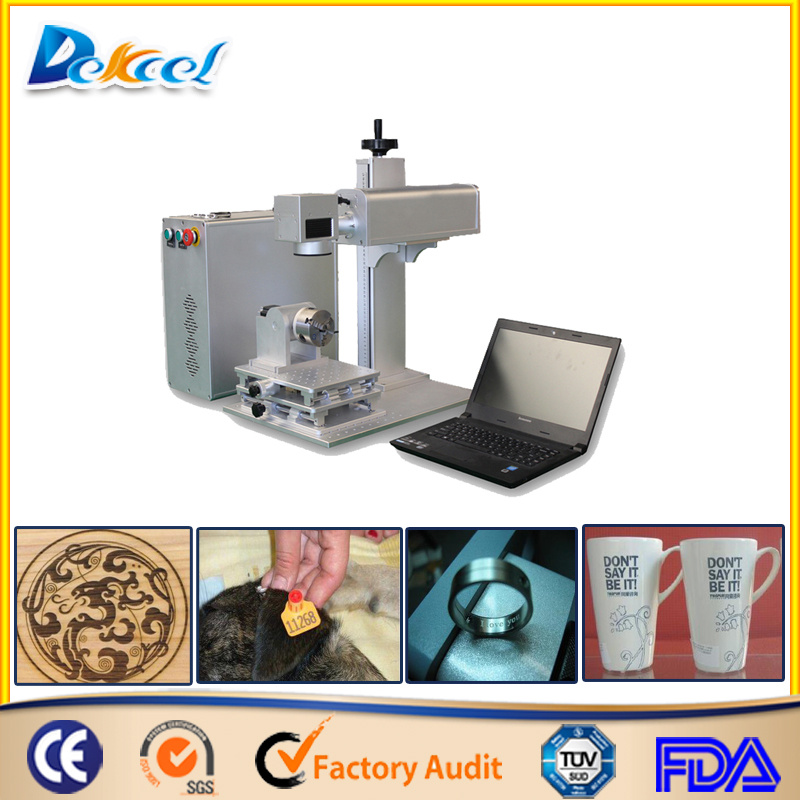

20W Rotary Fiber Laser Marking Ring/ Cup/Wood Crafts Machine 2D Table
Application of Rotary fiber 20w laser marking machine
Applicable Industry
Mainly used to mark on various plastic buttons and electric devices, to mark code on CMOS chip, color
paper and food package. It can also be used in the scope with high requirements, such as clock, jewelry
, module, bitmap marking etc.
Product features of fiber 20w laser marking machine arts
1.Marking for many type metals and some nonmetallic material
2.110*110mm 220*220mm 300mm*300mm Marking Area (Optional)
3.10W 20W 30W laser power (Optional)
4.Desktop or Hand-held model (Optional0
Technical Parameters of 2D table fiber laser marking machine arts
| Laser Source | Fiber Laser |
| Output Power | 50W/30w/20w/10w |
| Wavelength | 1060nm |
| Beam Quality | <2 |
| Repeat Frequency | 10khz--- 100khz |
| Pulse Energy | 2mJ |
| Beam Divergence | -0.3 to +0.3mrad |
| Laser Class | IV |
| Resolution | 18μ |
| Repeatablility | 50μ |
| Marking Scope | 110mmx 110mm/ 200*200/300*300 (optional) |
| Linear Speed | 800 character/ s |
| Marking Linear Speed | ≤12,000mm/s |
| Marking Depth | Max. 1.0- 1.5mm (hard steel) |
| Min. Line Width | 0.012mm |
| Min. Character Size | 0.15mm |
| Repeat Accuracy | ±0.003mm |
| Input Power | 0.5kw |
| Electrical Source | 110v/220V / |
Compact OF fiber 20w laser marking machine wood cup with rotary
1.The size of the Moving Table Portable Fiber Laser Marking& Engraving Machine System is very small, portable, suitable for both mobile and fixed
working.
2.10 years life,ultra-low running cost
3.Long life & ultra-low power consumption &t he conversion efficiency is more than 30%,
4.the unit power of the laser marking machine is no more than 0.5kw.
Easily Operating
Afford the specific marking software based on Windows,
which is real-time adjust the laser power and pulse frequency.
You can input and output by computer according to edit in the both of the specific marking software and
he graphic software such as AutoCAD, CorelDRAW or Photoshop.
Professional Service
From producing in our factory to shipping the goods directly to your port or company,we supply all-in-one
service for our customer.With the rich experience of dealing with shipping issue and custom clearance,
we can make the most economical delivery plan for you and ensure the quick leading time. No matter
quantity is our MOQ or very big, we take each customer as the only one.
After-Sales Service
1.Quality guaranty:The main parts(excluding the consumables)of Moving Table Portable Fiber Laser Marking& Engraving Machine System shall be
changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of change.
3.Free training course at our plant.
Detailed manual and video to guide the users how to use the laser marking machine and maintenance,
also supply the specification settings for the speed and power to mark various materials.
Our staff can be sent to your company to install or adjust if necessary.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day,free technical support by email or calling.If you meet the problems,
we can help to solve it with pictures,video,etc
6.The Moving Table Portable Fiber Laser Marking& Engraving Machine System has been adjusted before delivery.
FAQ
Question1: What is the Superiority of fiber laser marking machine 20w fiber laser marker compared with ordinary laser marking machine?
Reply: 1 More fast marking speed
2 More stable, do not need to repair usually, the working life is about 100000 hours
3 The main parts are from abroad, like the fiber laser, Galvanometer
4 Portable
Questions2: I want to do marking for the round object with this machine, like ring, is it ok?
Reply: yes, no problem, with a rotary device, it will be ok.
Question3: Could I send some samples to you for test? We want to know the marking quality
of our order.
Reply: Of course no problem, welcome to send some samples to us, and we will test it with our machine,
then send the marked samples back to you for check
