| Prod Model: |
DEK-1325 |
| Model: |
Dek-1325 |
| Xyz Working Size: |
1300*2500*200mm |
| Machine Body: |
Whole Cast Iron Structure |
| Table Surface: |
T-Slot Table with PVC |
| Xy Structure: |
Gear Transmission |
| Z Structure: |
Ball Screw Drive, Round Rail |
| Spindle: |
3.0kw Water Cooling |
| Spindle Speed: |
0-24000 Rpm |
| Max. Rapid Travel Rate: |
16000 mm/Min |
| Max. Working Speed: |
8000 mm/Min |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Point to Point Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Application: |
Wood, Plastic, MDF, PVC etc |
Product Description

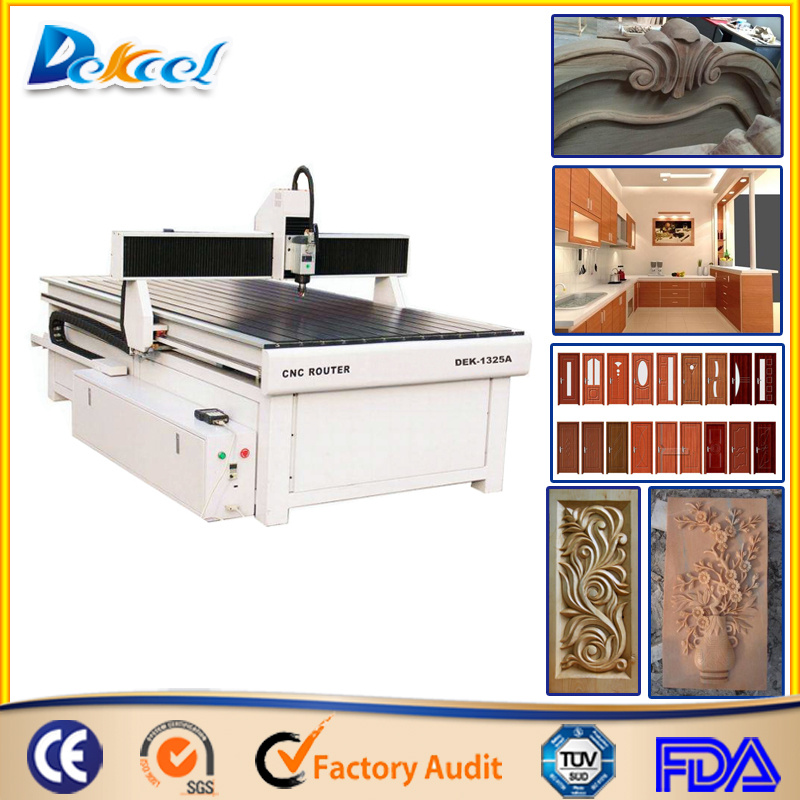

Customized 3D CNC Router Wood Door Furniture Cabinet Engraving 1325 Sale
Applicable industry and materials
(1)Furniture industry: suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
(2)Decoration industry: the wall, wave plates, advertising boards, sign making, acrylic, PVC, density board, organic glass, soft metals like aluminum and copper, etc.
(3)Craft industry: a variety of exquisite designs and text engraved on artificial stone, wood, bamboo, marble, organic board, color plates and other materials.
(4)Other wooden products: stereo box, computer desk, musical instruments, etc.suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Features of cnc wood door router 1325
1.The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
2.The major machine body makes the stability and no shacking in high speed.
XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
3.The professional mechanical design, scientific structure and generous appearance.
XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
High quality driver motor, spindle motor, cables, inverters, etc.
Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Techinical parameter of cnc wood door router 1325
| Technical specifications |
| Model | DEK-1325 | Optional |
| Working area (X*Y*Z,mm) | 1300*2500*200 | Customization is available
|
| Machine structure | Steel structure lathe bed and T-slot of sectional material | Square tube lathe bed ,vacuum system |
| Working holding | By clamps | By vacuum
|
| Transmision | XY axis gear rack, Z axis ball srew | |
| Guide rails | XYZ square guide rails | |
| Overall dimension | 3100*2060*1850 | |
| Precision(mm) | 0.07
| |
| Position accuracy(mm) | 0.02
| |
| Repeatability(mm) | 0.02
| |
| Lding speed (mm/min) | 15,000
| |
| Working speed(mm/min) | 10,000
| |
| Spindle | 2.2kw/3kw,water-coolin(0-24000rpm) | Air-cooling(0-18000rpm),multi-head,specified power
|
| Available tools(mm) | φ3.175~φ12.7
| Automatic tool changer |
| Drive system | Stepper motors | Servo motors |
| Working voltage | AC220V±30V,50HZ | AC380V±30V,50HZ for 2.2kw spindle |
| Command code | G Code(*.nc,*.mmg,*.u00,etc),*.eng
| |
| Control system | Nc Studio | DSP Hand-held |
| Compatible software | Window98/XP/7 G code | |
Appplication of cnc wood furniture router 1325
Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.
Special configuration of cnc woodworking machine
It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system, vacuum inhaling and dust collect etc.
offline secive of cnc wood door router 1325
We offer free training in our factory, welcome foreign friend come here to study the machine.
engineer oversea service is aviliable if you like, and Engineers will be trained user programming,
peration, processing and routine maintenance.
We will offer Multi-language software and operation CD, Detailed User Manual together with machine
for your reference.
Online Sevice of cnc wood cabinet router 1325
24 hours (all days) technical support by call ,e-mail, skype or computer remote control service by engineer.
guarantee time of cnc wood door router 1325
2 year guarantee for whole machine, if any problem of components, we will express you good ones. As we have strictly ex factory inspection, so there in no any problem of the machine.
lifetime maintenance, charge the appropriate fee and the cost of replacement parts
The inner quality control of cnc woodworking machine
#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. 18 months guarantee of the whole machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary.
FAQ
Question 1: I want to buy cnc woodworking machine ,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: What's the delivery cost & time OF cnc woodworking machine ?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
Question 3: Have you exported similar cnc woodworking machine to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
6
About payment of cnc woodworking machine
We accept TT or Western Union. Paypal.
Before you pay,we will make Proforma Invoice for you.all items will listed on there.
About shipment
by sea or by air for your optional.
7
About delivery time of cnc woodworking machine
As the manufacturer ,we pay more attention to the quality .So the machine will be tested well then send it to you.The delivery time is about 7-10 working days .because we must ensure all things are ready,then can send the machine to you.
Our Package Advantage of Woodworking Cnc Router Cutting & Engraving Machine Used in Advertising Industry
1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
8
After sales service of cnc woodworking machine
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
Dekcel advantage
1. High quality and competitive price
2. Imported accessories.
3. A line of production flow
4. Have the professional engineer.
5. 24 hours online service .
6. If you make a great order,can give you a discount(include some presents)
7. You can feel free to visit our factory or maybe have a trip in Jinan city
IF YOU HAVE ANY QUEATIONS PLEASE CONTACT US
WE WILL ALWAYS BE THERE FOR YOU
FACEBOOK: Joy Dekcel Cnc
Welcome to DEKCEL CNC, where our friendly and knowledgeable staffs are happy to assist you with your CNC needs. DEKCEL do not just sell CNC machines. We offer CNC solutions to Customers. Provision of a CNC machine is more than just the provision of a machine tool. Jinan DEKCEL provide a range of CNC Router, CNC laser, plasma cutting machine, laser marking machine etc. Having manufactured, sold, installed and supported over 7000 CNC machines. The professional CNC router, laser, plasma cutter we offer have exceptional long term stability, high cutting performance potential in a variety of applications and the machine systems are built to last. Listening to customers'needs and building high quality CNC Routers, laser, Plasma Cutters etc to fulfill their requirements is the way we do business in the CNC marketplace. If you are looking to get into the CNC world, have a CNC application in mind, have a new business idea or looking to further your production, have a look at what DEKCEL have to offer you!
