| Prod Model: |
DEK-1212 |
| Power(W): |
5.8kw Without Spindle |
| Voltage: |
380V, 50/60Hz |
| Dimension(L*W*H): |
1800X2900X1250mm |
| Weight: |
1600kg |
| Engraving Speed: |
12000mm/Min |
| Spindle: |
3.0kw Water Cooling Spindle |
| Software: |
Type3, Artcut, Artcam, Ucancam |
| Table: |
T-Slot and Vacuum Working Table |
| Control System: |
Taiwan Syntec/Weihong Nk300 |
| Lathe Structure: |
Welding Steel Frame |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

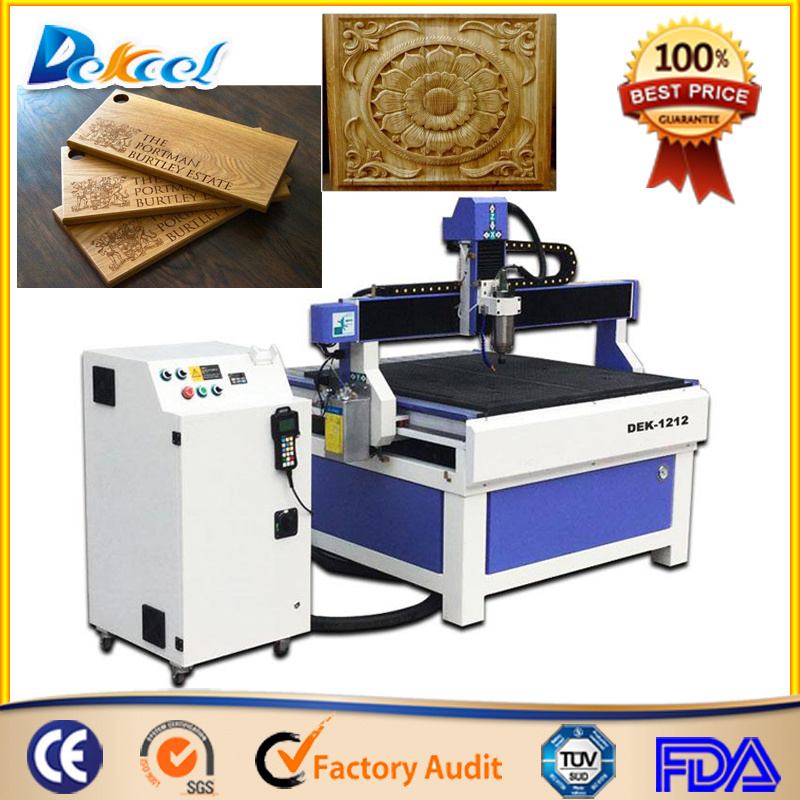

Features of Dek-1212 wood cnc router:
1.Taiwan HIWIN high precison square guide rail, high efficiency and high precision
2.Equipped with professional vacuum system,adopt integral adsorption base with the high strength engineering plastics in order to ensure stability when it's working
3.Taiwan TBI ball screw with high working precision
4.Water cooling spindle or air cooling spindle, working with high speed,high power
5 Whole machine is heavy duty welded bed structure when working it's more stable
6.Has the function of re-carving after break point and power failure
7.Large compatibility of software such as Type3,Artcam,some other CAD or CAM etc.
8.Ncttudio or DSP control system it's easy to operate
9.Our wood cnc router are suitable for engraving(carving,cutting and sculpture)wood doors,wood cabibets,wood furniture,wood tables,desktop,PVC,Acrylic and so on.
Appplication of cnc cylinder wood carving machine:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.
Techinical parameter of cnc wood carver for advertising industry:
Working area: |
1200*1200*200mm |
Spindle type: | water-cooling spindle |
Spindle power | 3.0KW |
Spindle rotating speed |
0-18000rpm |
Power (except spindle power) |
5.8KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Worktable: |
T-slot and vacuum table combined ,4 vacuum zone with clamps |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2x2mm,letter:1x1mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision |
±0.03mm |
System resolution |
±0.001mm |
Control configuration: |
Weihong control system /Syntec control system |
Data transfer interface: |
USB |
System environment: |
windows 7 |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares. |
Cutting thickness: |
0-40mm also (depends on different material) |
Z tool censor: |
yes |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Vacuum water pump / Vacuum oil-free pump
2. Double-head or multi-heads
3.Air cooled type spindle (China or Italian brand air spindle)
4.Smaller power spindles
5.Servo motors (China or Japan brand)
6.Weihong NC Control system ,Taiwan Syntec or DSP control system
7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
8.Mist spay cooling system
9.Dust collector
10.their features could be customized accordingly |
FAQ:
Q1.how to get the most suitable machine and best price?
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine
freely.And if you are busy ,we will have the special engineer to your country,but you need to bear
some fee,like tickets and hotel and meal.
Q3.How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period?
One year and during the time,if you have any questions ,we will solve it for free.
Q5.How to maintenance the CNC Router?
1. First cut the power when maintain the machine. When check work must open the power, need the professional electrician to do this check work.
2. Repair and replacement the parts, please first confirm the specifications of the technical.
3. Regular clean the cooling system.
4. Should always monitor the voltage and electricity grid of the CNC Router.
5. Prevent the dust into the machine.
Q6 How can i confirm machine?
Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
If you can provide some pictures of your products,that would be great!
If you have any questions,please contact me,thanks.
Warranty & Service
1,12 months for the whole machine. We offer life-long technical support by call, email
2, Our technicians & Me can give you remote guide online (Skype or MSN) if you have any question
3, We can record videos of operating the machine
4, Free training course in our factory
5, Engineer available to service machinery overseas 12 months for the whole machine.
