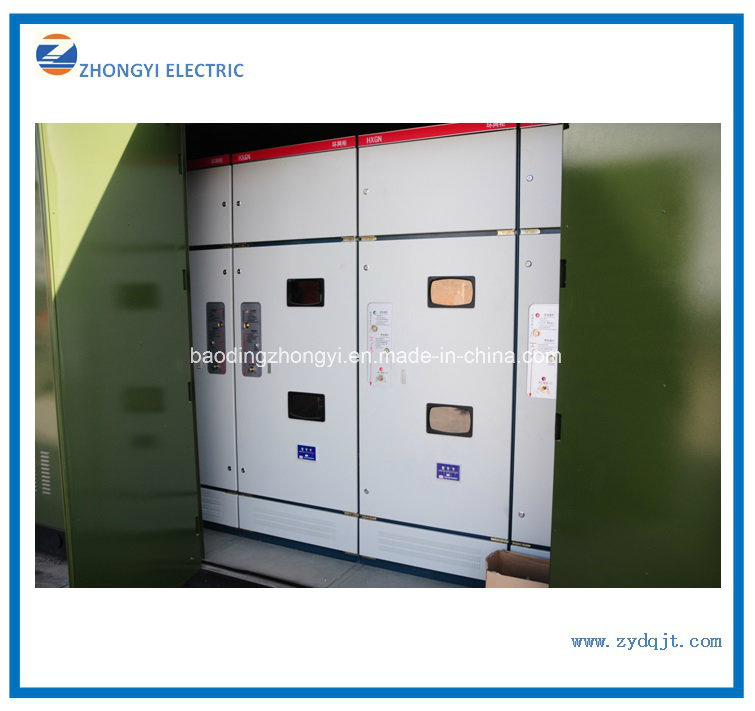

380V/0.4 Gck Series AC Withdrawble Low Voltage Distribution Cabinets

380V/0.4 Gck Series AC Withdrawble Low Voltage Distribution Cabinets
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: GCK
Name: Withdrawble Low Voltage Distribution Cabinets
Reted Frequency: 50Hz/60Hz
Application: Power Transmission
Standard: ISO9001:2008/IEC Standard
Rated Voltage: 380V
Rated Current: 3150A
Switch: Distribution Box Electrical Box
Special Service: Customized
Switchgear: Hv/LV

Product Description

Specifications:



China Factory Supplier 380V/0.4 GCK Series AC withdrawble low voltage distribution cabinets





Product Description


 Low Voltage Complete Sets of Series Products


 Application

380V/0.4 AC power distribution cabinet GCK withdrawble low voltage distribution cabinets



GCK low-voltage drawer type distribution cabinet is applicable to rated operating voltage 380V. AC three-phase four-wire and three-phase five-wire system, which can be used as centralized control of power- receiving, power supply, reactive power compensation, calculation of electric energy, illumination and motor in the power plant of power system, industrial and mining enterprises and high-rise building substations.


Standard for 380V/0.4 GCK Series AC withdrawble low voltage distribution cabinets

This product complies with the Standards:

  • GB7251 Low-voltage Switchgear Assembly and Control Equipment,
  • JB / T9661 Low-voltage Drawer Type Switchgear,
  • IEC 60439-1 Low - voltage Switchgear Assembly and Control Equipment.


Structure for withdrawble low voltage distribution cabinets

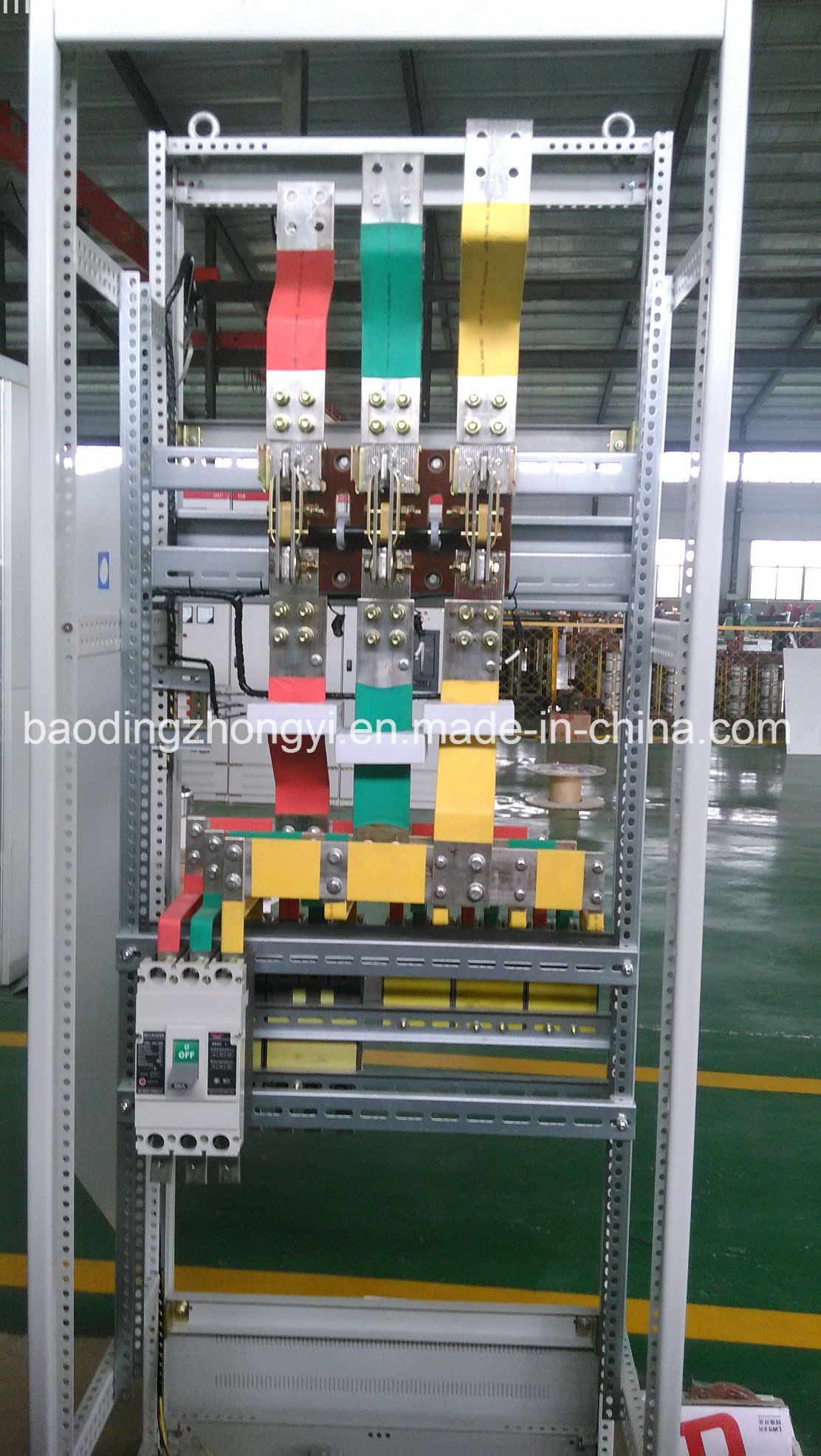

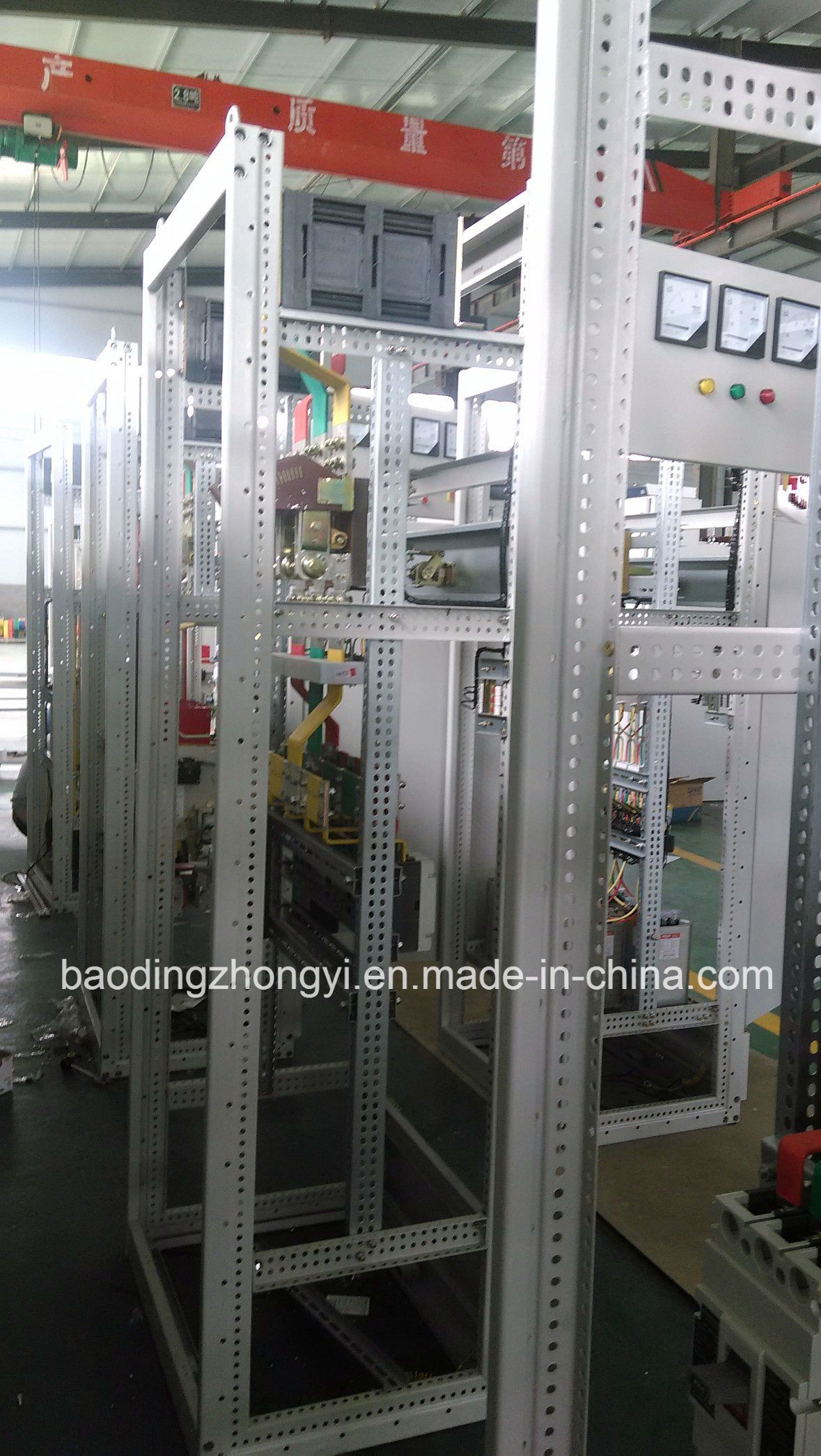

The basic frame of distribution cabinet adopts assembled combined structure and it is manufactured by fastening and connecting the profile steels with bolts, and then it is installed with corresponding door, closing plate, partition plate, installation bracket and bus and function units, etc. into a complete switchgear according to the change of scheme. The structural parts in switchgear are galvanized and adopt modular installation (modulus E=20mm). The switchgear panel is made of high-quality cold-rolled steel plates which are machined and shaped by numerically controlled machine tool, and after pickling and phosphating, the surface undergoes
electrostatic plastic spraying and is resistant to wear and corrosion, so it has solid mechanical strength and reliable ground protection continuity.


The switchgear compartment is divided into function unit chamber, bus chamber and cable chamber, and the function of each unit is independent of each other and the areas are strictly isolated by continuously grounded metal plate, thus ensuring the safety of use and preventing spreading of accidents.


MCC cabinet drawer has five specifications of 200mm, 300mm, 400mm, 600mm and 200/2mm. The drawer has connected position, test position and separated position. Mechanical interlocking device is equipped between each drawer and switch. Only when the switch is disconnected, can the drawer be drawn out or inserted. When the switch is closed, the drawer may not be drawn out or inserted. To prevent unauthorized operation, the operating mechanism can lock the switch in OFF position with a padlock. The function unit drawers of same specification are interchangeable, and the drawer of each function unit has 20 pairs of auxiliary contacts, to meet the needs of automatic monitoring systems of operation control, electricity metering and computer interface in different place.



Features

 1. Metal-enclosed and separately arranged, with high protection Category

2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces

3. Protection Category of enclosure reaches to IP4X,

4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining

No.ItemUnit

Parameters

1rated voltageV380
2rated frequencyHz50
3size:MM800/1000X600/1000X2200
4material:typestainless steel304
5Short time withstand current ratingKA50,80
6Earthing switch peak withstand rated currentKA105,176
7Protection gradesIPIP30
8rated current ≤ 4000
9 Rated short-circuit durationsec4


Details for withdrawble low voltage distribution cabinets




Company information

 Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.

Our main products:

oil-immersed power transformers,

dry-type transformers,

box-type substation,

High voltage/low voltage distribution cabinets

and a variety of special-type transformers.



The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.



The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality;



Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .



Related Products




Certifications




Packaging & Shipping

 Packing:

1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.

Delivery details:15-40 days according to order quantities



FAQ

Q: Are you trading company or manufacturer ?

A: We are the professional power transformer factory.

Q: How long is your delivery time?

A: The delivery time depends on quantity you ordered ,but generally within 15-40 days upon receipt of advance payment.

Q: How to pay sample and express charges?

A: For express charges ,you can pay to our company account directly, For those customer who has express account, we will send the samples by freight collected . if customers need samples, we will charge the cost first .

Q: What is your terms of payment ?
A: Usually,we accept T/T, irrevocable L/C at sight ,for regular order ,30% in advance ,70% against the copy of B/L

Q: How do you control the quality ?
A: We have QC team comply with TQM,each step is in compliance to the standards,At the same time ,we will take photos and shoot video for you .

Q: How long does it take for me to get the quotation.
A: For customized products, we will quote after you provide the requested product detailes within 48 hours beacuse we need the time to calculate cost, but we will quote the soonest possible. for our standard product posted here we can quote in 24 hours.


Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.

The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.

Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.

Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
