| Prod Model: |
XL-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Xl-1000 |
| Internal Dimension W*H*D (Mm): |
900*900*900 |
| External Dimension W*H*D (Mm): |
1500*2000*1400 |
| Tube Using Life (H): |
1500 |
| Tube Power: |
1kw/6kw |
| Cooling System: |
Water Cooled or Wind Cooled |
| Diameter Of Sample Shelf (Mm): |
500 +/- 50 |
| Spray Water Flow (L/Min): |
1~2.4 |
| Explore Area(Cm2): |
7500 |
| Simulated Test Status: |
Test Samples; Explore Under Sunlight |
| Type: |
Measurement Type |
Product Description

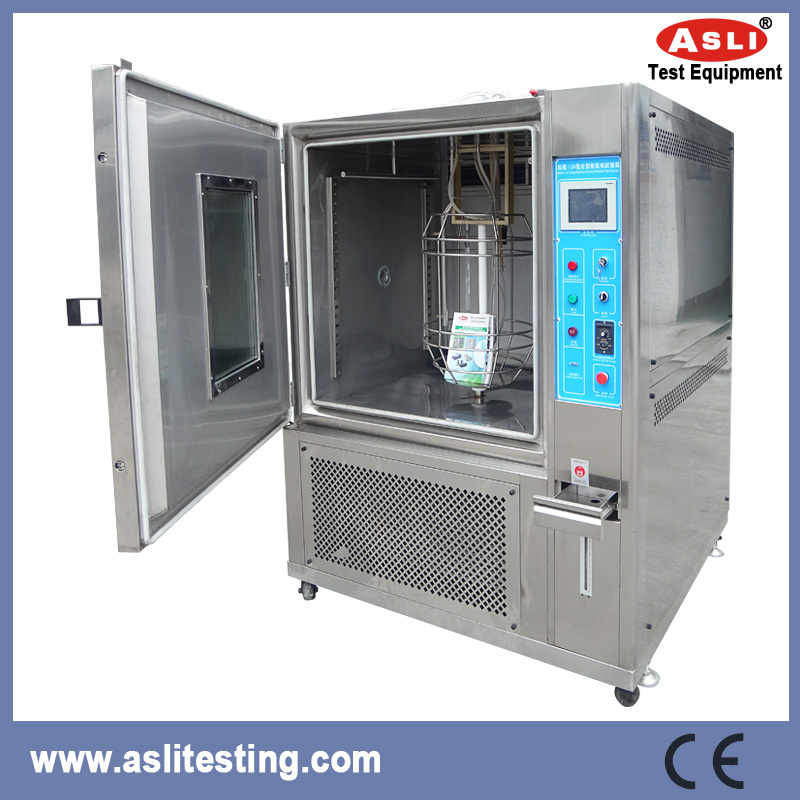

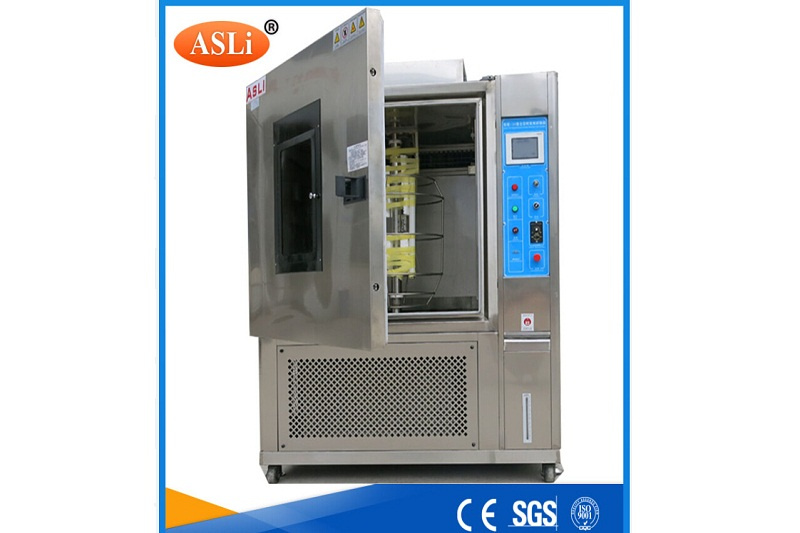

Xenon Light Accelerated Aging Testing Cabinets
Application:
Xenon Light Fastness / Climate Resistant Tester is a comprehensive climate testing machine, it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: Dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color. Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material's light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation, humidity, . Etc these main climate factors. Adopt simulated sunlight spectrum's Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.
Xenon Light Accelerated Aging Testing Cabinets features:
1. Advanced design technology and concept.
2. Excellent technology of producing and outstanding system of quality management.
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet,
Visible and infrared.
4. Be tested in the range of the full spectrum, necessary for most textile sun and color fastness test.
5. To determine the color fastness and aging to sunlight, weather resistance, etc.
Warranty: One year free warranty for whole set machine, lifelong time maintainance.
After-sale service: Feedback within 2 hours after get the call.
Service: OEM service, Design service, Buyer lable service.
If you want to learn more Xenon Light Accelerated Aging Testing Cabinets knowledge, welcome to contact us at any time.
| technical parameters: |
| Model | XL-1000 |
| Internal Dimension W*H*D (mm) | 900*900*900 |
| External Dimension W*H*D (mm) | 1500*2000*1400 |
| Tube Using Life (H) | 1500 |
| Tube Power | 1KW/6KW |
| Illumination Intensity | 300~400nm
48~60w/m2 |
| Lighting Filter Type | Infrared adsorbing |
| Quartz |
| Simulated Test Status | Test samples; Explore under sunlight (Below 300~1000nm) |
| Cooling System | Water cooled or wind cooled |
| Temperature Control Range of the Test Cabinet | Black panel temperature : BPT 40~120 degree (±3 degree) |
| Black standard temperature:BST 38~120 degree (±3 degree) |
| Humidity Control Range of the Test Cabinet | Humidity when lighting: 20%R.H.~75%R.H. (± 5%R.H.) |
| Humidity when dark: 60%R.H.~95%R.H. (± 5%R.H.) |
| Rotating Speed of the Samples Holder (RPM) | 1~5 adjustable |
| Diameter of Sample Shelf(mm) | 500±50 |
| Sunlight Exposure Cycle | 0.01~999 hours 59mins |
| Raining Period / Time | Raining Period:1~240mins,discontinuous-type, adjustable |
| Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa |
| Spray water flow(L/min) | 1~2.4 |
| Explore Area(cm2) | 7500 |
| Power | AC 380 V(±10%),50/60HZ ,3 5 Lines |

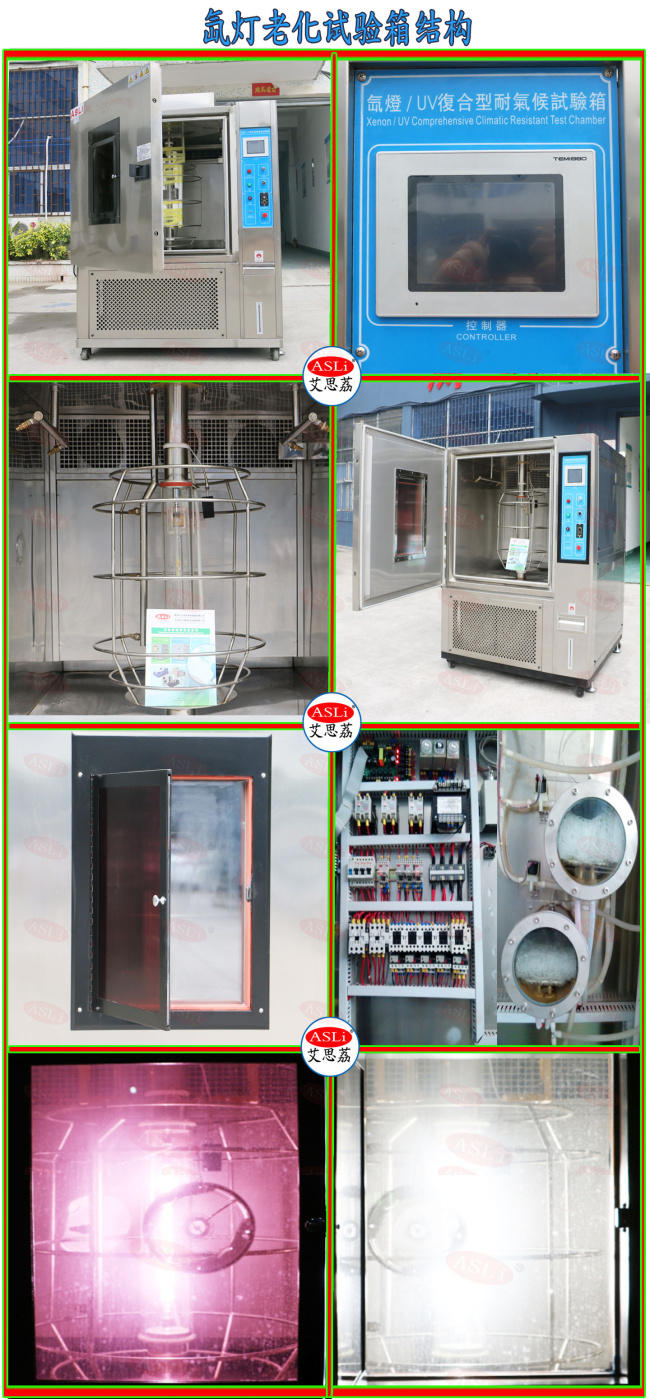

Structures Of Xenon Light Accelerated Aging Testing Cabinets:
