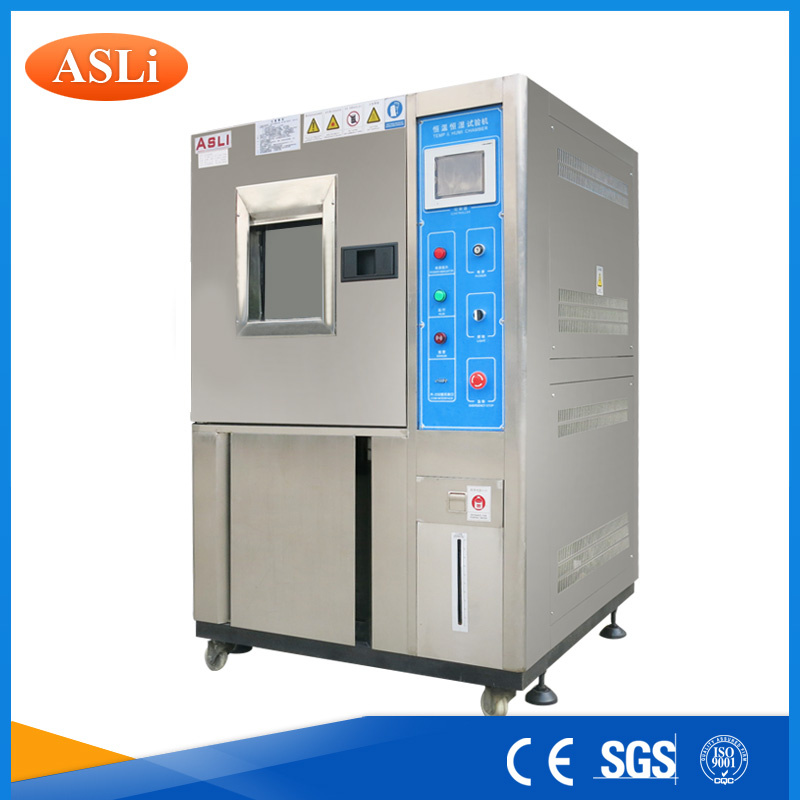

CE Certificated Touch Screen Temperature Cycle Chamber From China

Prod Model:	HL-(A~F)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Products Name:	Reasonable Price Low Temp Humidity Testing
Usage:	Temperature & Humidity Testing
Material:	SUS 304# Stainless Steel and See Cold-Rolled Steel
Humidity Range:	20%R.H.(Humidity Can Be Customized)
Temperature /Humidity:	-70~200c Degree, 20%~98%R.H.
Compressor:	French Tecumseh Brand, Germany Bizer Brand
Power:	AC220V or AC380V
Warranty:	One Year Warranty, Lifelong Time Maintainance
Service:	OEM Service, Design Service
Package:	Standard Export Wooden Case
Analysis Method:	Physical Analysis
Type:	Temperature and Humidity Test Chamber
Application:	Instrument, Automobile, Plastic, Metal, Food, Chem
Portable:	Customized
Physical Analysis Type:	Temperature and Humidity Test Chamber

Product Description

CE Certified:

1. Professional Manufacturer
2. Material: SUS#304
3. Customized Size
4, LCD touch screen

Application:

Climatic chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.



Feature:

1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.

2. Rectangular doubleglassed watching window for the observation of the test
Production during the testing process. The window is equipped with sweatproof
Electrical heating device that can prevent water steam from condensing into
Droplets, and with high brightness PL fluorescentbulbs to provide light inside the box.
3. Double- layer insulated airtight doors, able to insulate the internal temperature
Effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R232, R404)

6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.

7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.

8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.


Asli Main Products:

Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber), ESS chamber, Walk in stability chamber, Vacuum oven, Altitude chamber, vibration test system, mechanical shock tester, environmental combined vibration chamber, etc


Model	HL-80(A~F)	HL -150(A~F)		HL -225(A~F)		HL -408(A~F)		HL -800(A~F)		HL -1000(A~F)
Internal Dimensions WxHxD (mm)	400x500x400	500x600x500		600x750x500		600x850x800		1000x1000x800		1000x1000x1000
External Dimensions WxHxD (mm)	950x1650x950	1050x1750x1050		1200x1900x1150		1200x1950x1350		1600x2000x1450		1600x2100x1450
Temperature Range	Low Temperature(A:25ºC  B:0ºC  C:-20ºC D:-40ºC  E:-60ºC  F:-70ºC) High Temperature 150ºC
Analytic Accuracy / Distribution Uniformity of Temperature	0.1ºC /±2.0ºC
Control Accuracy of Temperature	±0.5ºC
Temperature Rising/ Falling  Speed Rate	Temperature rising approx.  0.1~3.0ºC/min / temperature falling approx.  0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºC per minute is a special optional condition)
Internal and External  Material	Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling / single segment compressor(-40ºC, double segment compressor -70ºC)
Protection Devices	Fuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system
Optional Accessories	Inner door with operation hole(Optional), Recorder(optional),Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC 220V, 1ø3  Lines,50/60HZ ;    AC 380V ,3 ø  5 Lines,50/60HZ
Approx. Weight (Kg)	150		180		250		320		400		450
