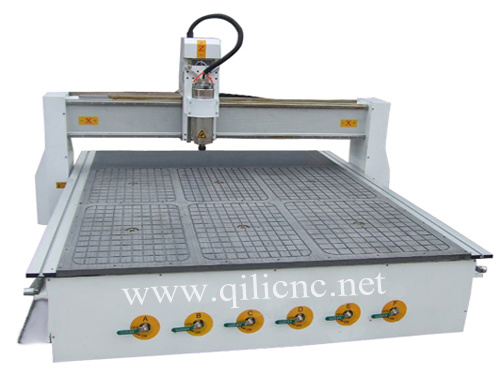

Wood Cutting Engraving CNC Router Machine Ql1530 Vacuum Table

Prod Model:	QL-1530
Model:	Woodworking Lathe
Brand Name:	Qili
Model Number:	1530
Machine Structure:	Square Tube Lathe Bed, Vacuum Table
Power(W):	4.5kw Water-Cooling
Dimension(L*W*H):	2300*3650*1350mm
Working Speed:	20000/Min
Ldling Speed:	25000mm/Min
Repositioning Accuracy:	0.02mm
Software Surroundings:	Windows98/7/XP
Spindle Layout:	Vertical
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	SGS
Color:	Optional
Spindle Number:	Optional

Product Description

Wood Cutting Engraving CNC Router Machine QL1530 Vacuum Table
Wood CNC Router (QL-1530)


specification
1.QILI-1530 cnc wood carving machine
2. 4.5kw wood cnc machine structure heavy cheap cnc router
3.overall dimensions:2300*3650*1350
4.stepper motors
5.by vacuum table cnc router

Product Description
  1.It is common type woodworking machine with high performance configuration.
 2.The request on several parts are even higher than of stone router,so that the engraving and cutting work on hard or thick materials could be done easily.
 3.Most working need on various materials can be met as a typical of multi-functional machines.

Details:
1. Germany with double-nut ball screws automatic elimination gap.
2. Linear square Guide. Is the linear guide bearing surface contact, high-precision linear guide of CNC equipment manufacturers use some of the ordinary life of the 2200-Advisory times, long-term use of high accuracy.
3. Driver in a high-speed drives, faster than the original model, up nearly two meters.
4. Duandao continued carving a breakpoint features, supporting up to nine points, can be carried out anywhere arbitrary carving.
5. Strong compatibility: Compatible Type3/artcarm/castmate/proe/Corelerow/Wentai, and other CAD/CAM software, which produced exquisite relief sculpture, video carved, three-dimensional works of art.
6. Water-cooled high-power frequency spindle can be 20-30 mm stroke cutting the plexiglass, applies to advertising, mold, gifts, woodworking building model processing and production.

Technical specifications:

Model	QL-1530
Working area (X*Y*Z,mm)	1500*3000*200
Machine structure	square tube lathe bed,vacuum table
Working holding	By clamps
Overall dimension	3650*2300*1650
Precision(mm)	0.07
Position accuracy(mm)	0.02
Repeatability(mm)	0.02
Lding speed (mm/min)	25,000
Working speed(mm/min)	15,000
Spindle	4.5kw,water-coolin(0-24000rpm)
Available tools(mm)	φ3.175~φ12.7
Drive system	Stepper motors
Working voltage	AC380V±30V,50HZ
Command code	G Code(*.nc,*.mmg,*.u00,etc),*.eng
Control system	DSP Hand-held
Compatible software	Window98/XP/7 G code

Advantages
1 Square Tube lathe bed with more solid structure and strong stability because of low center of gravity.
2  DSP hand-held control system.with U disk available and no need of computer,provides high
independence and great convenience for operation.
3.Breakpoint restoring function enable the machine conue to work affer sudden stop, such as accident,
tool breaking.

Applicable Fields:
1.Furniture Decoration Industry:A large area flat plate engraving,wood, panel furniture carving,wood art
murals,wood cabinet doors carving.
2.Wood Products Processing:Sewing machine table, electrical counter table, sports equipment.
3.Artwork:Photo Frame, jewelry box.
4.Musical Instrument Industry:Instrument three-dimensional surface engraving,shape cutting.




FAQ
1)This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
 Yes, In order to give you a suitable router machine, pls tell me the max working area, materials for processing and
the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problemFree after-sales service life for machine,
please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will
be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
 b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer

Guarantee&Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or phone
3.User-friendly English manual and video CD for machine using and maintaining
4 .Providing free operation training service in our factory.

Look forward to your enquiry on our woodworking router machine .all kinds machines you can choose.
