| Prod Model: |
QL-6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Rubber |
| Certification: |
Ce |
| Condition: |
New |
| Working Area: |
60cm*90cm (L*W) |
Product Description
Ql-6090 Laser Cutting Machine for Acrylic Cloth Leather
Performance Features
1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) It can also be made according to customer's demands
Specifications:
Working area 60cm*90cm (L*W)
Laser power 60w/80w/100w/130w/150w

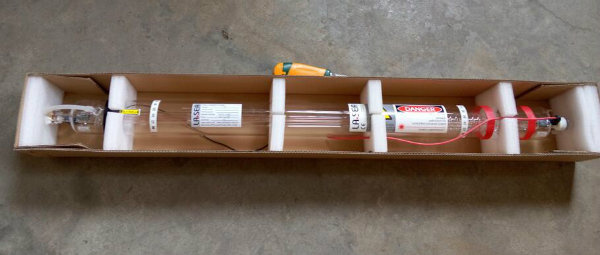

Laser type CO2 sealed laser tube, water-cooled
Engraving speed 0-6000cm/min
Power supply 220V/50HZ, 110V/60HZ
Min. Shaping characterEnglish 1.0 x 1.0mm
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported CorelDraw, PhotoShop, AutoCAD, TAJIMA
Driving system 2 phases stepper motor
Equipment Dimension 1050mm*750mm*970mm
Packing Dimension 1150mm*850mm*1050mm
Net Weight 150kg
Optional parts Up-down worktable, USB Port, Red light pointer, Autofocus
Material Cut Engrave

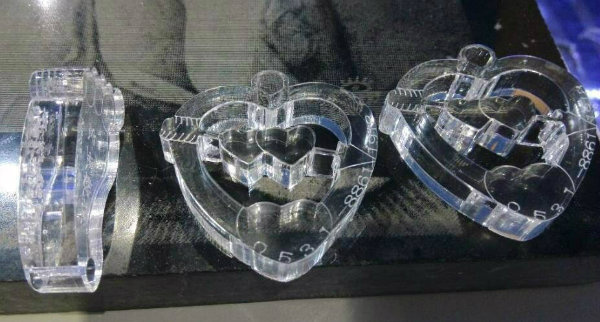

Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate Yes Yes
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards YesYes
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood YesYes
Leather, Pig leather, Cow Leather, Sheep leather YesYes
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece YesYes
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR
)Neopren® YesYes
Paper, Cardboard, Chipboard, Press Board YesYes
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate NoYes
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber YesYes
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass NoYes
