| Prod Model: |
QL-1325 |
| Application: |
Wood Engraving Cutting |
| Interface: |
USB |
| Transmit: |
Ball Screw |
| Spindle: |
4.5kw Air Cooling |
| Drive: |
Leadshine Drive 860 |
| Lathe Bed: |
Thick -Wall Steel Structure |
| Working Holding: |
by Clamps |
| Drive System: |
Stepper Motor |
| Working Voltage: |
AC380V±30V, 50Hz |
| Control System: |
DSP Syetem |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
| Spindle Number: |
Multi Spindle |
Product Description

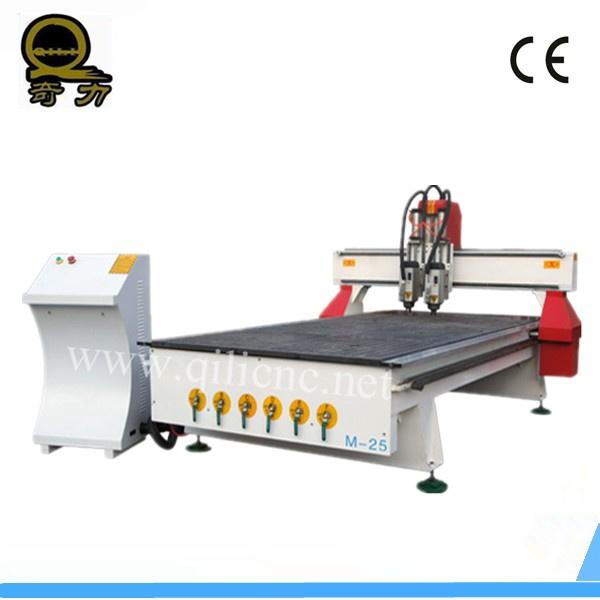

1325 Wood Cutting CNC Router with Vacuum Table
Product overview:
is economic CNC machine for woodworking,fulling the need for the production with most wooden materials,devices like vacuum system and dust collector etc.are optional choice for different requirement as convenience to work fast and efficiently.
Product features:
1.whole lathe bed is in steel structure of high stability.
2.Rocks and gear transmission with high speed motors keeps smooth movement in fast and accuracy .
3.Breakpoint restoring function enable the machine continue to work after the sudden stop,such as accident ,tool breaking.
4.Wide software compatibility with processing files generated by Type3,ArtCAM,Artcut,AutoCAD,JDPaint etc.CAD/CAM design software.
5.Auto lubrication system lubticating tracks automatically,ensures machine's precision and service time.
Application:
Furniture decoration industry: a large area flat plate engraving ,wood,panel furniture carving ,wood art mural.wood cabinet doors carving.
Wood products processing :sewing machine table ,electrical counter table,sports equipment .artwork :photo frame ,jewelry box.
Musical instrument industry:instrument three-dimensional surface engraving ,shape cutting.
welcome your inquiry and to be our agents,hoping having a good cooperation.
| Technical specifications |
| Model | QL-M25 | optional |
| Working area (X*Y*Z,mm) | 1300*2500*200 | customization is available
|
| Machine structure | Thick wall square tube steel structure,vacuum table | |
| Working holding | By vacuum | |
| Transmisiion | XY axis rack and gera,Z ball srew | |
| Guide rails | XYZ squareguide rails | |
| Vacuum pump | 5.5kw | German baker pump |
| Overall dimension | 3100*1810*1750/3100*2060*1850 | |
| Precision(mm) | 0.07
| |
| Position accuracy(mm) | 0.02
| |
| Repeatability(mm) | 0.02
| |
| Lding speed (mm/min) | 15,000
| |
| Working speed(mm/min) | 10,000
| |
| Spindle | 4.5kw,water-cooling(0-24000rpm) | air-cooling(0-18000rpm),multi-head,specified power
|
| Available tools(mm) | φ3.175~φ12.7
| Automatic tool changer |
| Drive system | Stepper motors | YASKAWA Servo motors/Hybrid servo motor |
| Working voltage | AC380V±30V,50HZ | |
| Command code | G Code(*.nc,*.mmg,*.u00,etc),*.eng
| |
| Control system | DSP Hand-held | NC studio,Syntec |
| Compatible software | Window98/XP/7 G code | |
Company :
Packages
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Guarantee & After Sales Service:
1) The whole machine guarantee is 12 months except for special parts.
2) 24 hours technical support by phone, email or MSN, skype etc.
3)Engineer avaliable to oversee if needed
Company Information:
Jinan Hongye CNC Machine Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate. The aim of Jinan Hongye CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
CE certificate
FAQ:
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How about Guarantee & After Sales Service?
The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or MSN, skype etc.
If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
Welcome inquiry.
