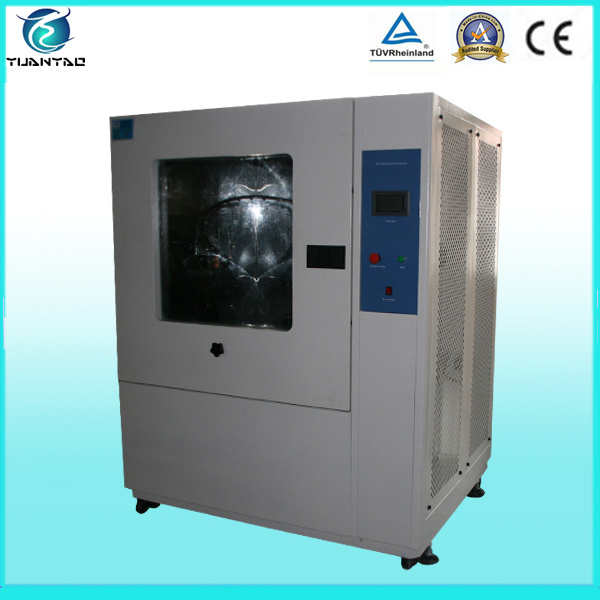

Used Industrial Water Proof Test Cabinet

Prod Model:	YSRT-1728-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size(mm):	1200*1200*1200
Test Specimen Frame:	17rpm
Flow Rate Of The Weter:	0.07L/Min
Material:	SUS#304
Water Temp.:	Normal
Warranty:	12 Months
IP Class:	Ipx1~Ipx8
Other Components:	Chamber Lamp.Wiper, Casters with Adjusters
Application:	Auto Testing Machine
Service:	Customization
Type:	Material Testing Machine
Weight:	100-500Kg
Power Source:	AC220V
Maxcapacity:	N/a
Control:	Controller
Oil Cylinder Position:	N/a

Product Description

Used industrial water proof test cabinet

Application

Used industrial water proof test cabinet mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices rain/water resistance test.

Package ang Delivery

Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.


Feature
1. Digital setting, operating easy, maintenance quickly.
2. This chamber is designed to test water-proofing properly of automobile and electronic parts.
3. Adopt large viewing glass can let operator see the specimen clearly.

Model			YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim.W×H×D(mm)			1200×1200×1200		1200×1200×1200
External Dim.W×H×D(mm)			1700×1950×1370		1700×1950×1370
Water Temp.			Normal		Normal
Spray Type	Total Water Flow(L/min)		R1	1.8	IP×1	With in 1~1.5mm/min(In drip box)
			R2	3.2	IP×2	With in 3~3.5mm/min(In drip box)
			S1	24.5	IP×3	angle±600,R:400mm,1.1L/min
			S2	39.2	IP×4	angle±1800,R:400mm,1.8L/min
	Pressure of spray nozzle(kgf/cm*2)		R1	0.1	1.Flow rate of the water=0.07L/min 2.1P×3,Radius:400mm,16Number or open holes=16,total water flow:1:1L/min. 3.1P×4,Radius:400mm,25Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm. (For 1P×3,1P×4 only)
			R2	0.3
			S1	1
			S2	3
(RPM)Test Specimen Frame			17RMP		1RPM
Spray Nozzle Rotation Speed			23RPM		Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote Swing 60 ° from vertical for 4 seconds at one time Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round Swing 180 ° from vertical for 12 seconds at one time
Material	Interior		SUS#304
	Exterior
Other Components			Chamber lamp.Wiper casters with Adjusters		Chamber lamp.Wiper,casters with Adjusters
Power Source(K.W.)			AC 1Ψ 220V 60/50Hz 4KW

Except rain spray tester, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:


1) Temperature/ humidity test series: Temperature humidity test chamber,  Walk in environmental room, Thermal shock test chamber,  High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.



If you are interested in the items, please contact me soon.
