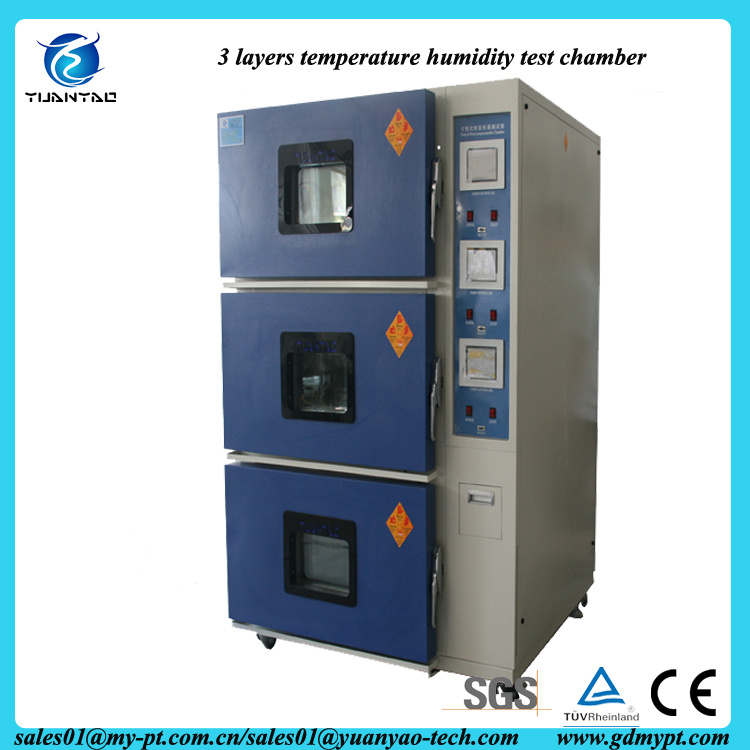

Three Layers Constant Temperature and Humidity Test Cabinet

Three Layers Constant Temperature and Humidity Test Cabinet
Price: US $ 15000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: YTHG-072-(+10)-2P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Size: 400*400*450mm
External Size: 1060*1760*780mm
Volume: 72 Liters
Temp. Range: +10 Degrees---100degrees
Humidity Range: 30% Rh--95%Rh
Temp. Fluctuation: +/-0.3 Degree
Humi. Fluctuation: +/-3.0%Rh
Color: Ivory
Interior Chamber Material: SUS#304 Stainless Steel Plate
Exterior Chamber Material: Stainless Steel Plate + Powder Coated
Type: Material Testing Machine
Weight: 100-500Kg
Power Source: AC220V
Maxcapacity: N/a
Oil Cylinder Position: N/a

Product Description

Three Layers Constant Temperature and Humidity Test Cabinet

Introduction&Application:

Three Layers Constant Temperature and Humidity Test Cabinet( climatic/ climate/ environment/environmental test chambers) simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from +10°C to 100°C and relative humidity ranges between 30% and 95% are available. A climate test chamber can also be used when constant climate conditions (temperature and/or humidity) are needed for product testing.

Feature:

1 Large system capacity: 120 patterns*1200 steps

2 Circulation Setting: Max. 9999 cycles.

3 PID+SSR/SCR controller.

4 Curves drawing.

5 Composed of three test areas.Each test area can individually test high temperature, low temperature or constant temperature and humidity conditon.

6 RS-232&RS-485 communication interface.

7 Independent test areas, easy operation.

8 Touch screen controller

9 Best after sales service: one year free parts maintenance.

10 Meet international test standards.

11 Customization  is available & welcomed.

Technical parameters
Model No.: YTHS-072-(+10)-2P


Inner chamber size: 400*500*400mm(WXHXD)

Exterior chamber size: 900*900*1500mm(WXHXD)

Temp. Range: -70 ºC to + 180 ºC

Humi. Range: 20% RH---98% RH

Temp. & Humi. fluctuation: ±0.2ºC, ±0.5%RH

Temp.&Humi. Uniformity: ±1.5ºC, ±2.5% RH when RH is ≤75%; ±4%RH when RH is > 75% ( Empty load, stailization after 30mins)

Temp.&Humi. Resolution: 0.01ºC, 0.1%RH

More details about the specification, please contact us , thanks for your attention.

ModelYTHS-072-(+10)-2PYTHS-162-(+10)-2P
Internal Dim.W×H×D(mm)400×400×450600×450×600
External Dim.W×H×D(mm)1060×1760×7801260×1910×830
Temperature Range +10ºC~+100ºC
Humidity Range30%HR  ~95%HR
FerformanceTemp.&Humi,Constancy±0.3ºC;±1.0%RH
Temp.&Humi,Constancy±1.5ºC;±3.0%RH
Indication Resolution0.1ºC;0.1%RH
Heat-up Time( min.)30
Pull-down Time( min.)40
MaterialExteriorStainless steel piate+Powder Coated
InteriorSUS#304 stainless steel piate
InsulationPU & Fiberglass wool
SystemsCirulationSiroco fan
HeatingSUS#304 stainless steel high-speed heater
HumidifyingSurface evaporating system
CoolingAirtight compressor+vaporator fins+air-cooling condenser
ehumidifyingADP Critical dewpoint cooling/dehumidifying method
ControllerDigital electronic indicators+S.S.R.With PID automatic calculation capabilty
Other Components      Vacuum glass inspection windown,50mm cable port, control status indicator lights, chamber lamp, 2 pcs, adjustable loading shelves
Sevey DevicesOverheating prevention circuit-breaker,compressor overload protectin,control system overload protection,humidifying system overheading drying out prevention,breakdown indicator light
Power Source[K.W.]AC 1Ψ 220V, 3 phase 380V 60/50Hz

Except Three layers constant temperature and humidity test cabinet, Dongguan Yuan Yao Electronics Technology  Co.,Ltd also can supply:

Precision Oven Tester,Triple Type Temp.& Humi. Chamber,Temp.&Humi. Control Host,Air Thermal Shock Tester,Liquid Thermal Shock Tester,Salt Spray Tester,Walk-in environmental Test Room,Temp.Humi. &Vibration Conbined Test Chamber,Aging Oven Tester,Rain/Spray Test Chamber,Burn-in test equipment, Dust Tester,Steam Aging Tester,Vibration Tester,Tensile Tester,Drop Tester and so on.

Welcome to enquire and purchase!

Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.

Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.

We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.

We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.

Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.

We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
