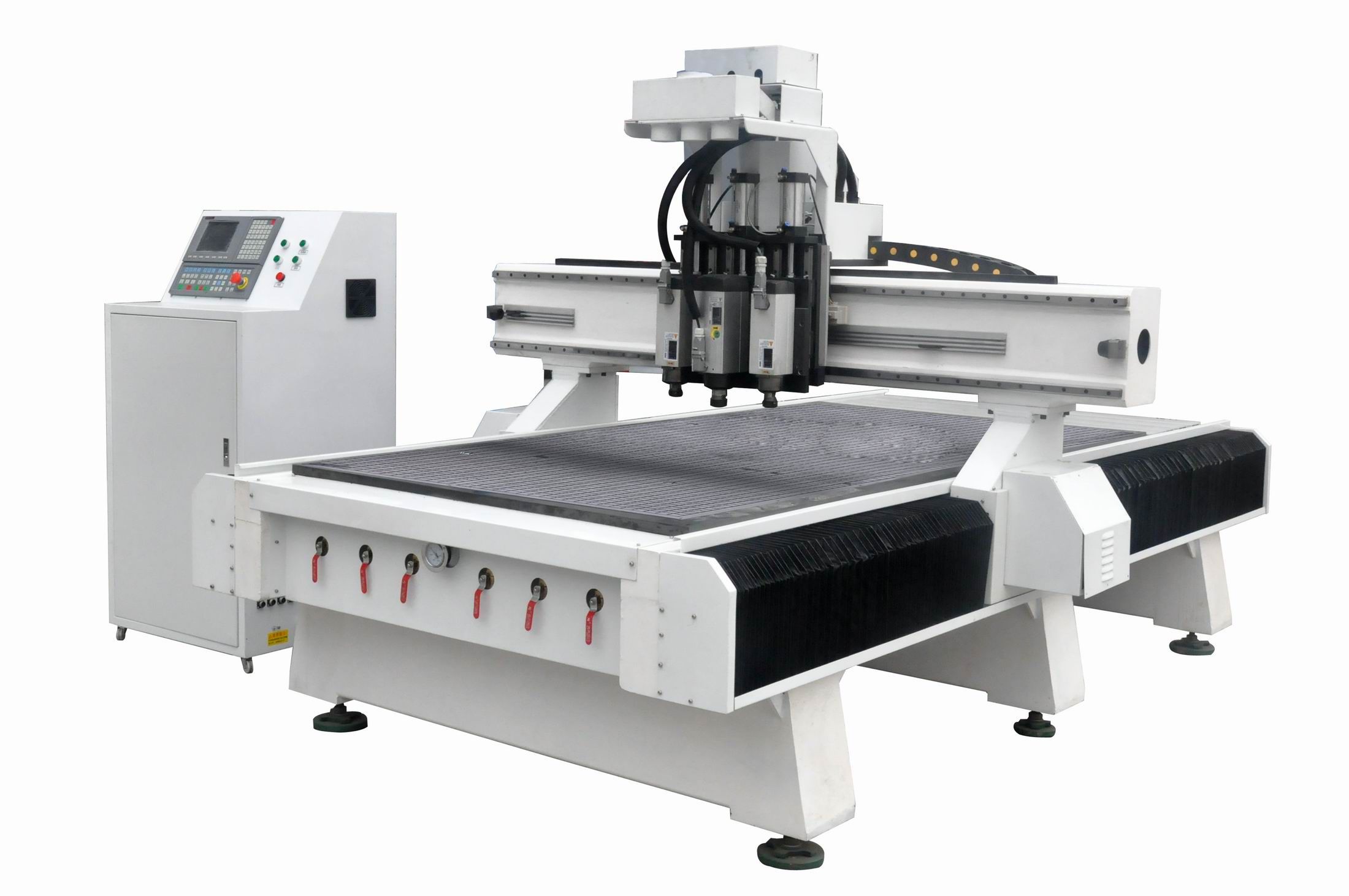

Three Head Atc CNC Machine

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Intelligent Multi Processes- Three Processes Series
Features
The automatic three processes engraving machine is easier to operate than the single spindle engraver and also saves tool changing time. By holding three PCS tools, this machine can finish the processes of cutting and hollowing-out on wooden door at one time without changing tools. Consequently it makes processing easier and greatly improves working efficiency.

Multi procedures system as a option for cost performance, makes the processing of complicated crafts much easier and more efficient.
Stable structure
Adopting heavy type all steel structure welded body features rigidity and non deformation.

Excellent components
Taiwan Syntec control system; Gear rack transmission for X, Y axis features high strength and abrasive resistance; Imported rolling ball screw transmission for Z axis features heavy loading and accurate position.

Adopting powerful vacuum absorption system, the table is divided into six independent areas which can work synchronously efficiently.

Compatible with any advanced software such as Type3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam and so on.
2\Applications
Wooden door, furniture and decoration field: Solid and composite material door, cupboard panel, large area board surface carving, solid wood carving and hollowing, board furniture carving, antique reproduction furniture carving, solid art fresco carving, etc.
Wooden crafts making: Clock frame, art photo frame, thin aluminium plate crafts carving and hollowing, appliance cabinet panel, sports goods.
Electronic field: Electrocircuit, insulation materials, LED screen, family appliance (TV, washing machine, refrigerator) shell and model carving.
Musical instrument field: Three dimension curve surface carving, outline cutting, carving and hollowing of violin panel and head.
EVA processing field: Carving and hollowing of VA material packing tools, medical apparatus, electronic products, carving and hollowing-out of glassware lining, etc.

Parameters

No. Specification Parameter Options 1 Working area X axis 1300mm Less than 2000mm Y axis 2500mm Less than 5000mm Z axis 160mm Less than 7000mm 2 Dimension X x Y 1350x2550mm   3 Precision Processing 0.04mm   Positioning 0.02mm   4 Structure Structure of table Vacuum absorption into six areas   Transmission of X, Y, Z Axis X, Y axis gear rack, Z axis rolling ball screw transmission   5   Speed X idle speed 50000mm/min   processing speed X/Y: 20000mm/min  Z: 1500 mm/min   6 Spindle Power 6.0KW 4.5KW, 3KW (Specified by customer)   Rotary rate 0-18000r/min   7   210mm     8 Driving motor   X Y Z AC servo (Yaskawa)   9 Working voltage   AC380V/50Hz AC380V/60Hz 10 Code   G    HPGL   11 Control system   Taiwansyntec and NC Studio control system   12 Power of vacuum pomp   5.5KW   13 Power of dust collector   2.2KW   14 Dimension   3000 x 2140 x 2000mm   15 Net weight   ≈ 2500kg   16 Grass weight   ≈ 2800kg
