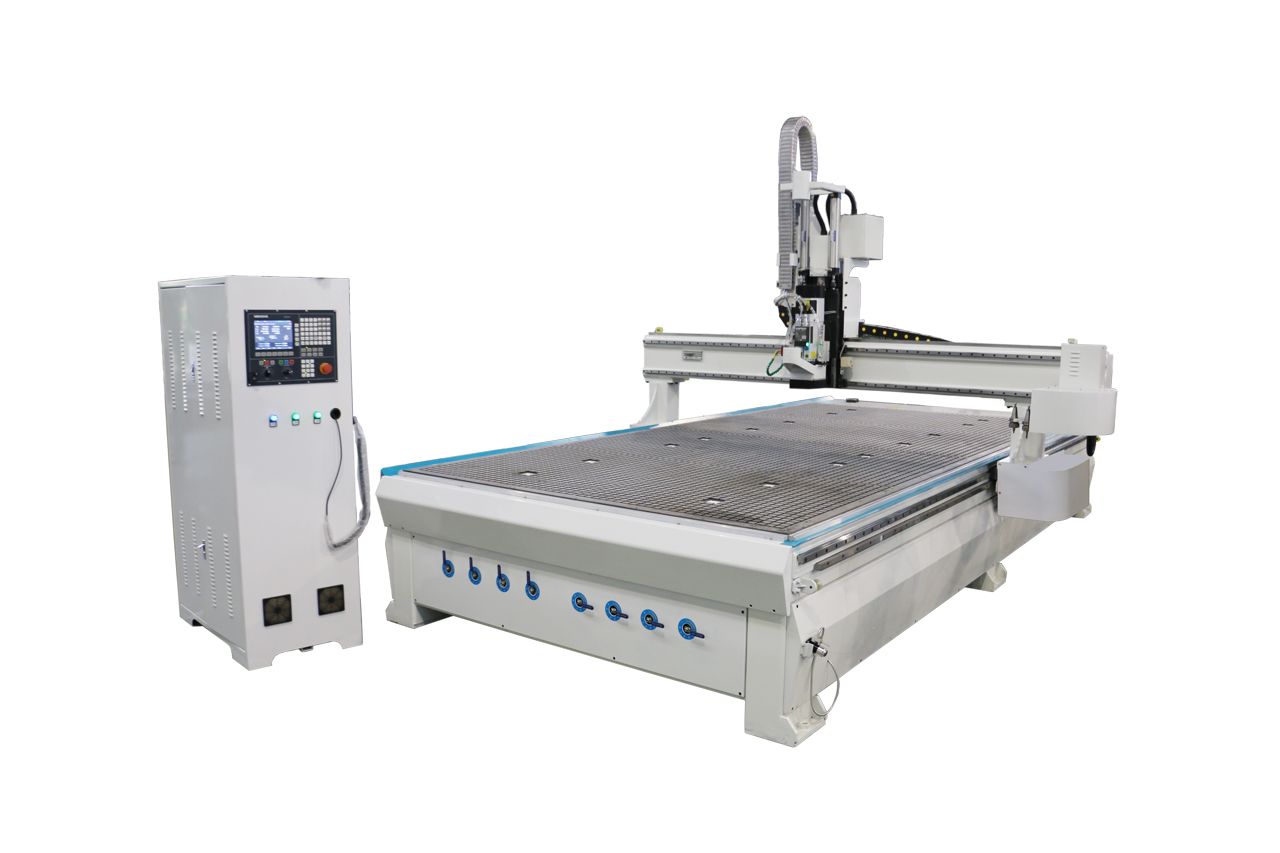

Atc-2042p-8t 2000*4000 mm Szie Automatic Tool Change CNC Router

Prod Model:	ATC-2042P-8T
Tool Change:	Automatic Tool Change
Tool Magazine:	Rotary Tool Magazine
Tool Holder:	ISO30 Tool Holder
Collet:	Er32
Controller:	Nc Studio Nk260

Product Description

We are one of the leading CNC machine suppliers in China dedicated to the manufacture of woodworking CNC router and engraving machines, cabinet making nesting based CNC router, sign making CNC router, cutting plotter, heat press which are CE, RoHS, and BV certificated.


•Features

-Stable structure
Adopting heavy type all steel structure welded body features rigidity and non deformation.
-Excellent components
Taiwan Syntec control system; Italian HSD spindle; High precision ceramic spindle bearing features low noise and long life span; Imported linear square rail, rolling ball screw features heavy loading and accurate positioning; Employing Panasonic AC servo system features large torque and remarkable safety system.
-Rorary type automatic tool changing system; Capacity of tool magazine can be eight PCS tools (different diameters of tools are available)
-Adopting powerful vacuum absorption system, the table is divided into six independent areas which can work synchronously efficiently.
-Compatible with any advanced software such as Type3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam and so on.

•Technical data

Model	ATC-1325P-12T
No.	Item		Data
1	Stroke	X	1300mm
		Y	2500mm
		Z	200mm
2	Precision	Processing accuracy	0.05mm
		Repositioning resolution	0.02mm
3	Structure	Table	6-zone vacuum hold down
		Transmission	Rack on XY axis, ball screw on Z axis
4	Speed	Max. idle speed	40000 mm/min
		Max. processing speed	X/Y:20000 mm/min  ;Z axis:15000 mm/min
5	Spindle	Power	9KW (automatic tool change)
		Speed	0~18000r/min
6	Tool magazine	Tool change cycle	5S
		Tool holder	ISO30-ER32-70L
		Tool quantity	12 tools
7	Drive motor		YASKAWA AC SERVO
8	Power supply		AC380V/50Hz
9	Command		G code/NC code
10	Controller		SYNTEC 6MB with handwheel
11	Power of vacuum pump		7.5KW
12	Power of dust collector		3.0KW
13	Dimensions		3200mm×2500mm×2000mm
14	Net weight		≈2000kg
15	Gross weight		≈2300kg

•Applications

-Wooden door, furniture and decoration field: Solid and composite material door, cupboard panel, large area board surface carving, solid wood carving and hollowing, board furniture carving, antique reproduction furniture carving, solid art fresco carving, etc.
-Wooden crafts making: Clock frame, art photo frame, thin aluminum plate crafts carving and hollowing, appliance cabinet panel, sports goods.
-Electronic field: Electrocircuit, insulation materials, LED screen, family appliance (TV, washing machine, refrigerator) shell and model carving.
-Musical instrument field: Three dimension curve surface carving, outline cutting, carving and hollowing of violin panel and head.
-EVA processing field: Carving and hollowing of VA material packing tools, medical apparatus, electronic products, carving and hollowing-out of glassware lining, etc.
