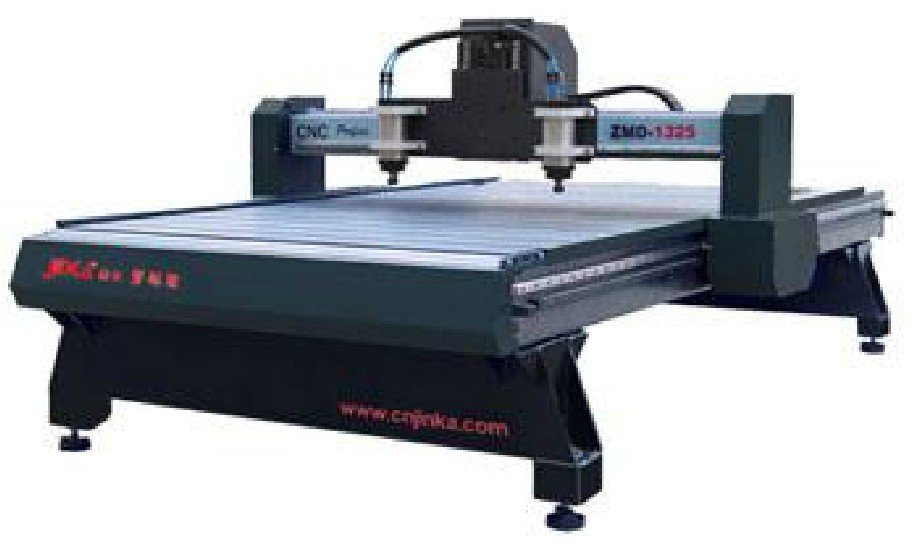

Carpentry Engraving Machine (1313 1325 2015 2025)

Prod Model:	ZMD-1325
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic:	Automatic
Type:	Woodworking Lathe
Certification:	CE

Product Description

Carpentry Engraving Machine(1313 1325 2015 2025)
1\Features
Adopting imported linear square rail ensures heavy loading, stable running, and high precision.
Gear rack transmission for all axes ensures high accuracy and abrasion resistance
Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
Employing high performance frequency adjustable constant power water cooling spindle and inverter with good performance, large torque, and high efficiency.
Fast and stable by adopting performance motor and driving motor and double motors for Y axis.
Compatible with any advanced software such as Type3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam and so on.

2\Standard configuration
NC Studio motion control system
Step driver
Frequency adjustable constant power water cooling spindle;
Linear square rail and motion slide imported from Taiwan
High quality bridge suqare steel body
Aluminium table
Gear rack transmission
Control cabinet

3\Options
Double independent Z axes or single Z axis with multi spindles (At most six PCS 1.5KW spindles)
Various of spindles
Air cooling spindle
NC Studio PCIMC 6B motion control system
DSP control system
Panasonic, Yaskawa AC servo system
Rolling ball screw (imported for option) transmit for Z axis
Dust prevention for X axis
PVC board
Manual lubricator
Dust collector
Vacuum absorption
Industrial cooling system

4\Applications
Classical mahogany furniture, European style furniture, antique reproduction furniture carving, screen hollowing-cutout, solid wood door, art craft wooden door, free of non-paint door, art craft window, various of tables, board furniture, advertising signs, scutcheon making, acrylic cutting, blister light boxes, curtain wall making, copper, aluminium, plastic board, wooden board and non metal mould.

MORE FEATHERS
1. Adopt integral iron casting machine body. Non-deformation confifured with international advanced high precision linear rail(AMT or HIWIN), more stable movement, long lifetime using
2. Driver device with high subdivision, running at high speed of 35000mm/min, can realize the synchronization of the curve line and straight line processing
3. Configured with splendid control cabinet, operate easily
4. Configured with 2.2KW-3KW inverter-driven constant power spindle motor cooled by water with the high speed, good performance, large torque, high efficiency
5. Adopt DSP controlling system, can work without computer and transimit files directly from USB flash disk with large capacity and large LCD display
6. Own functions of restoring from power off and saving from break point. And function of automatic tool sensor etc,
7. Support 9 coordinates positioning, user friendly designing
8. Compatible with Type3, ArtCam, Proe, UG and other software of CAD/CAM
9. Standard configuration of original English Type3 software from France
10. Support semi-automatic oil lubrication system, can maitain easily
11. Optional device of Panasonic servo system from Japan
