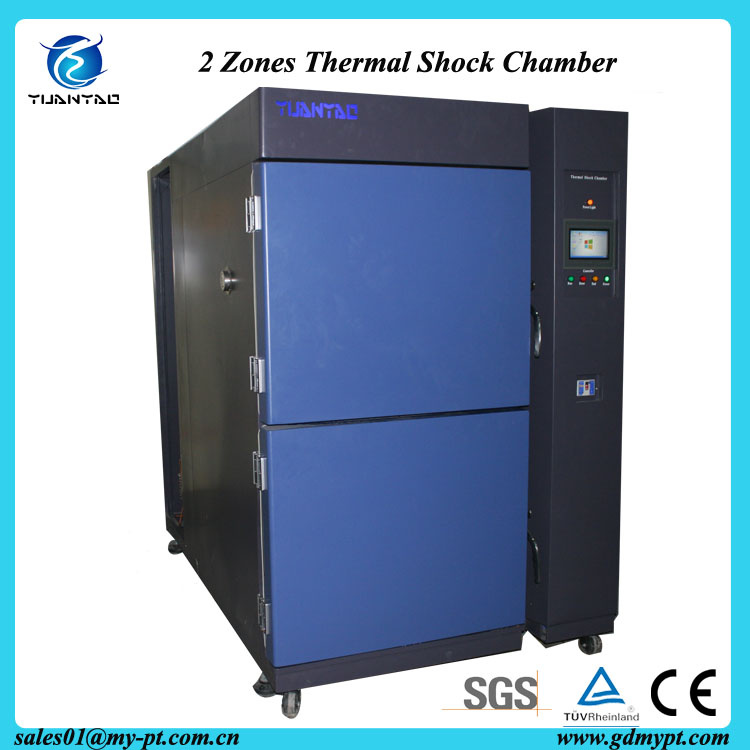

Thermal Shock Test Cabinet

Thermal Shock Test Cabinet
Price: US $ 25000-50000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: YTST-087
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Size: 500*350*500mm
External Size: 1600*2050*2220mm
Volume: 87 Liters
Preheat Temp. Range: +200 Degrees
Precool Temp. Range: -60degrees or -75degrees
Test Temp. Range: +60degrees-- +150degrees
Temp. Fluctuation: +/- 2 Degree
Temp. Recovery Time: Within 5 Mins
Interior Chamber Material: SUS#304 Stainless Steel Plate
Exterior Chamber Material: Stainless Steel Plate + Powder Coated
Type: Impact Testing Machine
Weight: 500-1000Kg
Power Source: AC380V
Oil Cylinder Position: N/a

Product Description

Thermal Shock Test Cabinet

Introduction&Application:

Thermal Shock Test Cabinet simulates the changed environment of high low temperature, which is used to detect the resistance ability of electronic, automobile, rubber, plastics, aerospace science and technology, military technology and advanced communication equipment and other products in the heat and cold conditon, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.

Feature:

1 Japan imported LCD touch controller.

2 Paperless record and display testing curve.

3 Powerful function and easy setting.

4 Cold and hot impact time in 10Mts.

5 Comply with MIL, IEC, JIS and other test standards.

6 Cold and heat shock temperature is recovered in five minutes.

7 HFC environment refrigerant.

8 Binary cryogenic refrigeration system design, fast cooling, high efficiency.

9 Best after sales service: One year free parts maintenance.

10 Meet international test standards.

11 Customization is available & welcomed.

Technical parameters:

Please see the label.

More details about the specification, please contact Angela Cheng, thanks for your attention.

Except Thermal Shock Test Cabinet, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Welcome to enquire and purchase!
Specification
ModelYTST-056YTST-087YTST-126
Internal Dim.W×H×D(mm)400×350×440500×350×500600×350×600
External Dim.W×H×D(mm)1500×2050×21201600×2050×22201700×2050×2320
Pre-heat Limt +200ºC
Pre-cool Limit  -60ºC    -75ºC
Test Temp.Range  +60ºC--  +150ºC; -10ºC--  -50ºC; -10ºC--  -65ºC
FerformanceTemperature Constancy  ±2ºC
Temp.Recover TimeWithin 5 mins
Heat-up TimeºC150150150
min303030
Pull-down TimeºC  -50       -65  -50       -65  -50       -65
min  90       90  90       90  90       90
MaterialExteriorStainless steel plate + Powder Coated
InteriorSUS # 304 stainless steel piate (Hairline Finish)
InsulationPU & Fiberglasswool
SystemsCirulationsirocofan
Heatingstripped wire heater
RefrigerationCompressor+Evaporator fins+water-cooling condenser
Controller1P
Other ComponentsExper iment separation shelves(freely adjustable 2pcs)
Sevey DevicesNo fuse breaker,Motor overload protection High/low pressure shut off device,
Open door operation prevention switch, Flow switch protector cooling water.
Power Source[K.W.]AC 1Ψ 220V;3Ψ 380V 60/50Hz
90        90  90        90  90        90
