| Prod Model: |
YCT-080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Size: |
400*500*500mm |
| External Size: |
850*800*900mm |
| Volume: |
80 Liters |
| Temp. Range: |
0 Degrees---150degrees |
| Humidity Range: |
20% Rh--98%Rh |
| Temp. Fluctuation: |
+/-0.2 Degree |
| Humi. Fluctuation: |
+/-0.5%Rh |
| Color: |
Ivory |
| Interior Chamber Material: |
SUS#304 Stainless Steel Plate |
| Exterior Chamber Material: |
Stainless Steel Plate + Powder Coated |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Desktop Constant Temperature Humidity Cabinet |
| Oil Cylinder Position: |
N/a |
Product Description

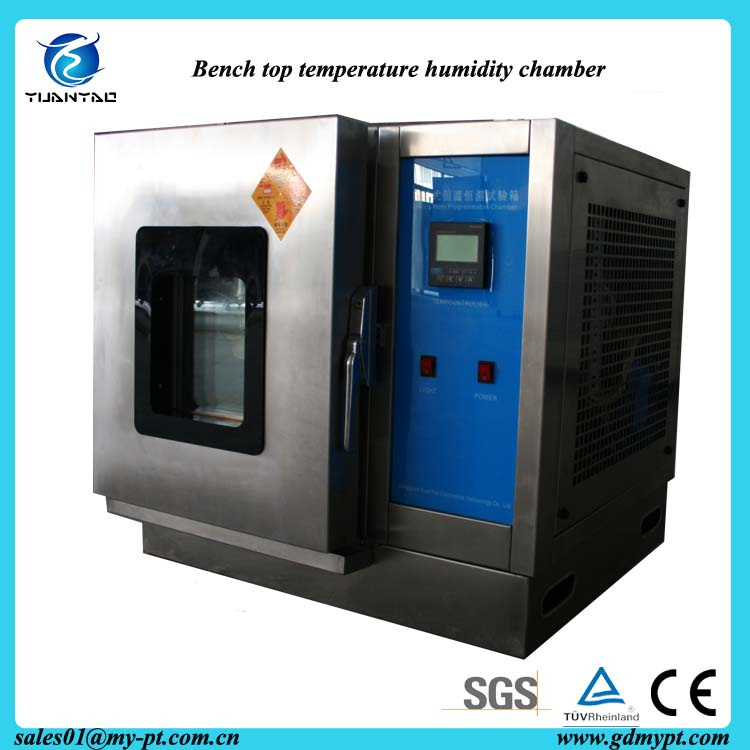

Desktop constant temperature and humidity storage cabinet(YCT-080)
Introduction&Application:
Desktop constant temperature and humidity storage cabinet ( climatic/ climate/ environment/environmental test chambers) simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from 0° C to 150° C and relative humidity ranges between 20% and 98% are available. A climate test chamber can also be used when constant climate conditions (temperature and/or humidity) are needed for product testing.
Feature:
1 Large system capacity: 120 patterns*1200 steps
2 Circulation Setting: Max. 9999 cycles.
3 PID+SSR/SCR controller.
4 Curves drawing.
5 Safety device
6 RS-232&RS-485 communication interface.
7 CE certification
8 Touch screen controller
9 Best after sales service: One year free parts maintenance.
10 Meet international test standards.
11 Customization is available & welcomed.
Technical parameters, please read below table.
More details about the specification, please contact us, thanks for your attention.
Except Desktop constant temperature and humidity storage cabinet, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
| Model | YCT-080 |
| Internal Dim.W×H×D(mm) | 400×500×400 |
| External Dim.W×H×D(mm) | 1150×1000×1150 |
| Temperature Range | 0ºC~+150ºC |
| Humidity Range | 20%HR ~98%HR |
Ferformance | Temp.&Humi Fluctuation | ±0.2ºC;±0.5%RH |
| Temp.&Humi Uniformity | ±1.5ºC;±2.5%RH |
| Indication Resolution | 0.1ºC;0.1%RH |
Heat-at
Time(20ºC~HT) | ºC | 100 150 |
| min | 30 40 |
Pull-down
Time(20ºC~LT) | ºC | 0 -20 -40 |
| min | 25 40 50 |
| Material | Exterior | Stainless steel plate+Powder Coated |
| Interior | SUS#304 stainless steel piate |
| Insulation | PU & Fiberglass wool |
| Systems | Cirulation | Siroco fan |
| Heating | SUS#304 stainless steel high-speed heater |
| Humidifying | Surface evaporating system |
| Cooling | Airtight compressor+vaporator fins+air-cooling condenser |
| Dehumidifying | ADP Critical dewpoint cooling/dehumidifying method |
| Controller | Digital electronic indicatrs+S.S.R.With PIDautomatic calculation capabilty |
| Other Components | Vacuum glass inspectin window,cable port( 60mm),control status indicator lights,chamber lamp,experment separation shelves (freely adjustable 2pcs) |
| Safety Devices | Overheating prevention circuit-breaker,compressor overload protection,control system overload protection, humidifying system overheading drying out prevention,breakdown indicator light |
| Power Source[K.W.] | AC 1¢ 220V 60/50Hz |
Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.
Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.
We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.
We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.
Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
