| Prod Model: |
TH SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE.OEM.SGS |
| Low Temperature: |
25 Degree to -70 Degree |
| High Temperatur: |
150 Dgree(200 Degree) |
| Humidity Range: |
20%~98%R.H. |
| Brand: |
Asli |
| Interior Material: |
304# Stainless Steel |
| Exterior Material: |
Stainless Steel |
| Cooling System: |
Wind Cooling or Water Cooling |
| Power: |
380V or 220V /50/60Hz |
| Compressor: |
French Tecumseh ,Germany Bitzer |
| Type: |
Heating Type |
Product Description

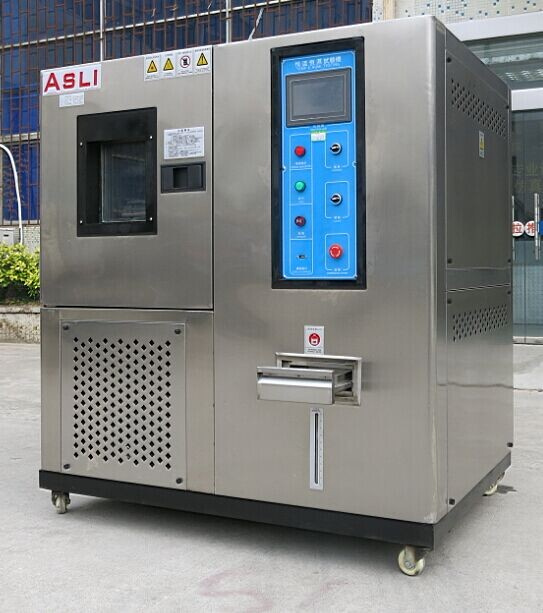

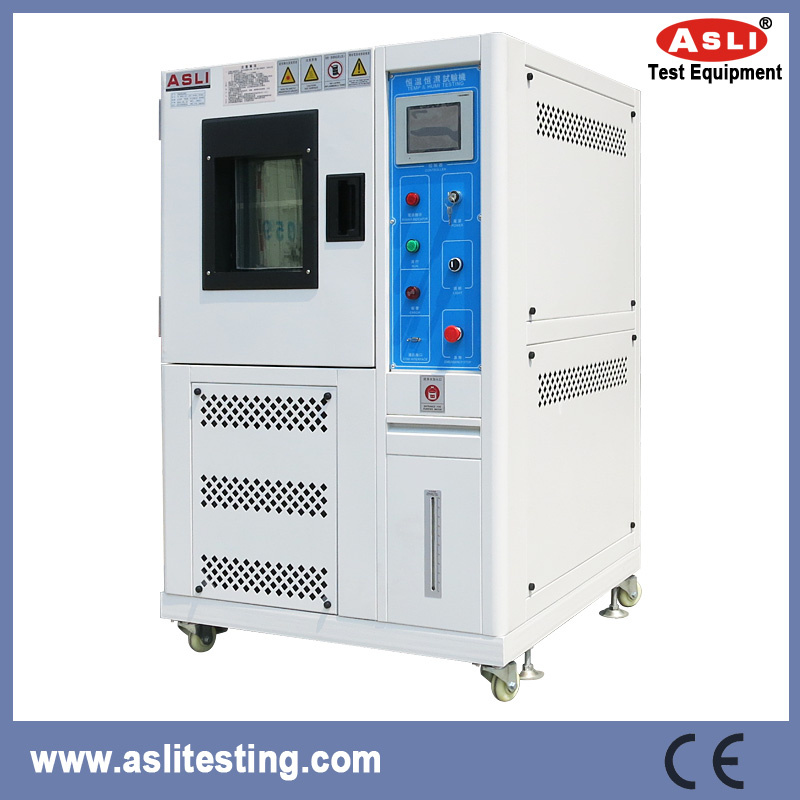

temperature cycle test chamber temperature test cabinet
temperature cycle test chamber temperature test cabinet Application: temperature cycle test chamber temperature test cabinet is also called environment testing machine, usedto test various
types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of
electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal,
food, chemical, building materials, medical and aerospace industries.
temperature cycle test chamber temperature test cabinet Features: 1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
temperature cycle test chamber temperature test cabinet Technical Parameters:| Model | TH-80(A~F) | TH-150(A~F) | TH-225(A~F) | TH-408(A~F) | TH-800(A~F) | TH-1000(A~F) |
Internal Dimension
WxHxD (mm) | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
Internal Dimension
WxHxD (mm) | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 |
| Temperature Range | Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC)
High Temperature 150ºC |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier) |
Indication relolution/
Distribution uniformity
of temperature and humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. |
Control Accuracy of
Temperature
and Humidity | ±0.5ºC; ±2.5% R.H. |
Temperature Rising/
Falling Velocity | Temperature rising approx. 0.1~3.0ºC/min ; temperature falling approx.
0.1~1.5ºC/min; ( Falling Min.1.5ºC/min is optional) |
| Inner and Outer Material | Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling, (single segment compressor-40ºC, double segment compressor -70ºC) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC220V 1∮ 3 lines, 50/60HZ , AC380V 3∮ 5 lines , 50/60HZ |
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
temperature cycle test chamber temperature test cabinet Application:1 Environmental test chamber is designed to do high temperature & high humidity, high/low temperature, or temperature
cycling test,etc, for quality inspection and assessing their quality reliability and use life.
2 Temperature & Humidity Test Chambers simulate a full range of temperature and humidity conditions.These chambers are designed for ease-of-use, reliability and performance and include many user-friendly features standard with your purchase for the best value in the industry.
3 temperature and humidity environmental test chambers are able to provide rapid product temperature change rates and use varying levels of relative humidity to locate design problems prior to shipping your products, improving product quality and reliability.
Established in 1988, ASLi (China) Test Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Programmable constant Temperature & Humidity Test Chamber, High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, aging tester, drying oven, xenon lights resistant to climate testing machine, UV resistant to climate testing machine, ozone aging test machine, sand and dust testing machine, tension tester, high and low temperature testing machine, servo carton compression tester, mechanical vibration tester and other quality testing instruments. Thanks to several decades of R&D efforts, the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement andTestingCenterand South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, ASLi (China) Test Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
