| Prod Model: |
THR Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Asli |
| Model: |
Thr Series |
| Temperature Range: |
-70~+150 Degree C |
| Humidity Range(Optional): |
20%~98%R.H. |
| Temp. Rising Speed: |
0.1~3.0degree C/Min |
| Temp.Falling Speed: |
0.1~1.5degree C/Min |
| Analytic Accuracy: |
0.1degree C; 0.1% R.H |
| Uniformity: |
±2.5degree C; ±3.5% R.H. |
| Control Accuracy: |
±0.5degree C; ±2.5% R.H. |
| Cooling System: |
Water Cooling |
| Type: |
Reliability Test |
Product Description

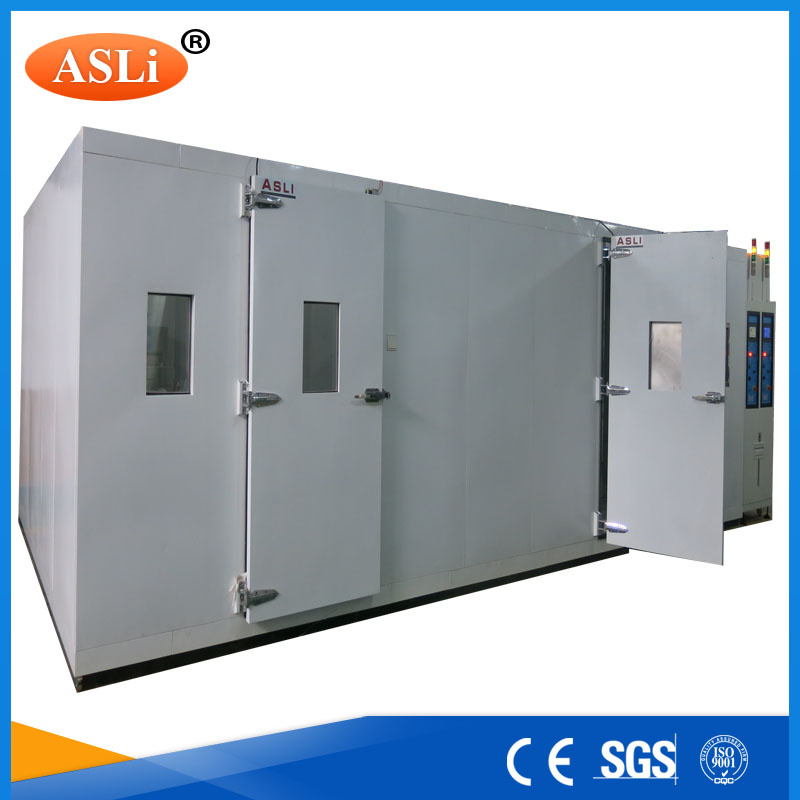

Customized Climatic Walk in Cooling Cabinet, Walk-In Temperature Humidity Chamber
Application:
Customized Climatic Walk in Cooling Cabinet, Walk-In Temperature Humidity Chamber is used to test various types of materials for their tolerances of heat, cold, dry,
Humidity. It is applied for quality inspection for all types of big test samples, such as electronic products,
Electric appliance, and products from communication, instrument, automobile, plastic, metal, food,
Chemical, building materials, medical and aerospace industries.
| Walk in Cooling Cabinet Technical Parameters: |
| Model | THR-volume (low-temperature options : A ~ F) |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree C E:-60degree C F:-70degree C )
High Temperature 80degree C (80degree C ~150degree C is optional) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need
dehumidifier) |
Indication Resolution/
Distribution Uniformity of
Temperature & Humidity | 0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H. |
Control Accuracy of
Temperature and Humidity | ±0.5degree C ; ±2.5% R.H. |
Temperature Rising/
Falling Velocity | Temperature rising approx. 0.1~3.0°C/min; temperature falling approx.
0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional) |
| Cooling System | Water cooled |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and
low voltage coolant protection switch, over-humidity & over-temperature protection
switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V(±10%),50/60HZ ,3 phase 5 Lines |
Walk-In Temperature Humidity Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane
Handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test
With interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into
The humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration
R23, R404A
6. LCD display screen, capable of displaying the set point and actual value at the same
Time
7. The control unit has the functions of multiples segment program editing, with ramp rates
Control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Walk-In Temperature Humidity Chamber Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.
