Prod Model: |
JYK-B506-1 |
Control: |
Electric |
Fcuntion No.: |
Five |
Material: |
Metal |
Type Of Hospital Bed: |
Electric Bed |
Folded: |
Folded |
Using Ambient: |
Hospital |
Certification: |
ISO13485 |
Numbers Of Function: |
Six Funtions |
Product Description

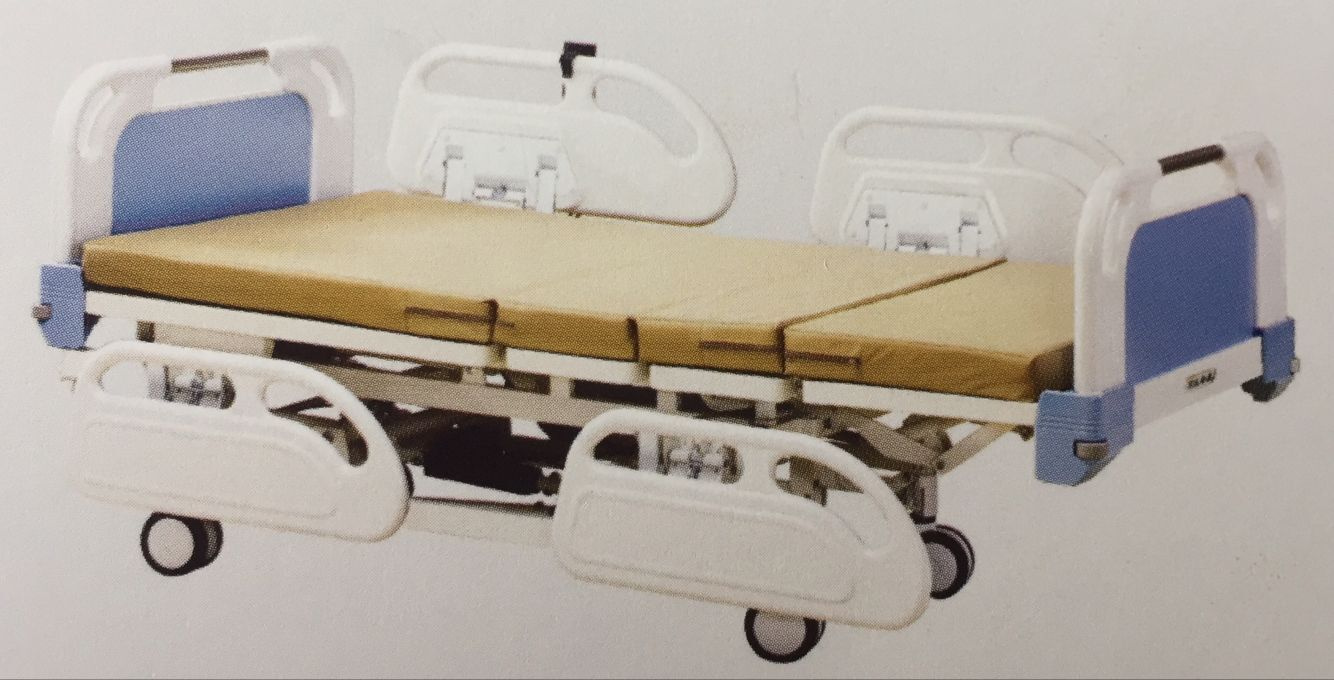

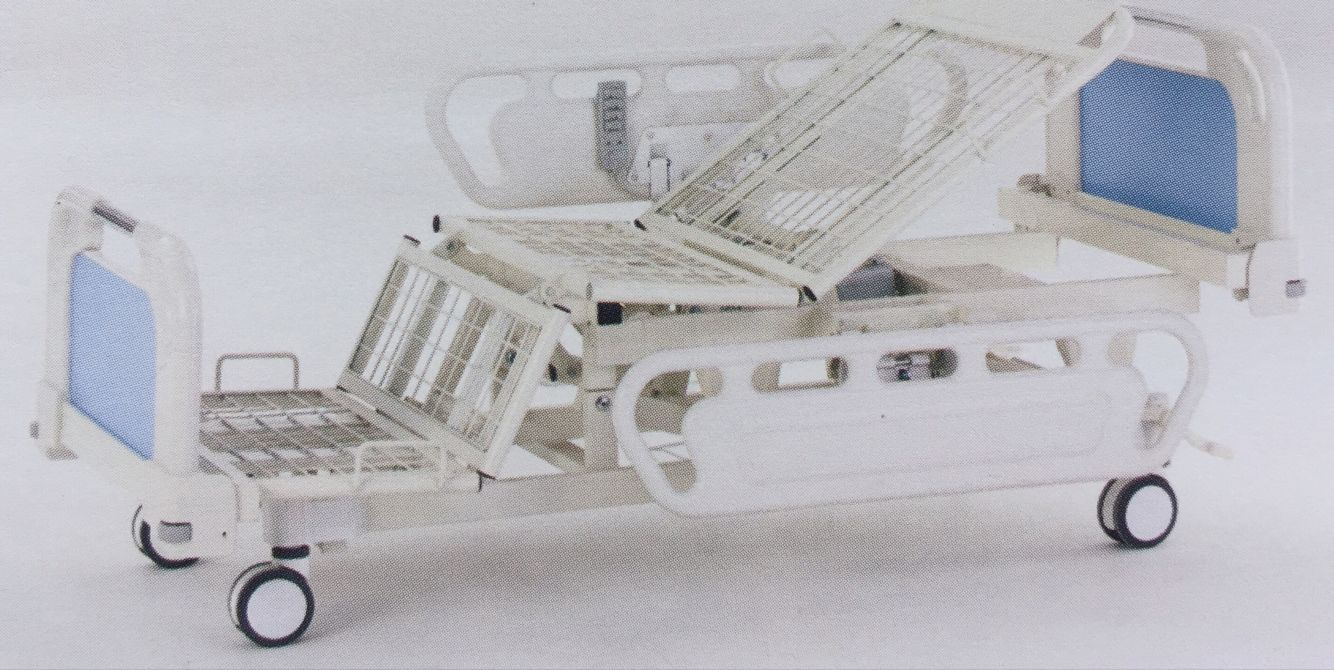

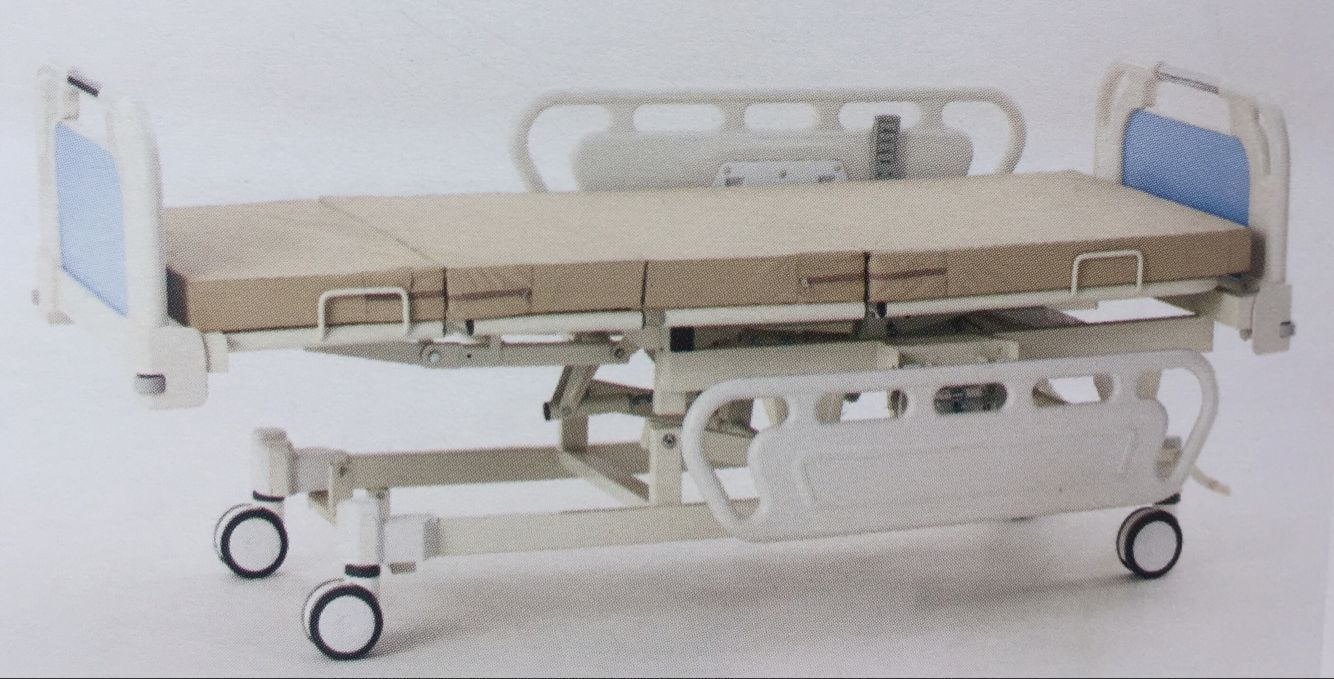

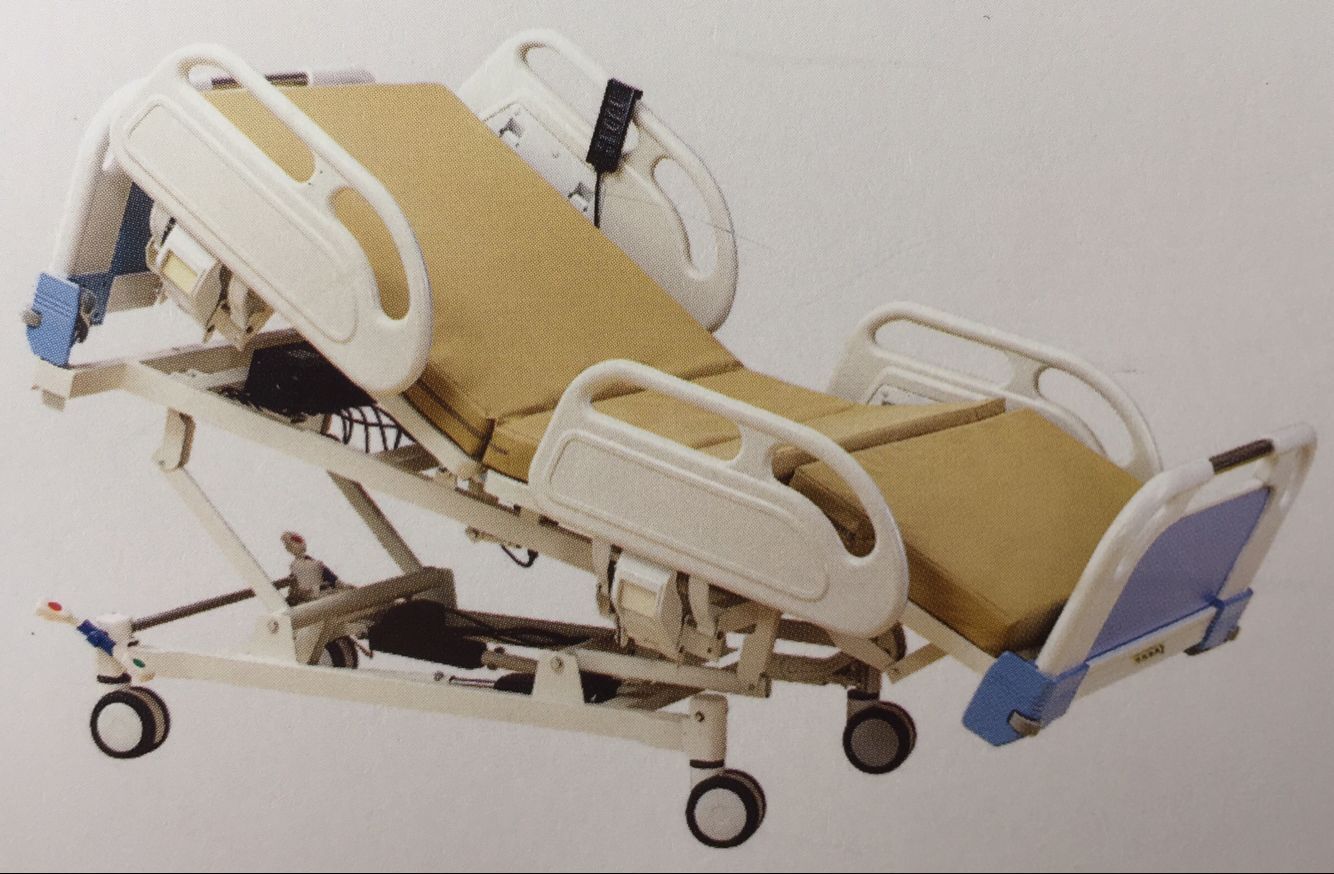

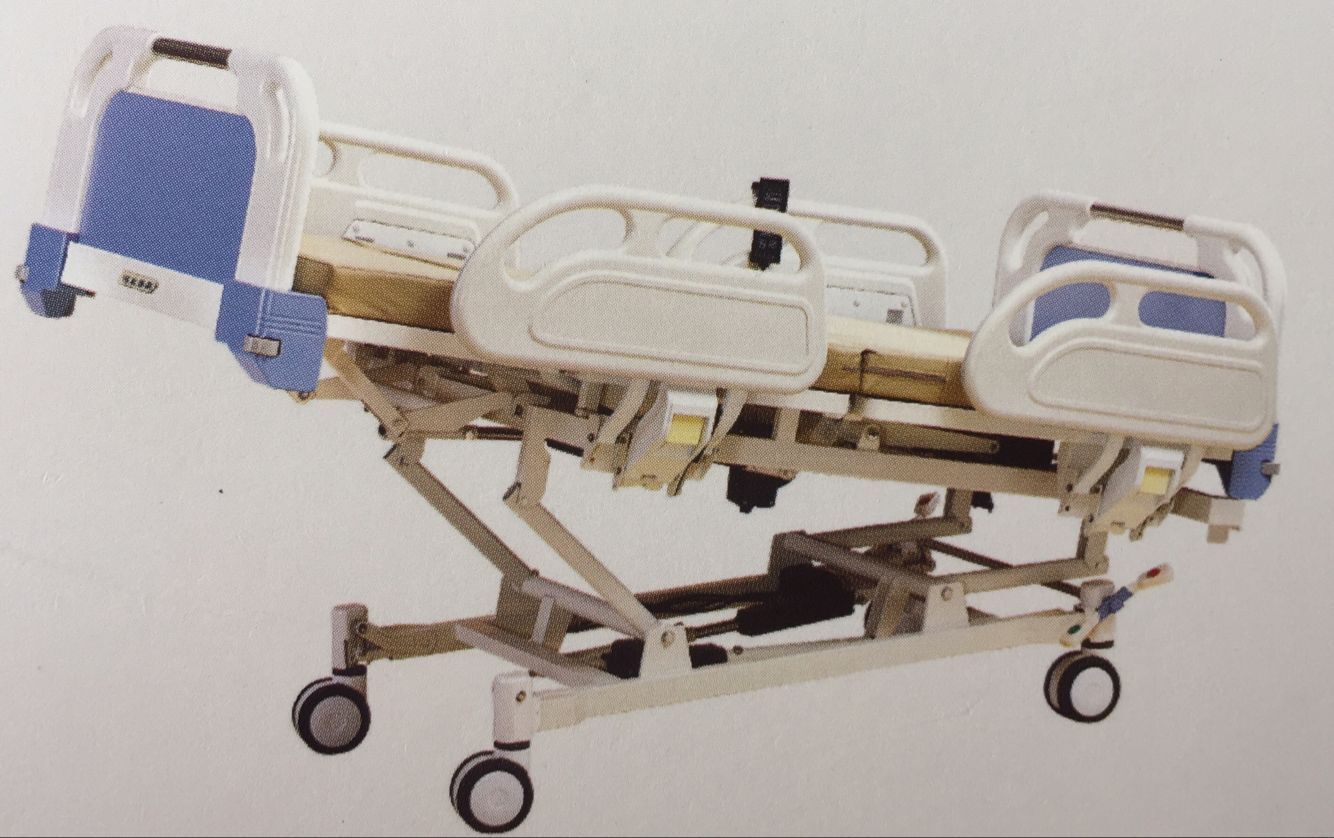

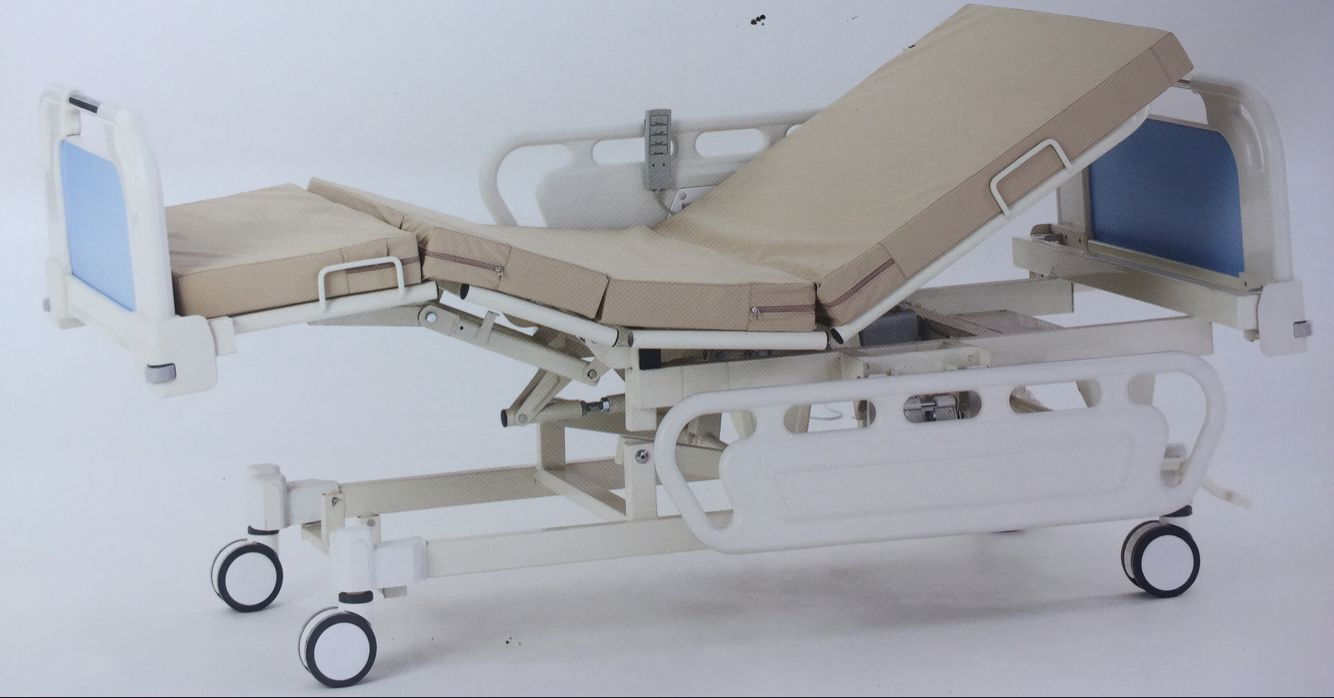

ICU Six -Function Electric Hospital Bed (JYK-B506-1)
Electric Hospital Bed Medical bed ICU bed
Model number:JYK-B506-1
Over Size: 2155mm(L)*950mm(W)*570/780mm(H)Main feature:1. the bed frame is made of epoxy coated steel , which is stable and reliable;2. high quality ABS engineer plastic head bed & side rails;3. four dia-125mm castors, with central locking system;4. six functions, which can be operated by electric motor, the details is as follow: (1)back rest:0-75±5º (2)thigh lift:0-12±2º (3) high-low:570~780mm (4) trendelenburg 15±1º (5) reverse trendelenburg 15±1º (6)seat position:0-85º5. location for IV rod in bed corners6. voltage: 110V~120V, 50HZ~60HZ or 220V~230V, 50HZ~60HZBackrest adjust | 0~75°(±5°) |
Footrest adjust | 0~40°(±5°) |
Trendelenburg and reserve trendelenburg | 0-12°(±2°) |
Adjustable height | 570-780mm |
