| Prod Model: |
JYK-B501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Electric |
| Fcuntion No.: |
Five |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Folded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO13485 |
Product Description

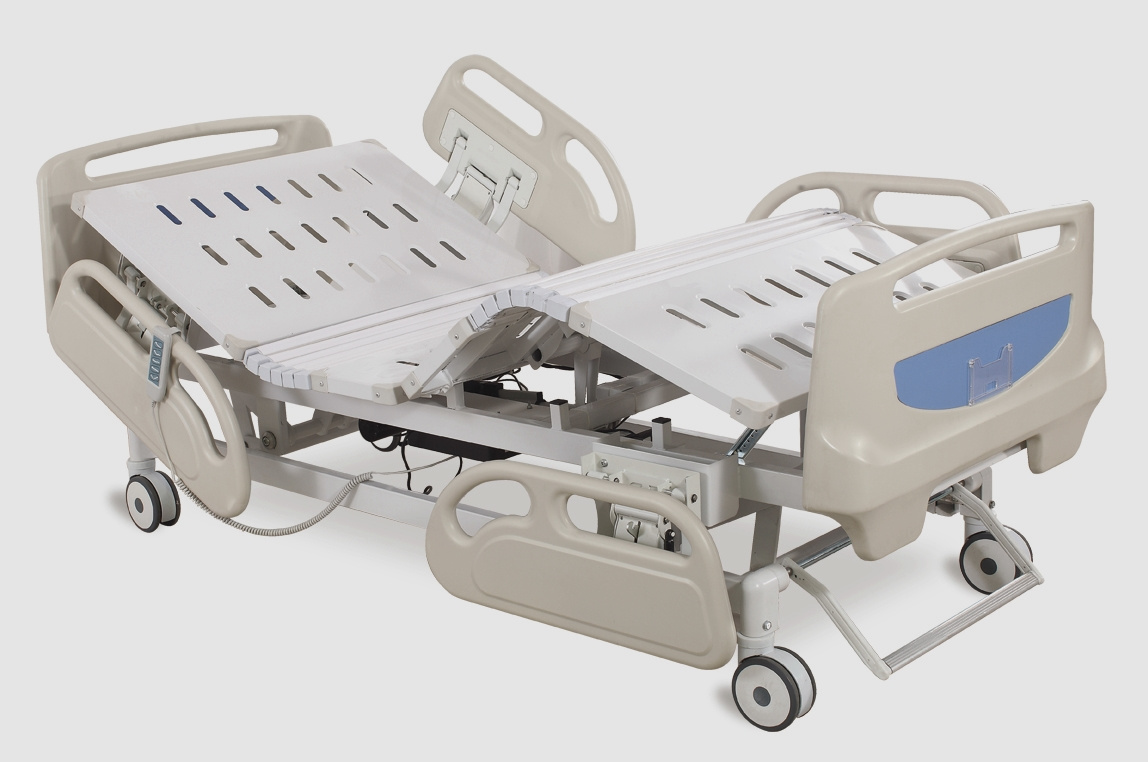

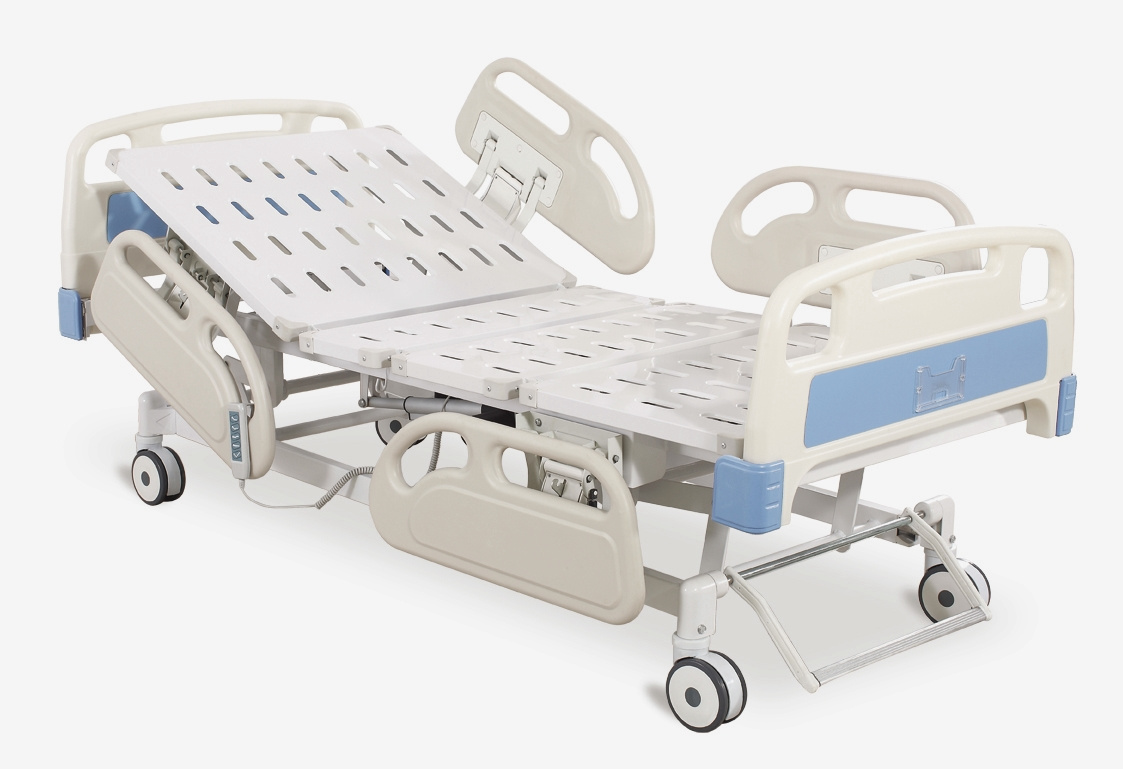

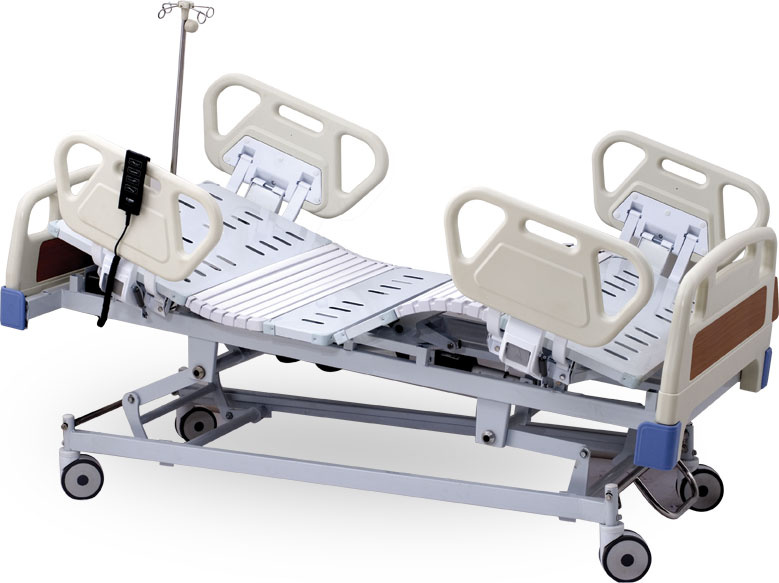

ICU Five -Function Electric Hospital Bed (JYK-B501)
Electric Hospital Bed Medical bed ICU bed
Model number:JYK-B501
Size:2160*1050*460~720mm
Gross weight:110KG
Net weight:108KG
Packing size:
Material:Steel electrostatic spraying frame +ABS Head & Foot boards
Standard accessories:Four 5" luxurious castors with central-controlled brake system,4 pieces of PP side rails,1 set of detachable ABS Head & Foot boards,2 Urine hooks,1 set of MOTECK motors
Features:
1)Cold steel plate wholly molded surface
2) )integrated stamping frame and treated with eletrostativ spraying ,anti-aging and anti-rust.
3)Beautiful design bed headboard and footboard made of ABS
4)4pcs PP automatic lifting side rails .
5)4pcs electro-motor ,1pc control box ,1pc handset .
6)2 Urine hooks
7)Four wheels adopt central control system ,which is stable and reliable
8)Has been assessed and conform as to the standard of ISO13485:2003,CE
9)Max Loading: 250kgs
Dimensions:
1)Product Size:2200*1050*460~720
2)Backrest adjust :0~75°(±5°)
3)Footrest adjust :0~40°(±5°)
4)Trendelenburg and reserve trendelenburg:0-12°(±2°)
5)Adjustable height:450-720mm
Optional accessories:
1)I.V. Pole
2)Mattress
3)Over bed table
4)Shelf
5)Back-up battery
6)Bedside locker
7)LINAK Motors
8)Quick fold down system(CPR)
| Backrest adjust | 0~75°(±5°) |
| Footrest adjust | 0~40°(±5°) |
| Trendelenburg and reserve trendelenburg | 0-12°(±2°) |
| Adjustable height | 450-720mm |
