Prod Model: |
JYK-B502 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2120*900*450/700 |
Suitable Place: |
Hospital |
Control: |
Electric |
Quality Lever: |
High |
Material: |
Metal |
Type Of Hospital Bed: |
Electric Bed |
Folded: |
Unfolded |
Using Ambient: |
Hospital |
Numbers Of Function: |
Five-function |
Certification: |
ISO13485 |
Product Description

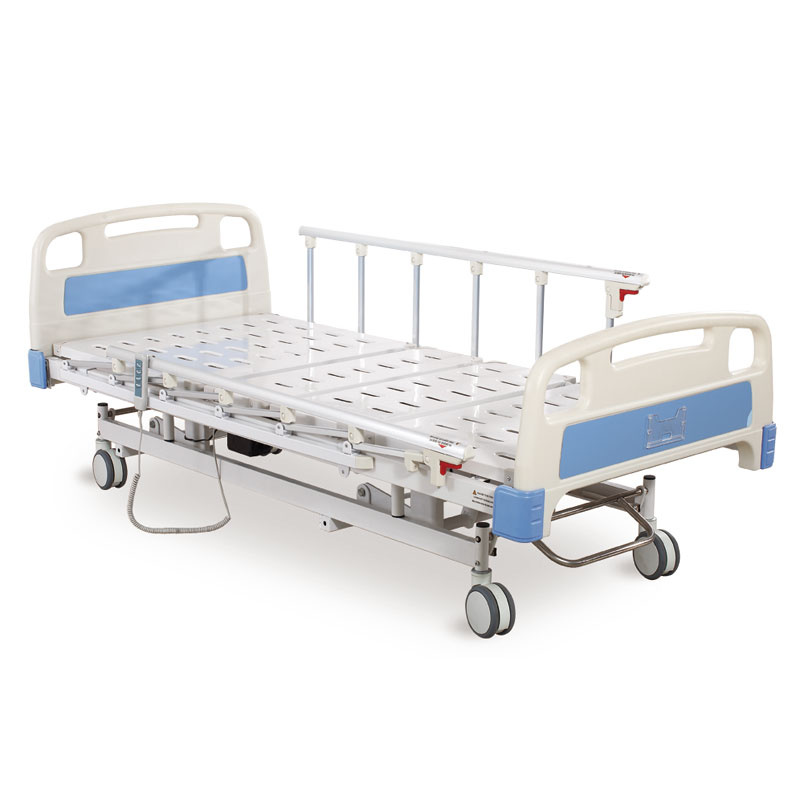

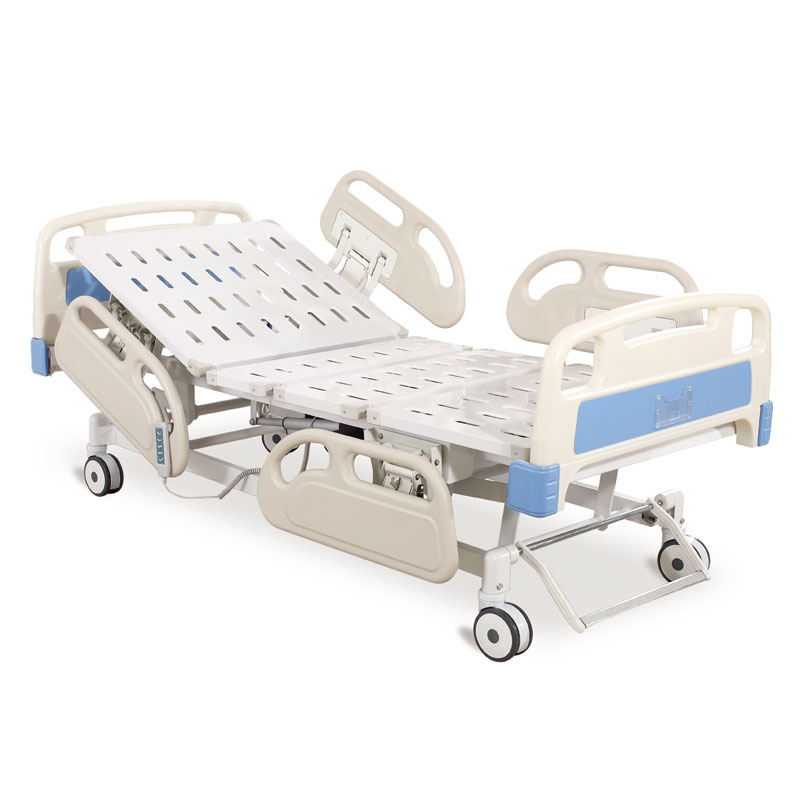

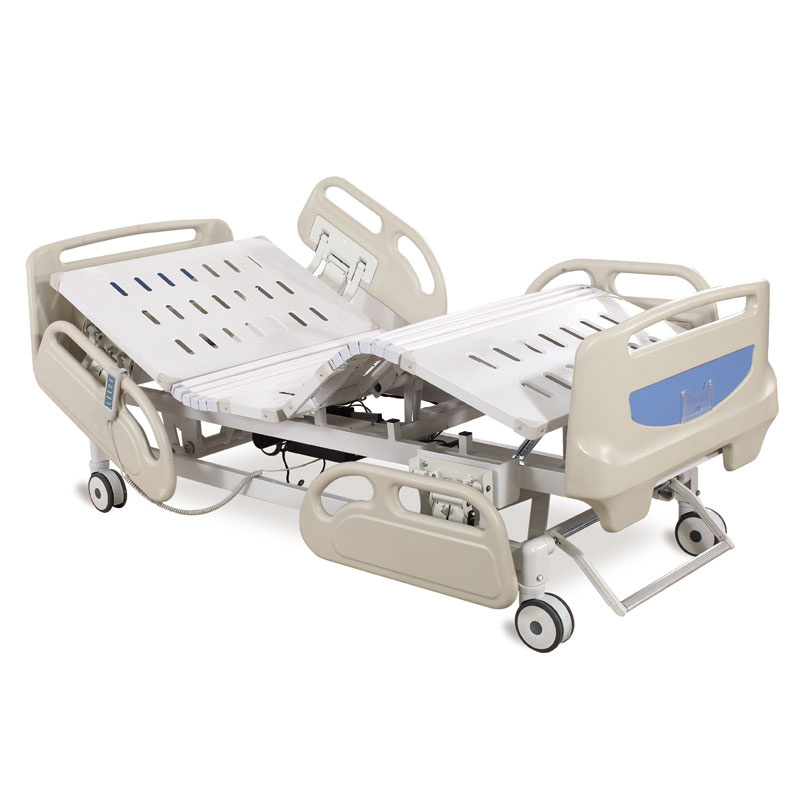

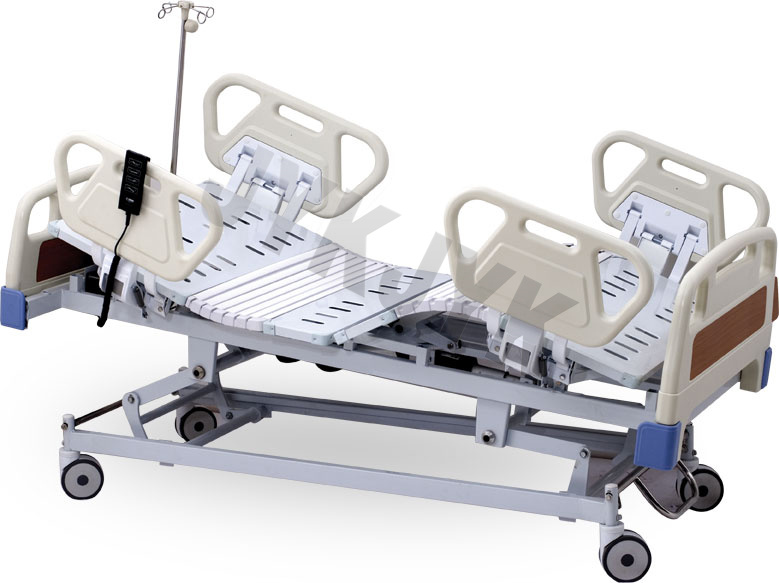

ICU Five -Function Electric Hospital Bed (JYK-B502)
Electric Hospital Bed Medical bed ICU bed
SPECIFICATION: 2120*900*450/700mm
Integrated stamping frame and mattress base are steel made with epoxy. Polyester powder coated & baked finish, resistant to chipping and scratching. Bed head/foot board are made of ABS plastic. Bed base steel sheet thinkness 1.2mm
FUNCTION:
Height adjustable from 450 to 700mm;
Back-rest lifting angle is 0-80 (+/-5)
Knee-rest lifting angle is 0-40 (+/-5)
Trendelenburg & Rev. Trendelenburg are 12
STANDARD ACCESSORY:
Motors: 4 PCS imported from Taiwan
Bed board by link of soft: 1 set
PP side rails: 4 PCS
Luxurious central locking castors: 4 PCS
Urine hooks: 4 PCS
I. V. Drip holes: 4PCS
I. V. Stand. 1pc
motor no. | 4pcs |
backrest | 0-80 degree |
footrest | 0-40 degree |
Hi-Low adjustment | 450-700mm |
trendelenburg and Rev. Trendelenburg | 12 degree |
