| Prod Model: |
YEV-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
2-4000Hz |
| Max.Vibration Force: |
200kg.F |
| Max.Displacement: |
25mmp-P |
| Max.Acceleration: |
80g |
| Max.Speed: |
150cm/S |
| Size(Mm): |
675*560*660 |
| Cooling Way: |
Air Cooling |
| Warranty: |
12 Months |
| Max.Load: |
65kg |
| Excitor Weight: |
250kg |
| Type: |
Vibration Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC220V |
| Oil Cylinder Position: |
N/a |
Product Description

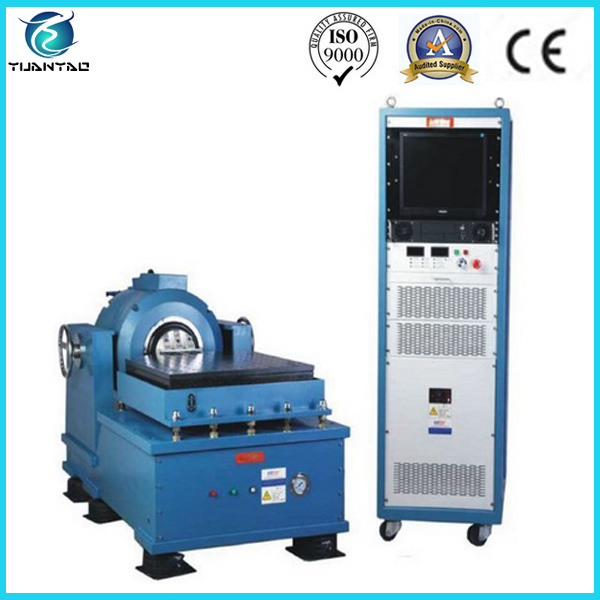

Simple Lab Vibration Shaker Table
1Frequency range: 2-4000Hz
2Maximum acceleration: 80G
3Good quality
4150 cm/s
5Resonable price
Application
Vibration test chamber is to the fields of communications, electronics, appliances, transportation, household appliances. According to the customer's needs.
Package ad delivery
Packaging: Strong wooden cases, meet the international standard.
Delivery: In 15-20 working days.
Specification
1. High performance
2. New design, resonable price
3. Warranty: 12 month
4. Low resistance and high performance
Feature
1. The stay magnetic field of the vibration generator is little. This stray magnetic field doesn't disturb the test sample which are sensitive to magnetic field.
2. Utilizing the computer on line control and inputting data for immediate storage facilitate the control effectiveness and the control curve display.
3. The mass of armature is light. The stiffness of armature is high. The axial resonance frequency of armature is over 4000Hz
| Model | YEV-11 | YEV-12 | YEV-13 |
| Exciter Model | GV100/25 | GV200/25 | GV300/25 |
| Frequency range (Hz) | 2-4000 | 2-4000 | 2-4000 |
| Max Eciting Force (kg.f) | 100 | 200 | 300 |
| Max Displacement (MMP-p) | 25 | 25 | 25 |
| Max Acceleration (G) | 40 | 80 | 80 |
| Max Speed (cm/s) | 150 | 150 | 160 |
| Payload (kg) | 65 | 65 | 110 |
| Moving Coil Mass (kg) | 2.5 | 2.5 | 4 |
| Circumference of the movable ring(mm) | 140 | 140 | 150 |
| Exciters Weight (kg) | 220 | 250 | 240 |
| Dimensions (LWH) mm | 675×560×660 | 675×560×660 | 675×560×660 |
| Power amplifier Model | SA1K | SA2K | SA3K |
| Power developed weight (kg) | 210 | 210 | 250 |
| Cooling method | 210 | 210 | 250 |
| Power Amplifiers Size (L×W×H)(mm) | 720×545×1625 | 720×545×1625 | 720×545×1625 |
| Power Source[k.w] | AC 1Ψ 220V/50Hz; 3Ψ 380V 50Hz |
Except Vibration test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

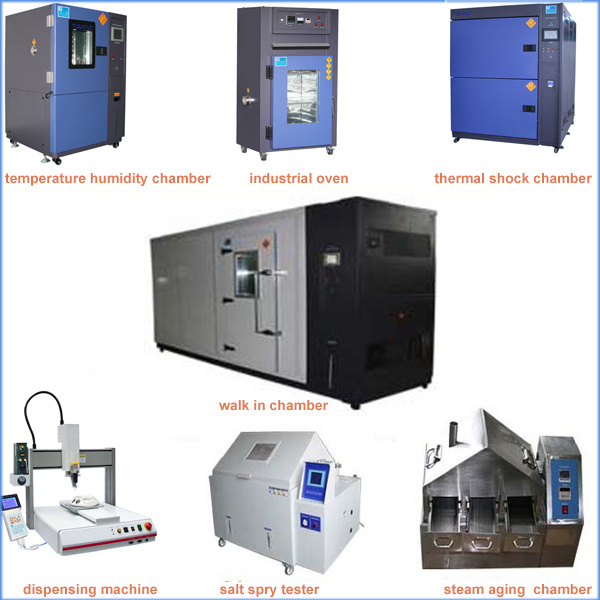

Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.
If you are interested in the items, please contact me soon.
