| Price: | US $ 3000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | YPO-480 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: | Room Temperature 10degrees to 300degrees |
| Heating Up Time: | 30 Minutes |

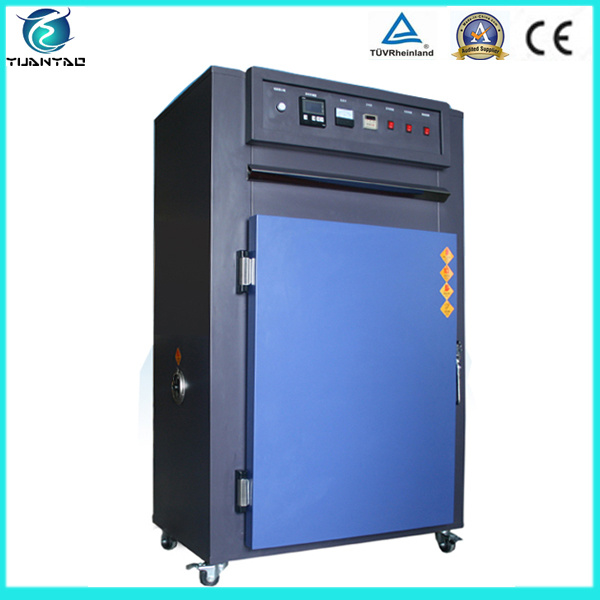

| Product Name: | Laboratory Drying Cabinet |
| Temperature Uniformity: | +/-1degrees |
| Warranty: | 12 Months |
| Certificate: | CE Certificate |
| Power Supply: | AC 3 Phase 380V 60/50Hz |
| Inne Chamber Size W*H*D: | 800*1000*600(mm) |
| Controller: | Omron E5az Controller |
| Weight: | 100-500Kg |
| Power Source: | AC380V |
| Type: | Hot Air Dying Oven |
1.Microcomputer electronic digital Omron(Japan imported)controller, easy operation,
high precision.
2. High temperature endurance&non-aging.
3. Equipped with casters and feet helps users to move the oven.
4. Forced circulation air, the temperature rise fast, even distribution.
5. PID control, double overheating protection, safety and reliability.
6. Two groups of moving plates can be adjusted height.
7. Meet international test standards.
8. Customization is available & welcomed.
9. Best after sales service: One year free parts maintenance.

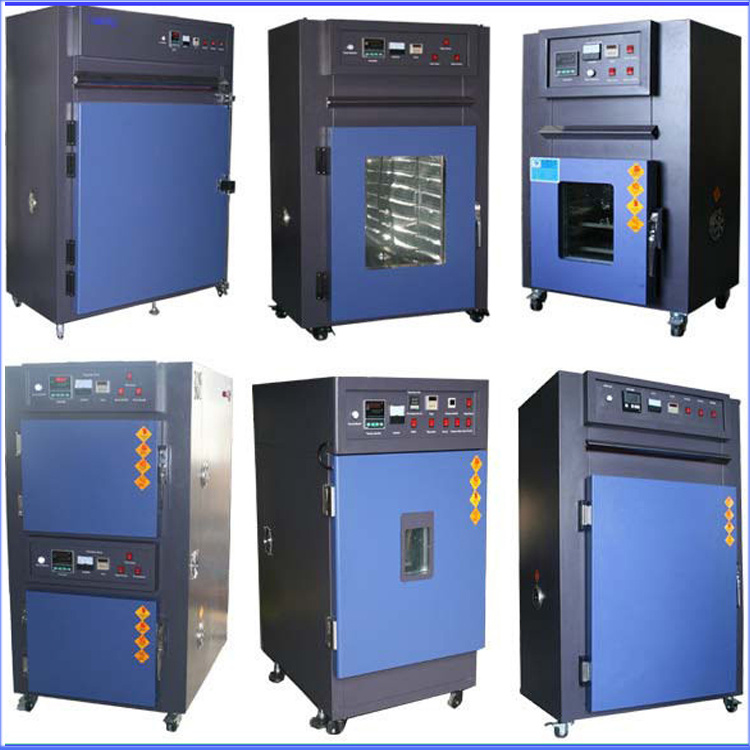

Specification| Model | YPO-072 | YPO-270 | YPO-480 | YPO-600 | YPO-720 | ||||||||
| Inner chanber size W*H*D(mm) | 400*450*400 | 600*900*500 | 800*1000*600 | 1000*1000*600 | 1200*1000*600 | ||||||||
| Exterior chanber size W*H*D(mm) | 750*1100*550 | 1150*1650*740 | 1300*1700*840 | 1500*1750*840 | 1850*1750*840 | ||||||||
| Temperature Range | Room temperature 10ºC ´ 200ºC(300ºC) | ||||||||||||
| Performance | Temperature control accuracy | ±0.3ºC | |||||||||||
| Temperature uniformity | ±1ºC | ||||||||||||
| Temperature resolution | 0.1ºC | ||||||||||||
| Clean class | Class100´class1000 | ||||||||||||
| Heat-up time | 30minutes | ||||||||||||
| Material | Exterior chamber material | Stainless steel plate+Powder Coated | |||||||||||
| Interior chamber material | SUS#304stainless steel plate | ||||||||||||
| Filters | HEPA Filters | ||||||||||||
| Insulation | PU & Fiberglass wool | ||||||||||||
| System | Wind Circulation | Sirocco fan | |||||||||||
| Heating system | SUS#304 stainless steel high-speed heater | ||||||||||||
| Controller | Omron E5AZ controller | ||||||||||||
| Other components | cable port(60mm),control status indicator lights,loading shelves(2pcs for free) | ||||||||||||
| Safety Devices | Overheating circuit-breaker, compressor overload protection, control system overload protection,humidifying system overheating protection, breakdow indicator light | ||||||||||||
| Power supply | AC380V 60/50Hz | ||||||||||||
| Customization | Customization of inner chamber size, temperature & humidity range etc. | ||||||||||||

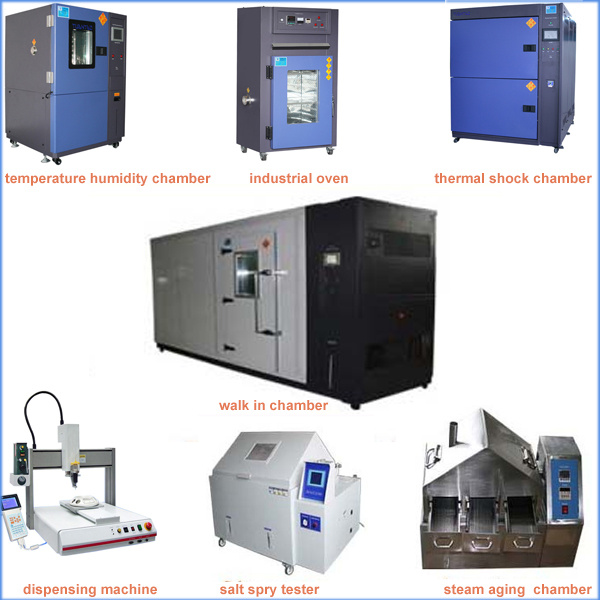

Beside industrial drying heating cabinet ,we are also supply temperature and humidity test chamber,Thermal shock chamber, Temperature & humidity Control Host, Ozone test chamber, Salt Spray Tester, Walk In environmental Testing Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, etc.
If you are interested in temperature and humidity test chamber, please kindly contact Hedy Hua for more information.
